Lifeline Claw Busch Pump
Manufacturer: Busch
Category: Vacuum Pumps (bare pumps)

Documents & Manuals: View or Download

Equipment Description

The Lifeline Claw (Busch) vacuum pump is an oil-free, dry-running claw pump used in BeaconMedaes central medical vacuum systems. It requires no seal water or lubricant, providing clean vacuum with reduced maintenance and environmental impact.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Standard Pumps - Service Kits
HPACFMModel
Number		HAT AlarmHAT ShutdownRelief Valve
Setting		6 Month1 Year Basic10,000 Hour Oil
DatumTempDatumTemp
244MM11042110240F2142250Fn/a4107 4001 154107 4001 17
357MM11442110240F2142250F
479MM11022110240F2142250F
5.4103MM11422110240F2142250F
6.4135MM12022389340F2414350F25.5"Hg *4107 4001 164107 4001 18
7.5165MM12522389340F2414350F24"Hg *
8.7200MM13222389340F2414350F24"Hg *
10230MM13202389340F2414350F4107 4014 83
10277MM14022389340F2414350F
15325MI15022560415F2581425F4107 4001 144107 4001 18
15353MM15022389340F2414350Fn/a4107 4014 83
* Effective June 20, 2016 starting with s/n U162300112

O2 Assured Pumps - Service Kits
HPACFMModel Number6 Month1 Year Basic10,000 Hour Oil
244MM1104-O2n/a4107 4001 194107 4001 21
357MM1144-O2
479MM1102-O2
5.4103MM1142-O2
6.4135MM1202-O24107 4001 204107 4001 22
7.5165MM1252-O2
8.7200MM1322-O2
10230MM1320-O2
10277MM1402-O2
15325MI1502-O24107 4001 25
15353MM1502-O2n/a

Reference Material

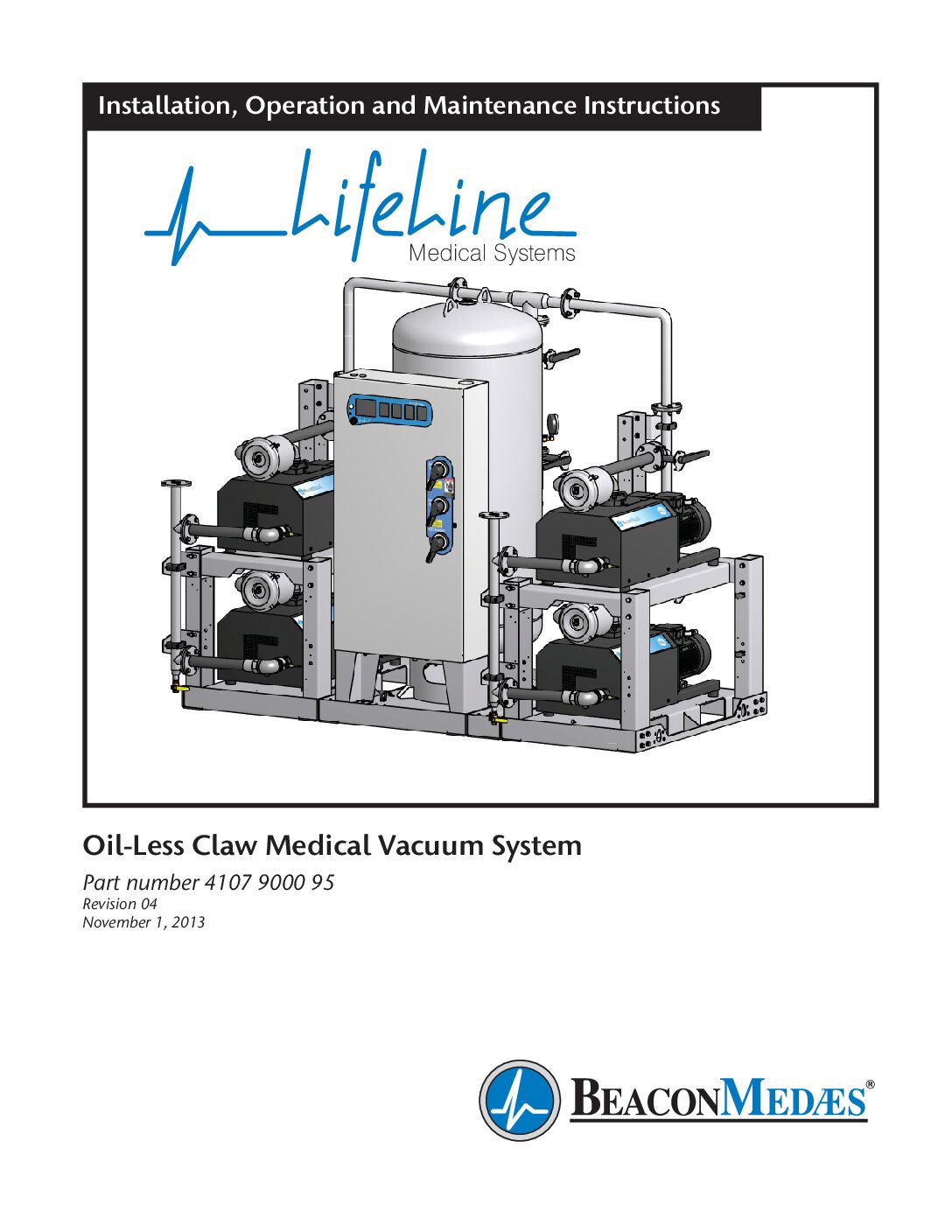

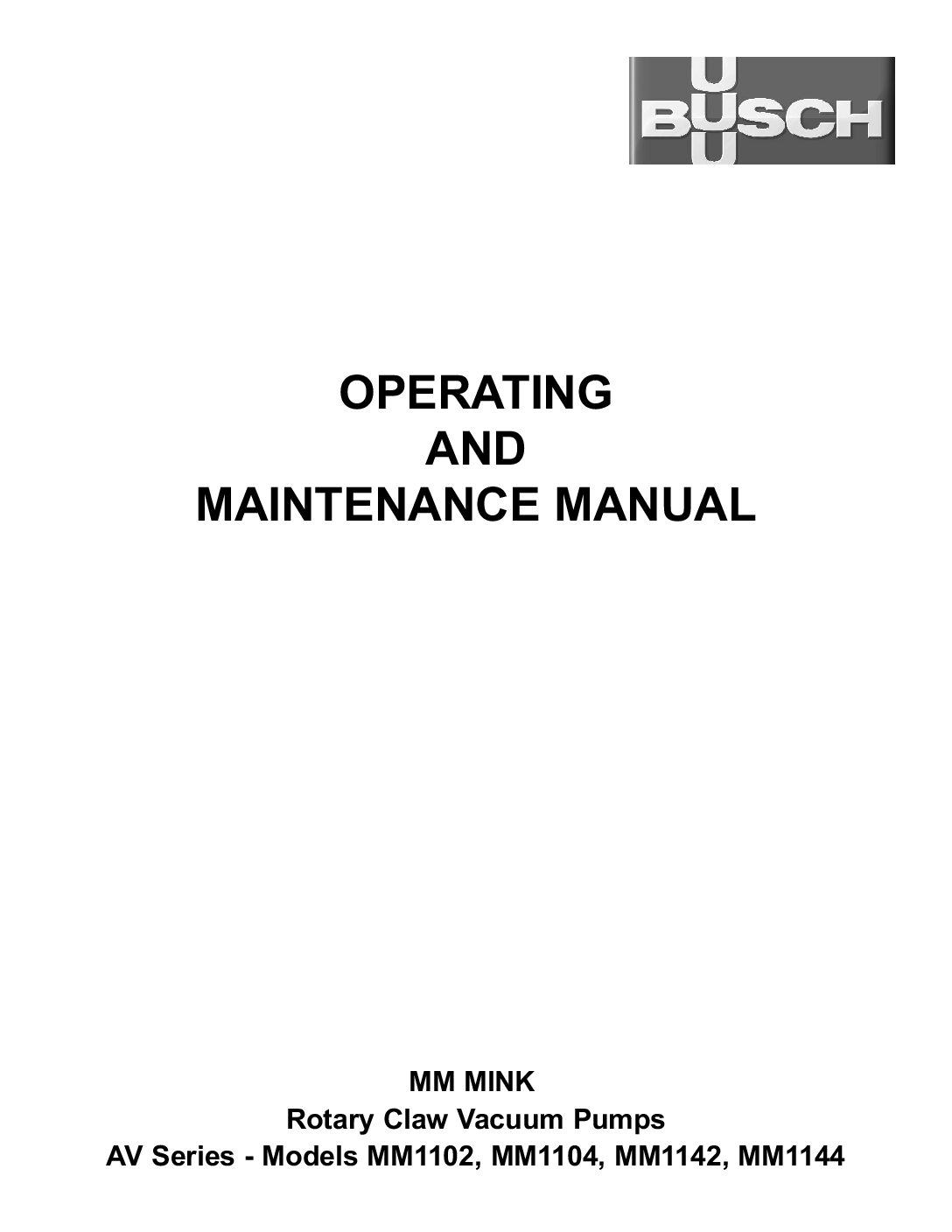

4107 9000 95January 25, 2016Rev 05O&M Manual
4107 9004 08

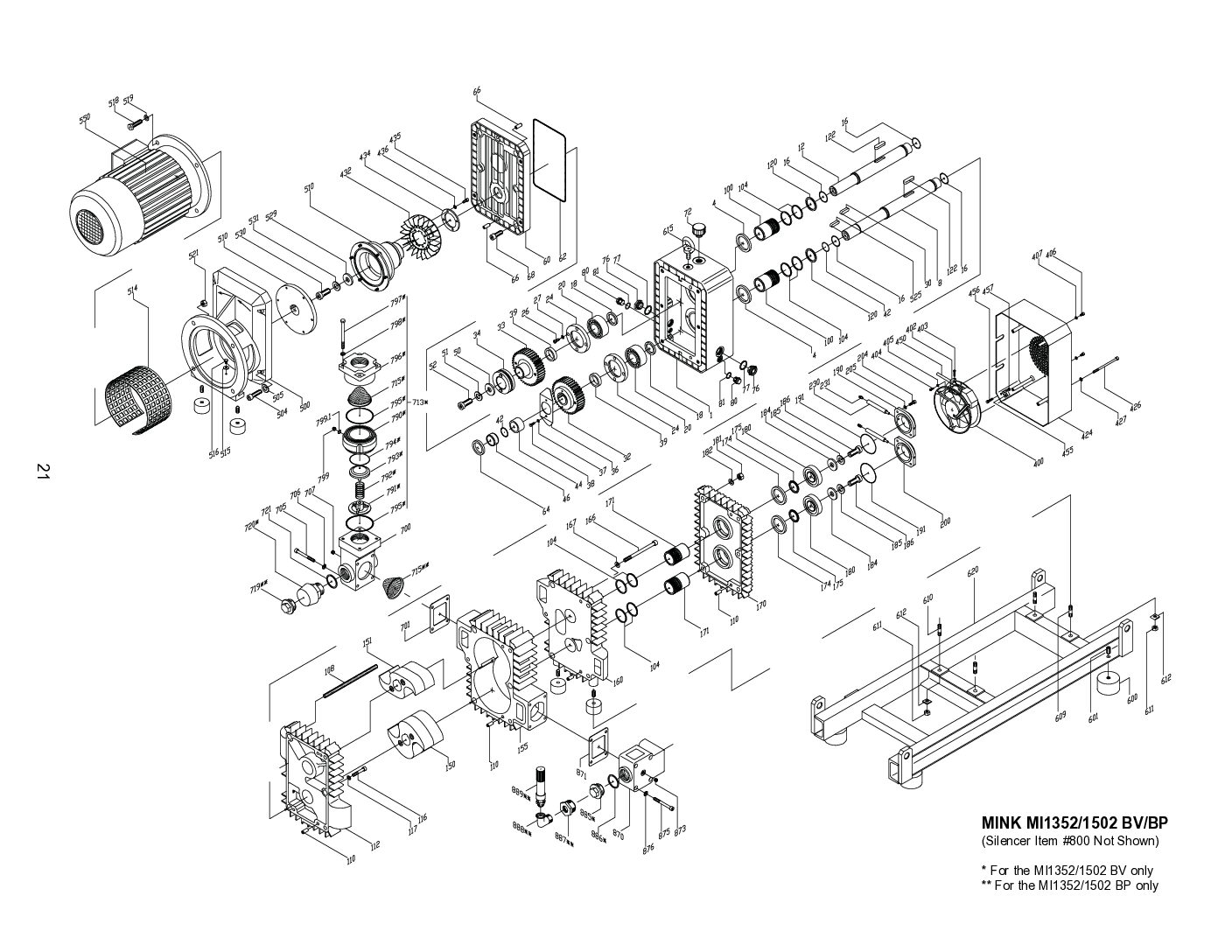

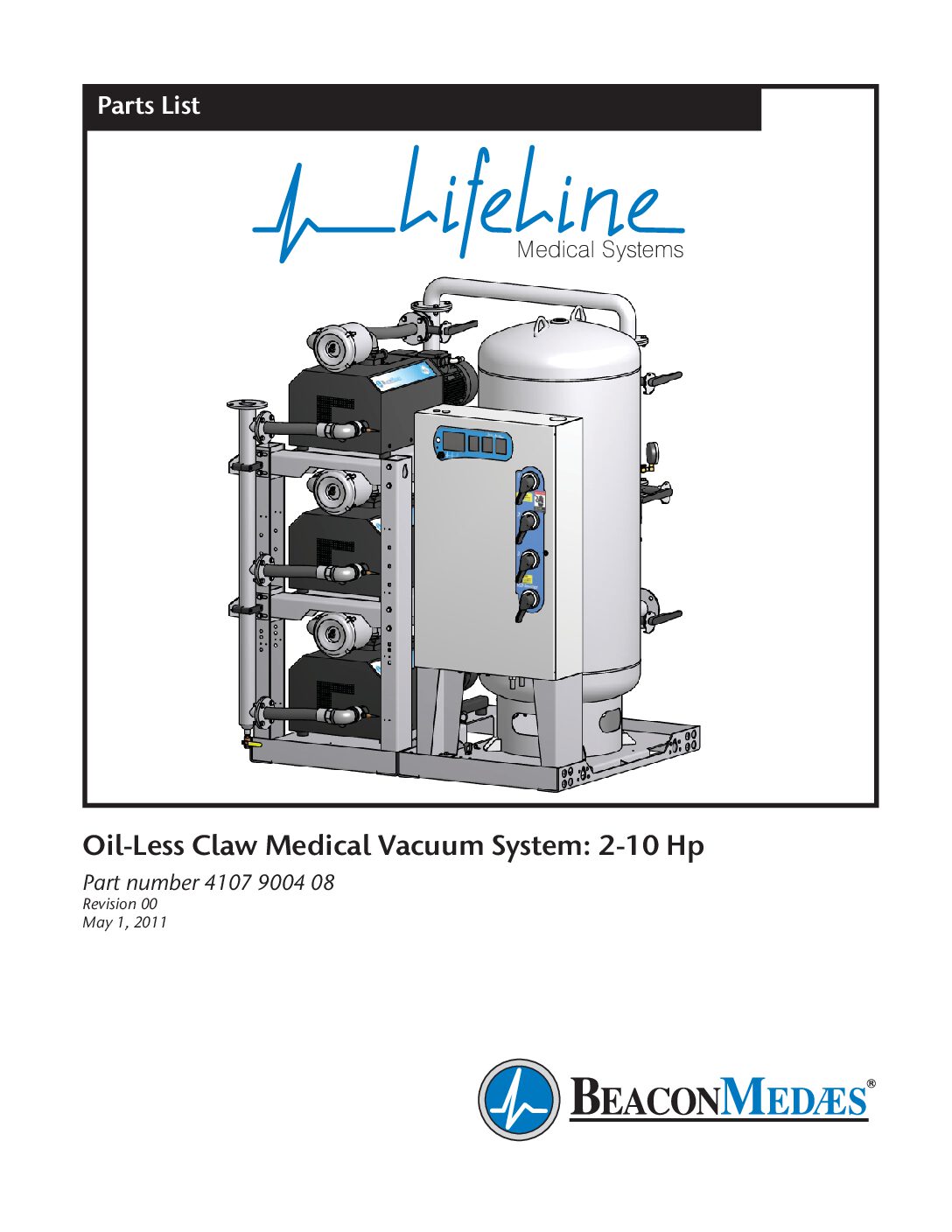

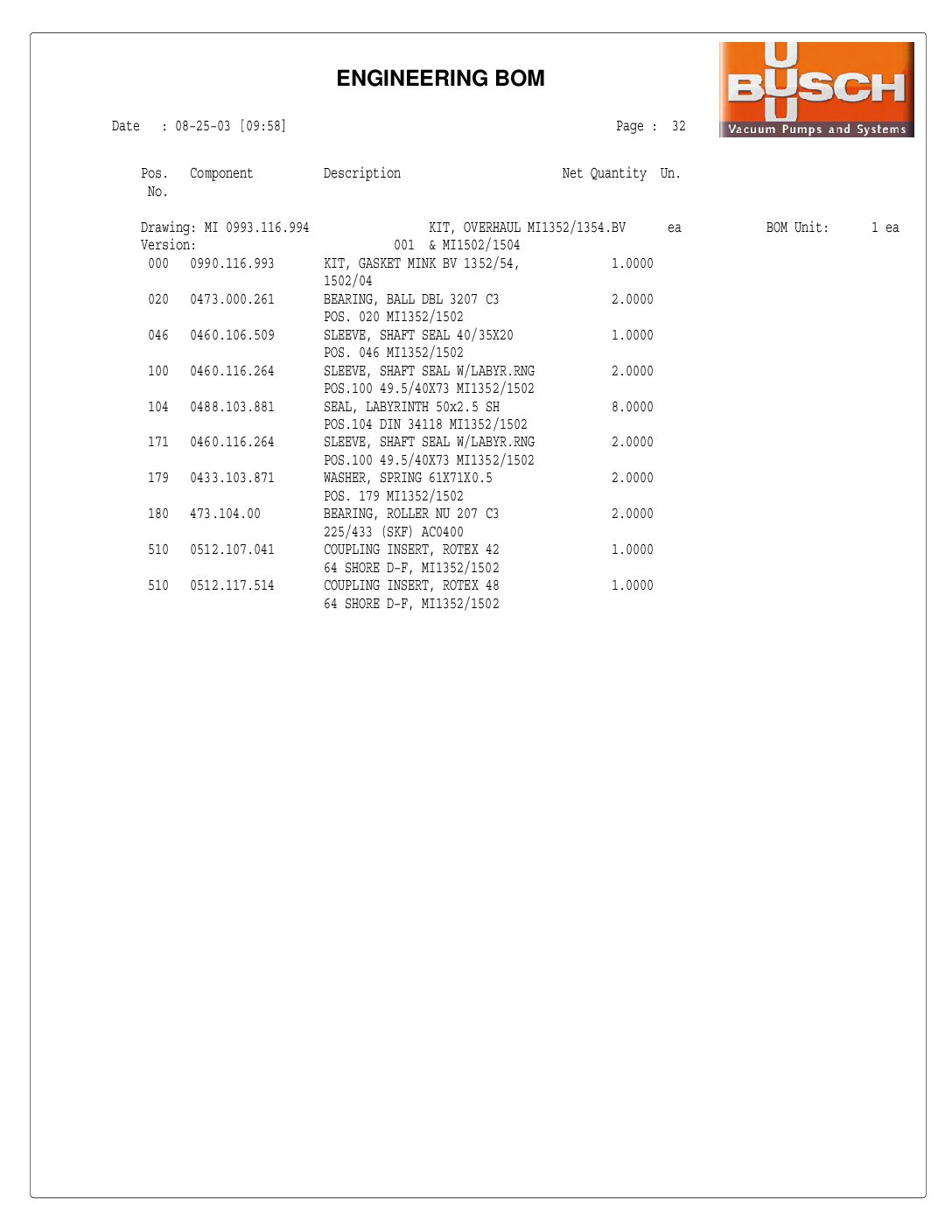

November 30, 2015Rev 02Parts List, 2-10 HP& 15 HP MM1502
4107 9007 00
April 12, 2012
Rev 01

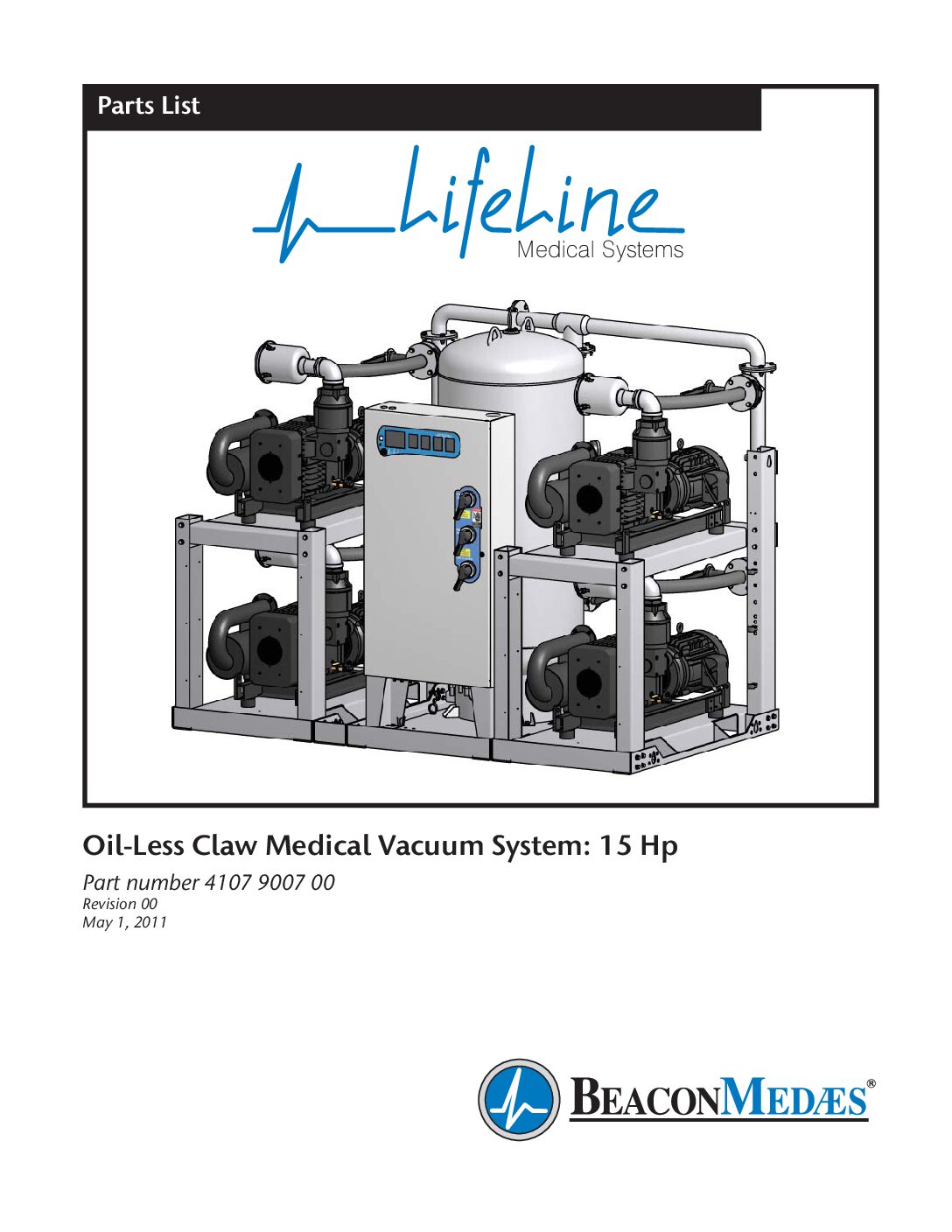

Parts List, 15 HP
Control Cabinet Layout/Electrical Drawings
HP RangeCabinet TypePanel DrawingElectrical Drawing

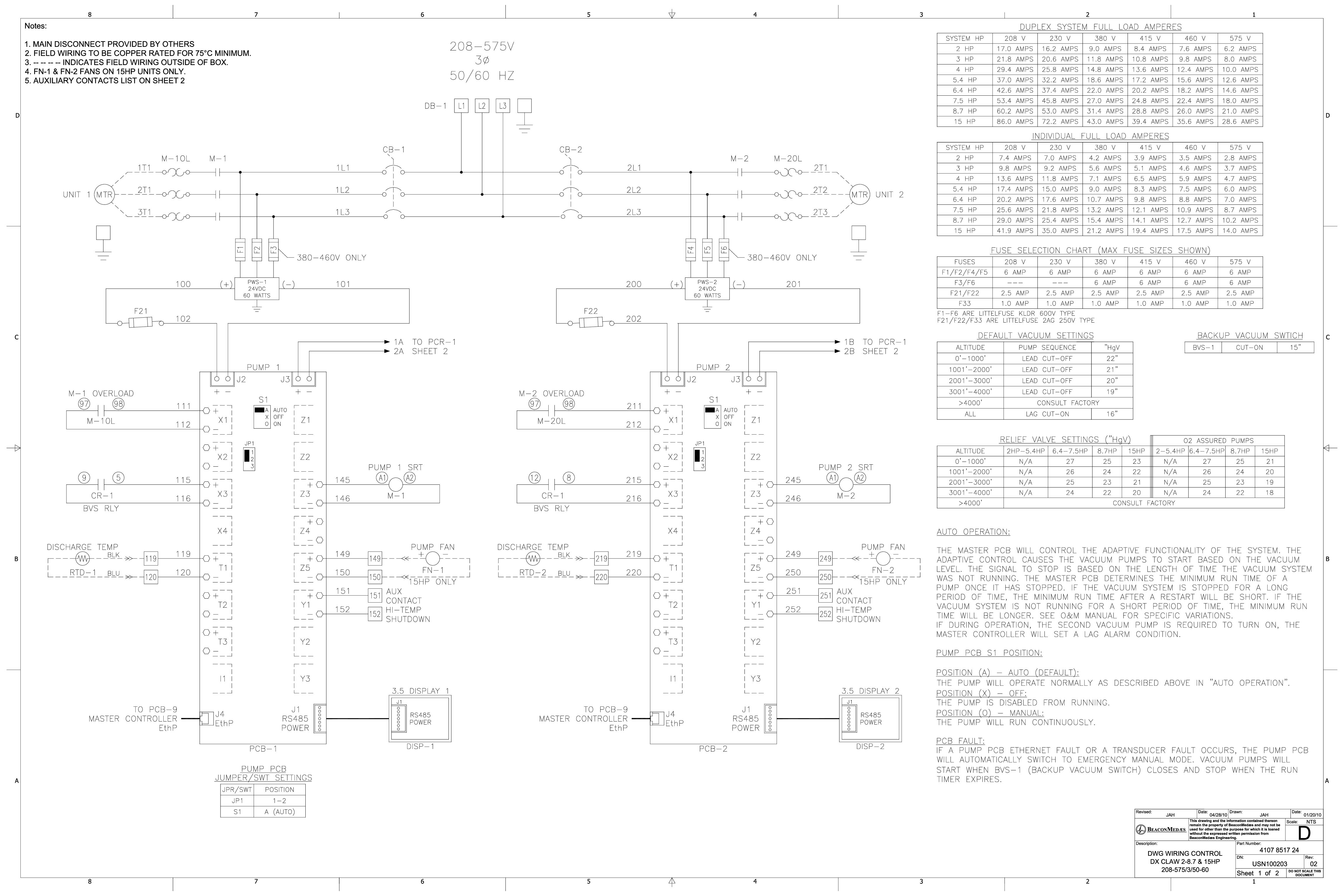

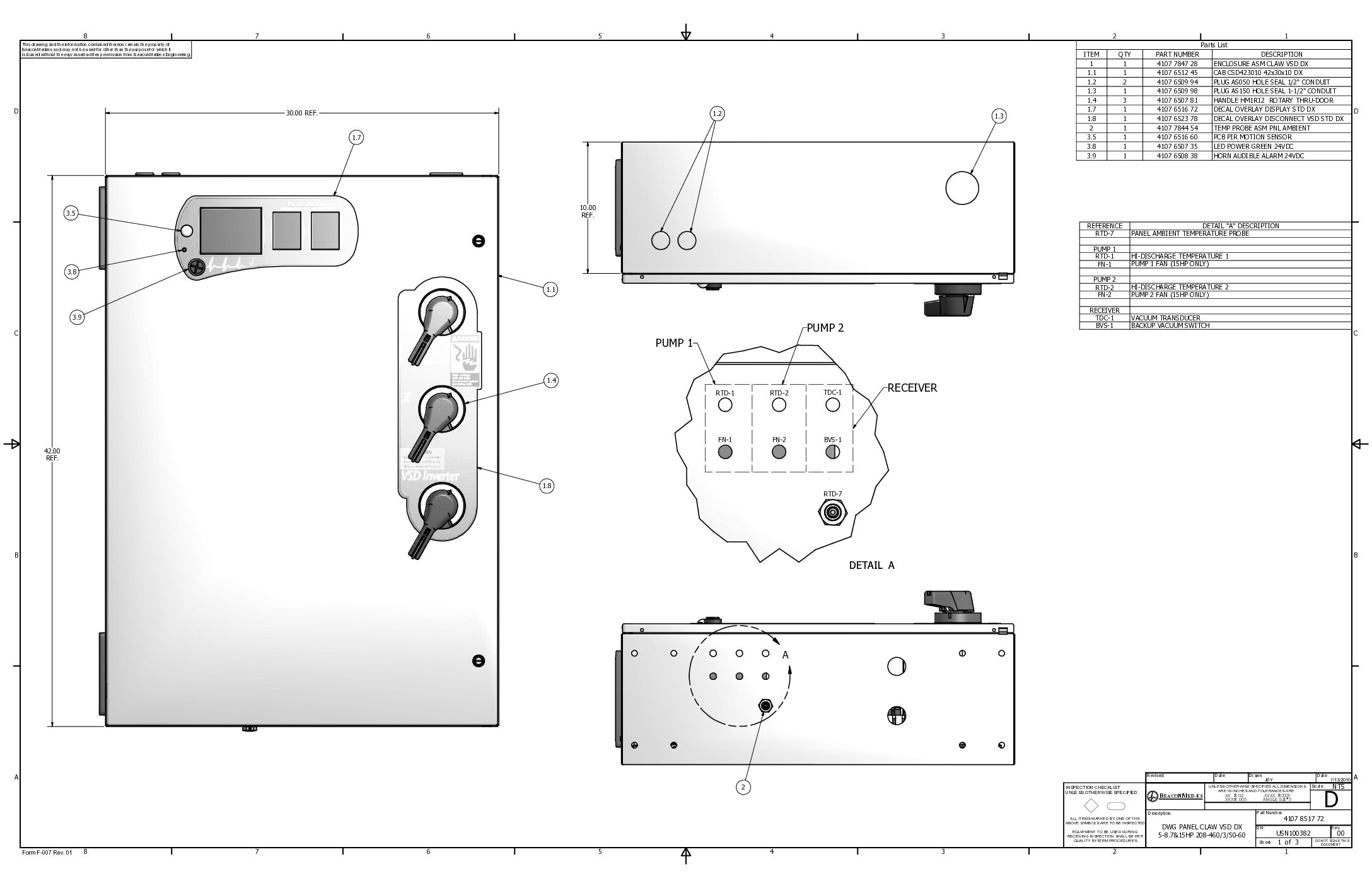

5-8.7, 15Duplex4107 8517 724107 8517 24

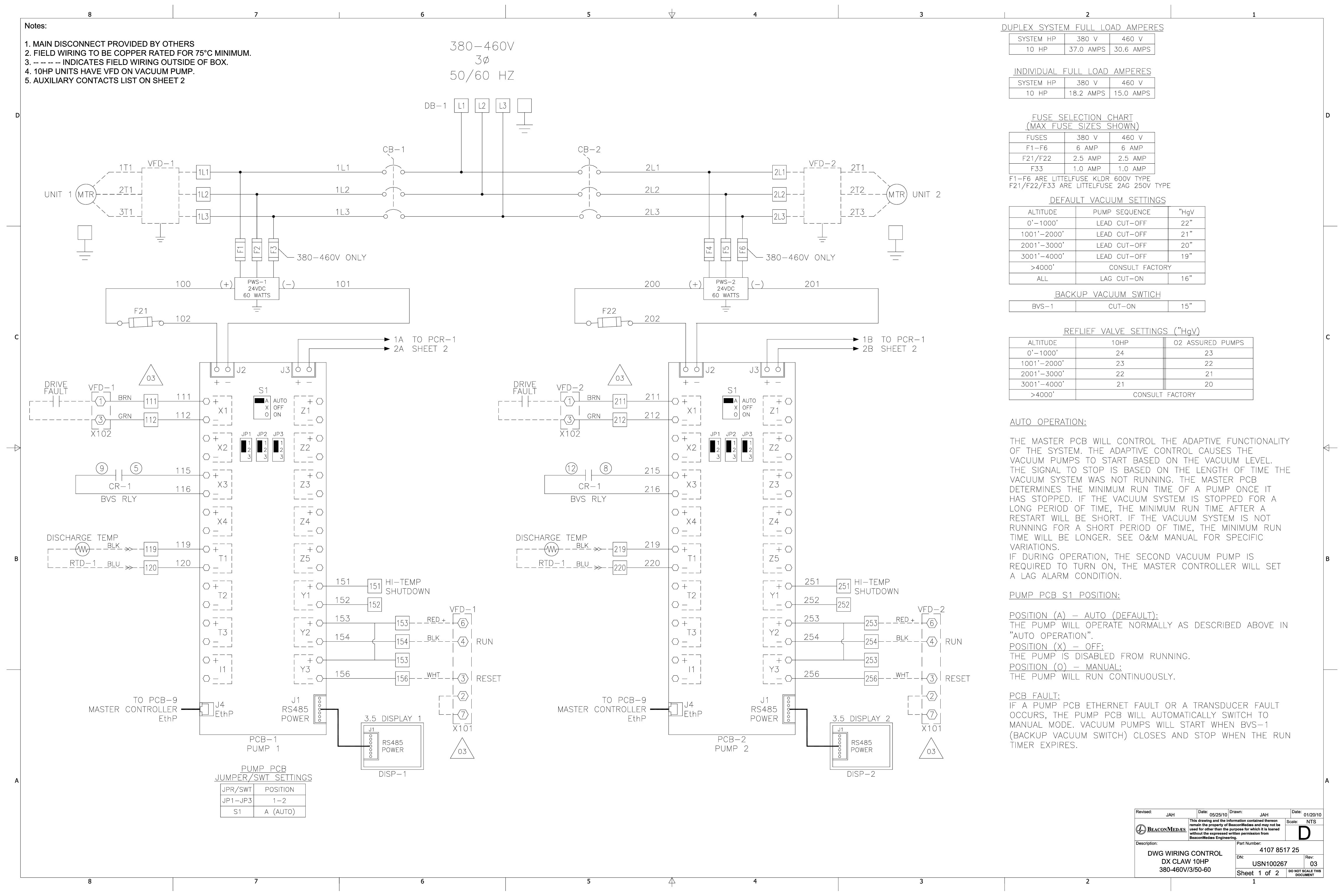

10Duplex4107 8517 25

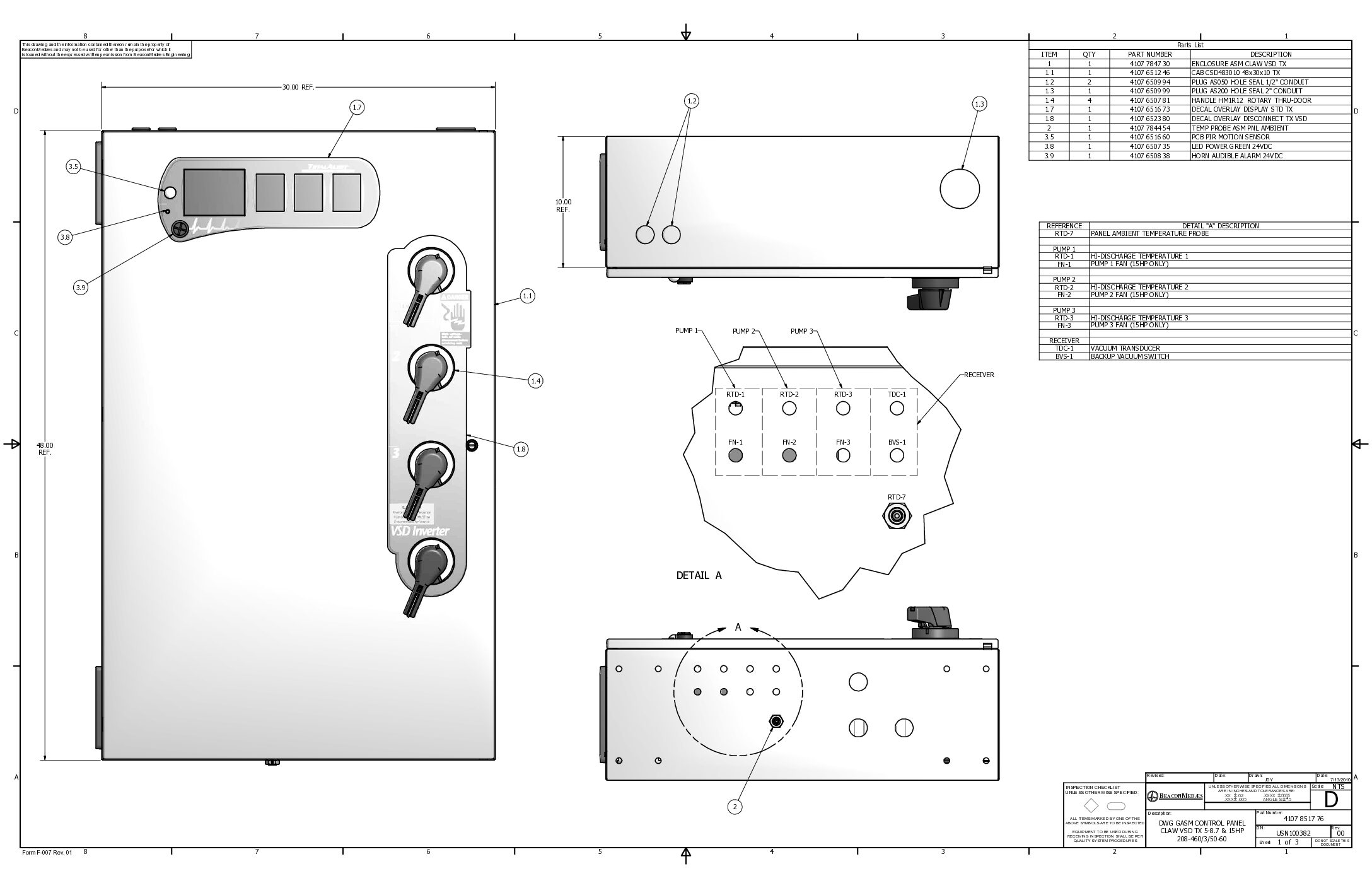

5-8.7, 15Triplex4107 8517 76

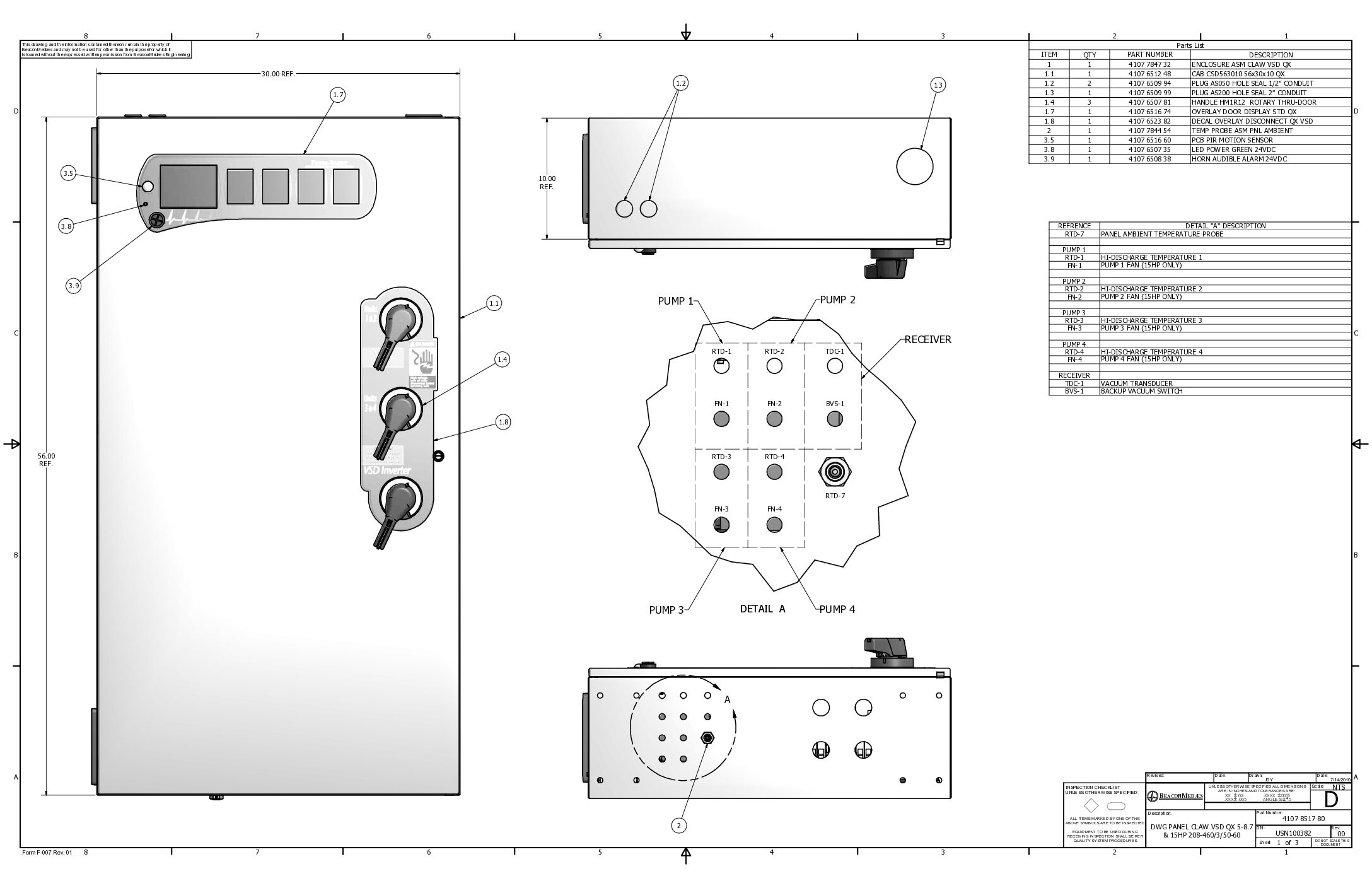

5-8.7, 15Quadraplex4107 8517 80
15Pentaplex4107 8517 84

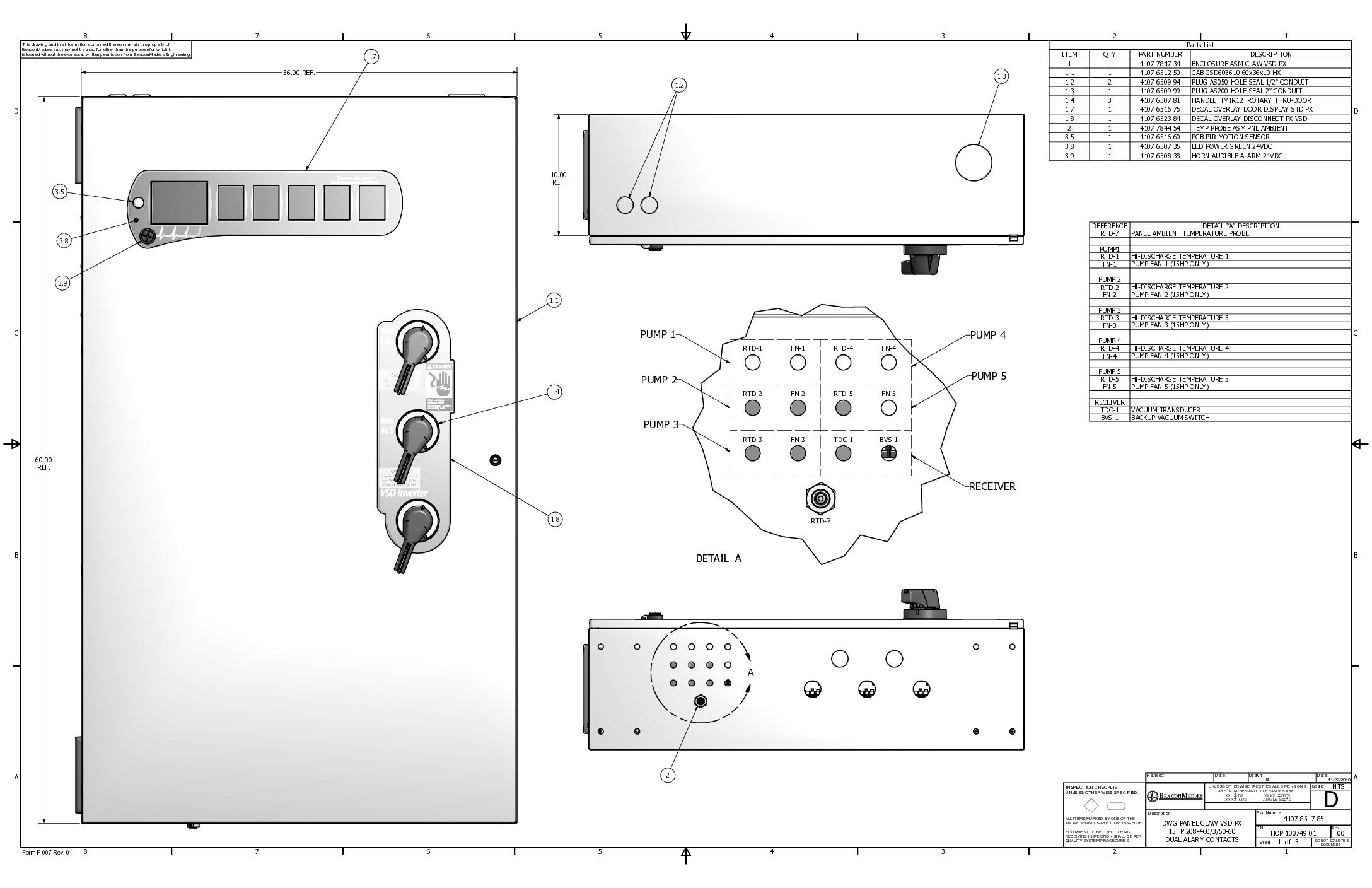

15Pentaplex4107 8517 85
15Hexaplex4107 8517 88
