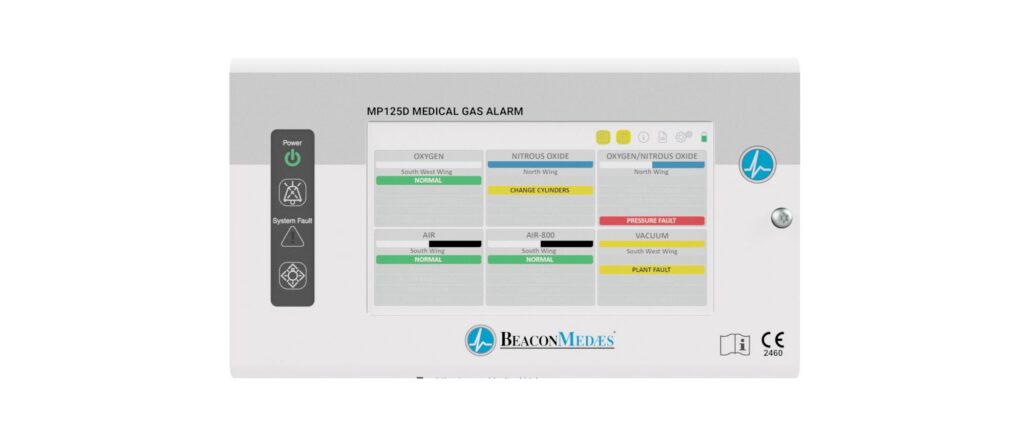

BeaconMedaes Medipoint Digital Medical Gas Alarm

Equipment Description

BeaconMedaes Medipoint digital medical gas alarms monitor pipeline plant and area services from a touchscreen panel. The family covers the Medipoint 125 central alarm (MP125D) and the Medipoint 26 local/area alarm (MP26D). Both use an antimicrobial fascia, editable legends, and password-protected event logging.

The 125 central panel watches medical gas equipment and can be tied into existing analogue Medipoint MP125 systems. The 26 local panel is the area alarm for patient-location monitoring. Official HTM / ISO datasheets and MK2 installation instructions are attached. This family is not Mega 1, Mega 2, MEGA3, TotalAlert Infinity, or the L Series alarm.

Key Features

• Monitor up to fifteen gas services with customizable panel options.
• Intuitive touchscreen with editable alarm and service-location legends.
• Antimicrobial cover fascia to support infection control.
• High and low alarm set points adjustable from the touchscreen.
• Event logging with password-protected access.
• On-screen battery status so planned-preventive battery tests do not require removing power.
• Central panels can integrate with existing analogue Medipoint MP125 alarms.

Components

Medipoint 125 Central Alarm (MP125D)

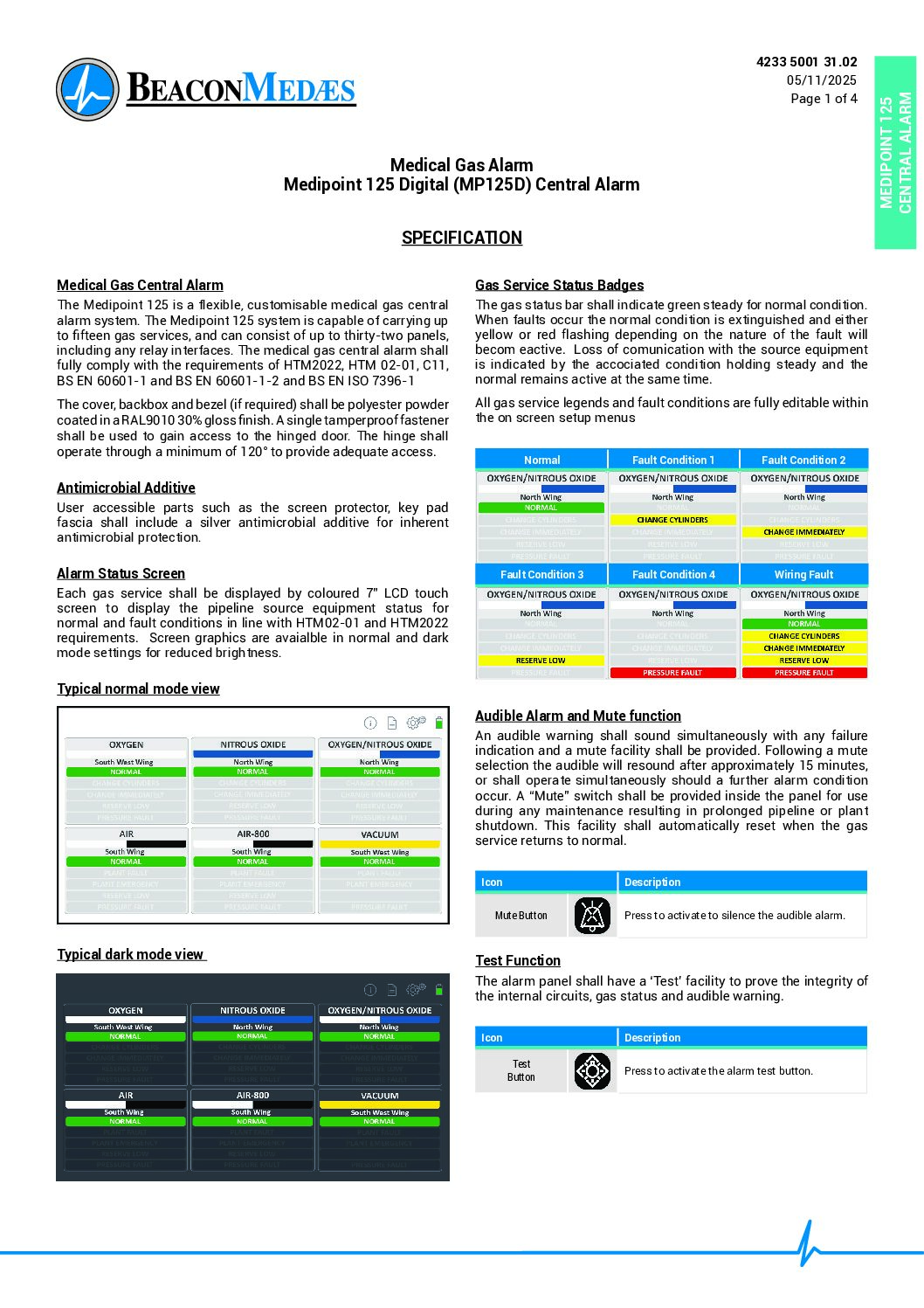

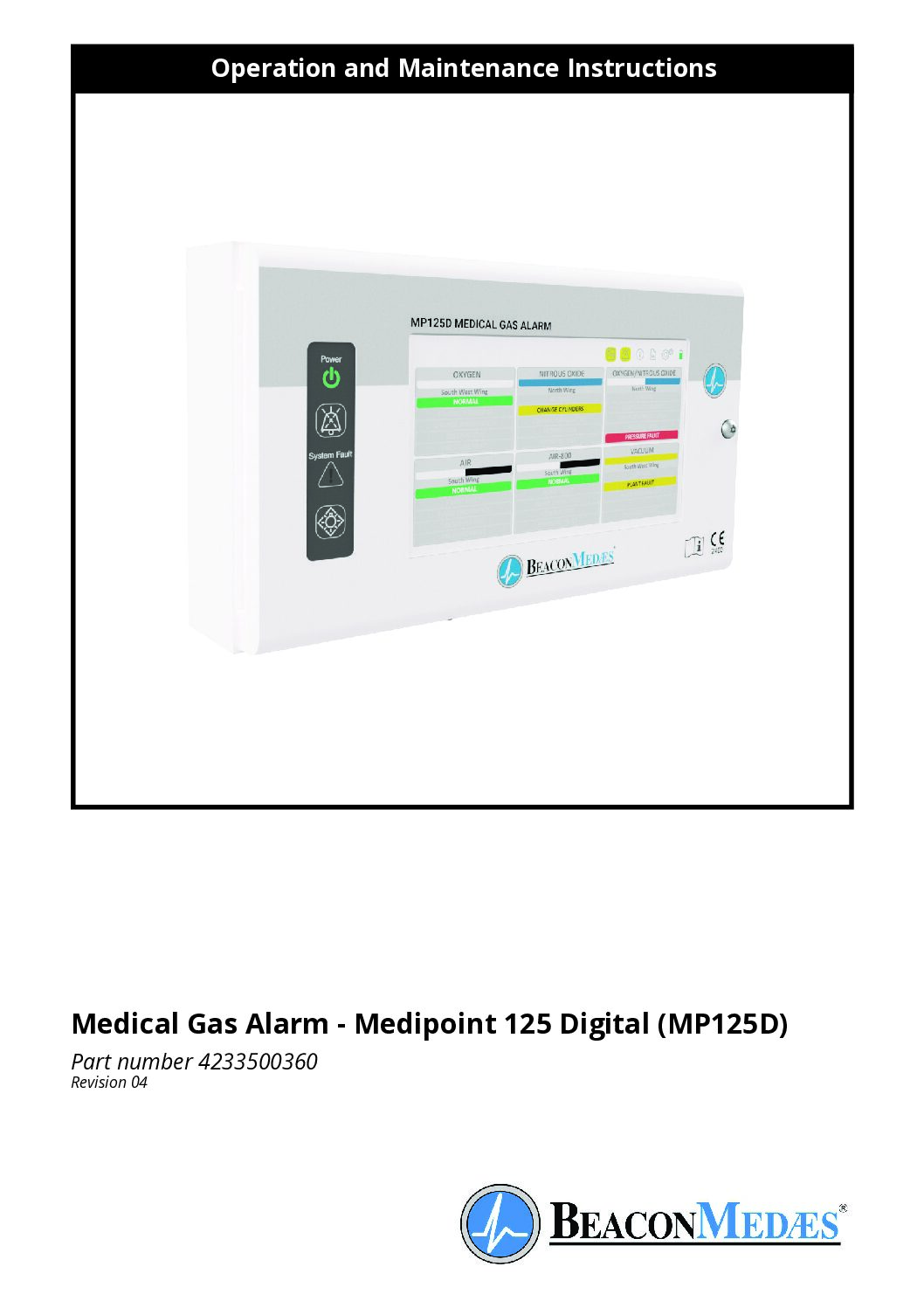

Central alarm for medical gas plant performance. Use the HTM technical datasheet and MK2 central-panel installation instructions for gas-service capacity, wiring, and plant interface details.

Medipoint 26 Local Alarm (MP26D)

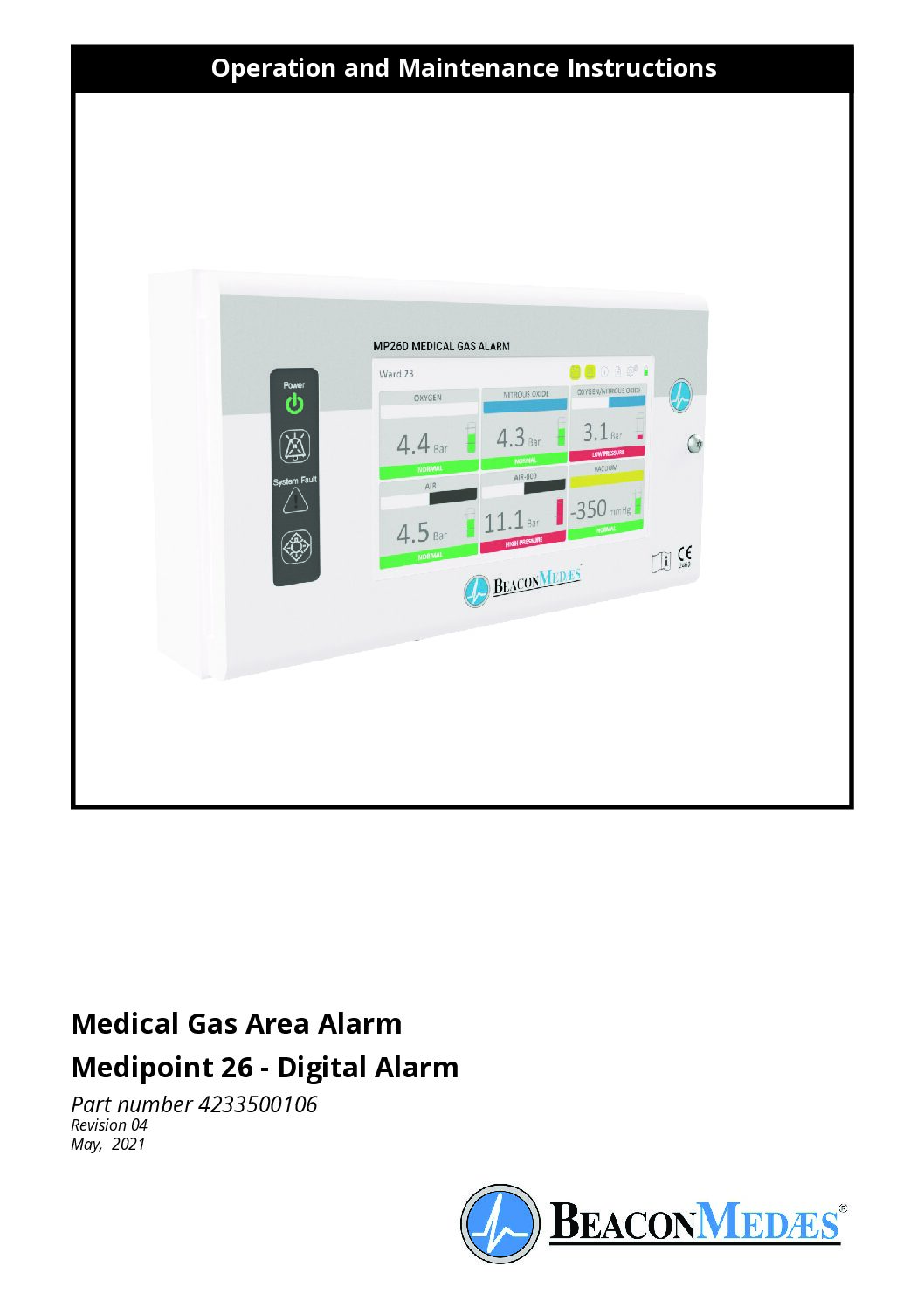

Local/area alarm for patient-safety monitoring. Pair with the HTM/ISO local-alarm datasheet and MK2 area-alarm installation instructions.
