Equipment Description

The BeaconMedaes TotalAlert Infinity (also designated Mega 3) is an advanced modular medical gas alarm platform with a color touchscreen display, BACnet networking, and configurable relay outputs. It supports master, combination, and area alarm configurations with expandable signal input boards for up to 80 monitoring points.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Information
T3/M3 Model CalculatorIssuesBoard LayoutsRetrofit Boards
External Speaker ConnectionPasswords

Common Parts

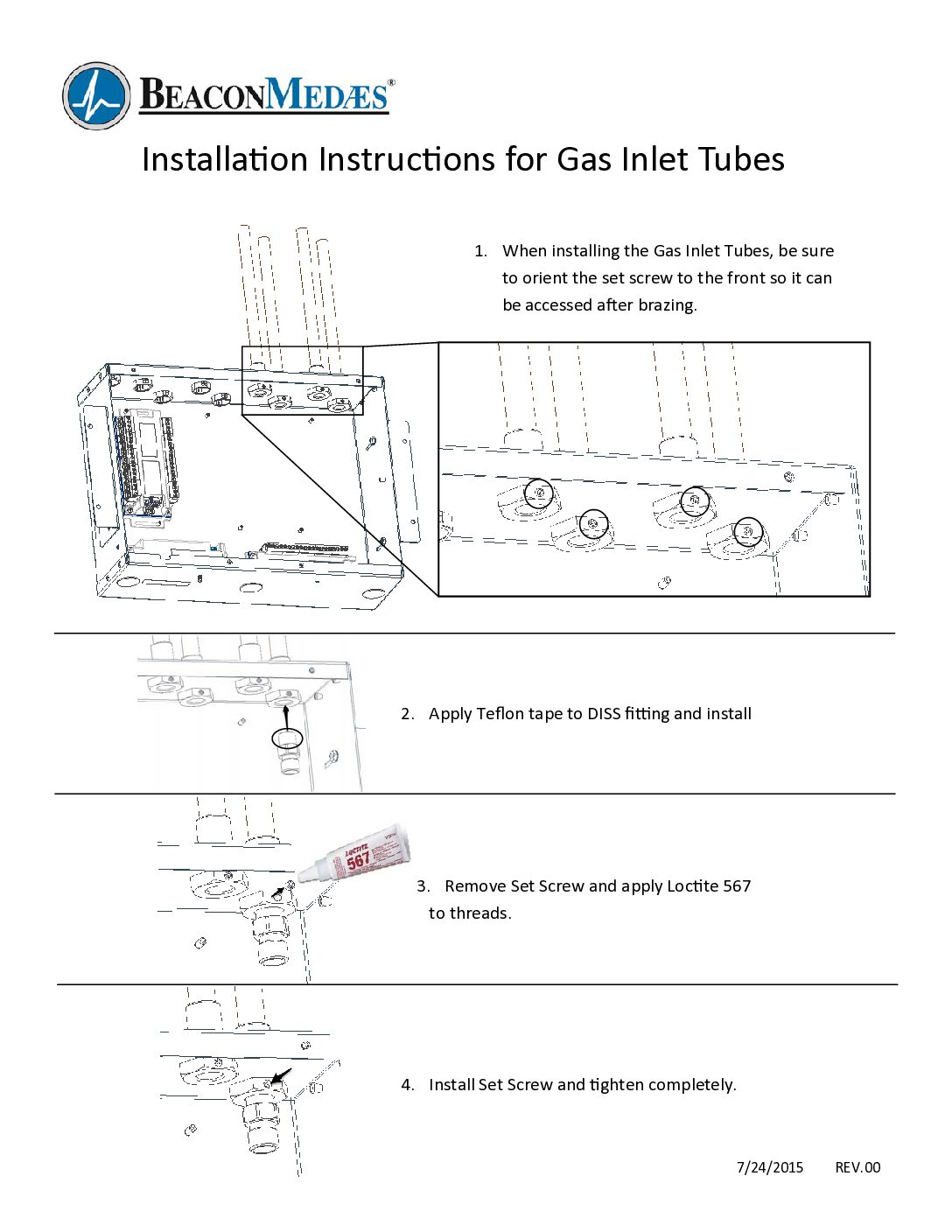

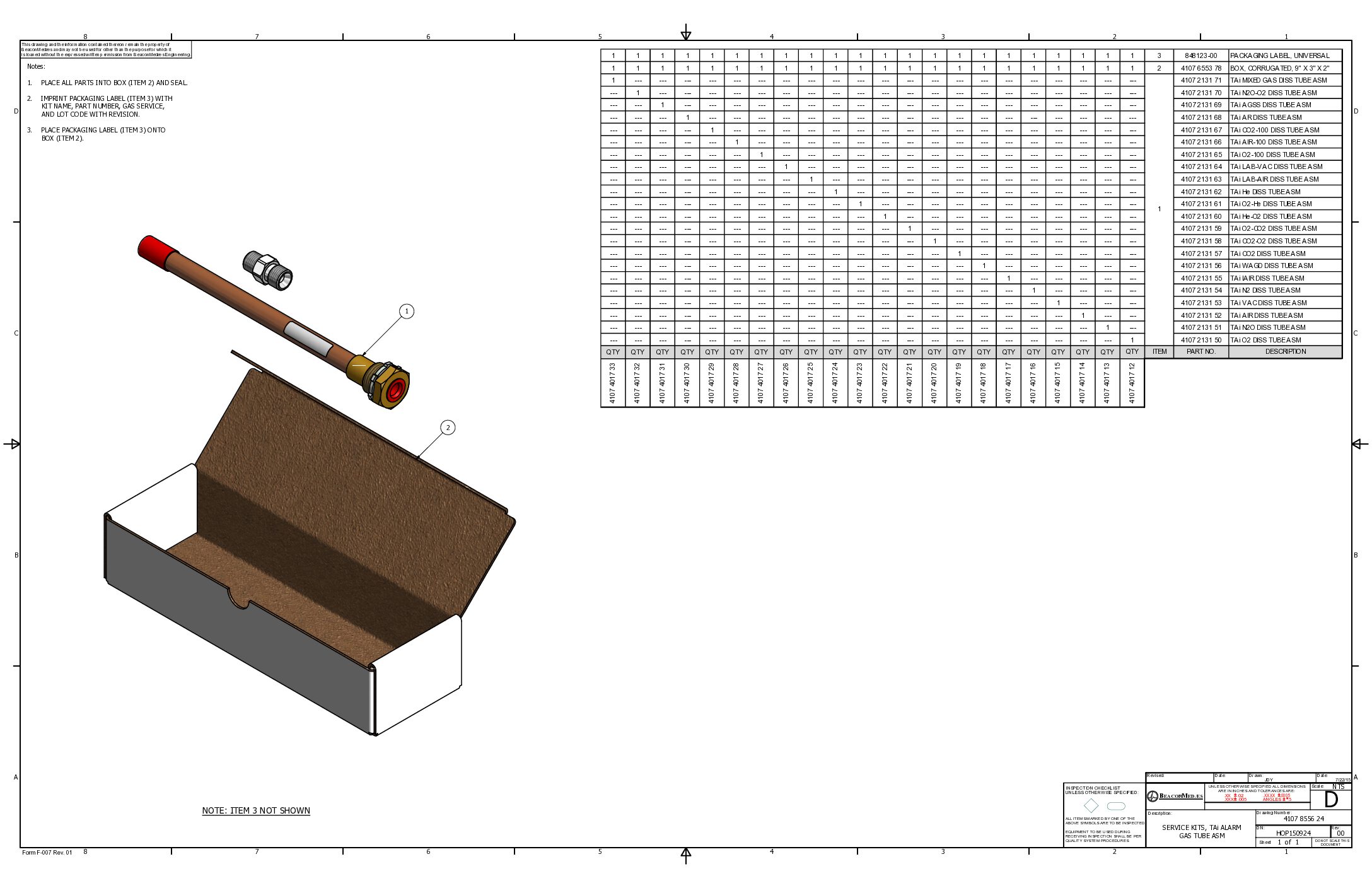

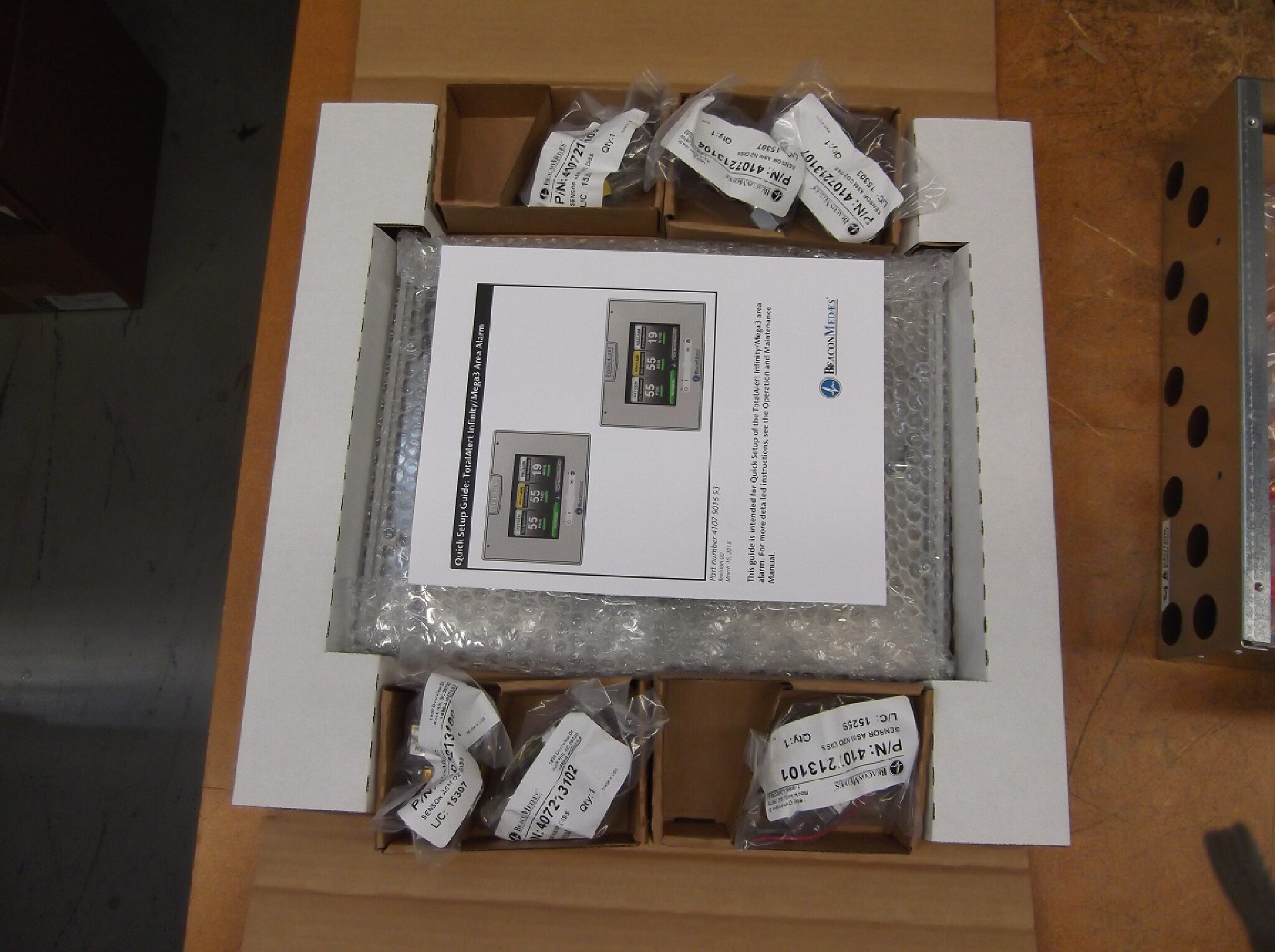

Wall Anchor SpecGas Tube Set Screw InstallGas Sensor/Inlet Tube AssysFront PanelArea Alarm Packing
Part NumberDescription
4107 4017 35B00 Main Board, Programmed
Note: The kit number has remained the same for the new board (matches the B03 16MB Advance Module). When needing to change B00 boards, verify the board revision. If old revision, then change out the B00 and B03 boards. If current revision, B00 board only. Alarm panels with a plastic back cover will only have the current revision boards.
4107 4018 04
4107 4016 45
4107 4018 03
4107 4016 36		B03 Advance Module, 16MB w/TotalAlert Infinity Badge
B03 Advance Module w/TotalAlert Infinity Badge
B03 Advance Module, 16MB w/o Badge
B03 Advance Module w/o Badge
Note: The new 16MB Advance Module will work with both the new and old revision B00 Main boards. The old Advance Module will only work with the old revision B00 Main board.
4107 4016 37B05 Power Supply Kit
4107 4016 23Fuse, Bel 5TT 250-R, 250V, 250mA, Glass Tube, Time Delayed, Pack of 5
4107 4016 47
4107 4016 38		B10, B11, B12 Signal Input Board, 20 Inputs w/Cable
B10, B11, B12 Signal Input Board, 20 Inputs w/o Cable
4107 4016 39B20 TA2 Retrofit Board w/o Cable
4107 4016 50
4107 4016 41		B40, B41, B42, B43 Relay Board, 16 Relay Outputs w/Cable
B40, B41, B42, B43 Relay Board, 16 Relay Outputs w/o Cable
4107 4016 51
4107 4016 42		B50 4-20mA Combination Board, 7 Inputs, 4 4-20mA, 6 Relay Outputs w/Cable
B50 4-20mA Combination Board, 7 Inputs, 4 4-20mA, 6 Relay Outputs w/o Cable
4107 4016 52
4107 4016 43		B60 Gas Input Board, 8 Gases w/Cable
B60 Gas Input Board, 8 Gases w/o Cable
4107 4016 53
4107 4016 44		B65 Gas Combination Board, 3 Gases, 10 Inputs, 6 Relay Outputs w/Cable
B65 Gas Combination Board, 3 Gases, 10 Inputs, 6 Relay Outputs w/o Cable
4107 6539 35Cable, 12" Power/Communication
4107 6539 38Cable, 20" Power/Communication
4107 6549 644 Pos. Termin Connector, Green

Reference Materials - TAi

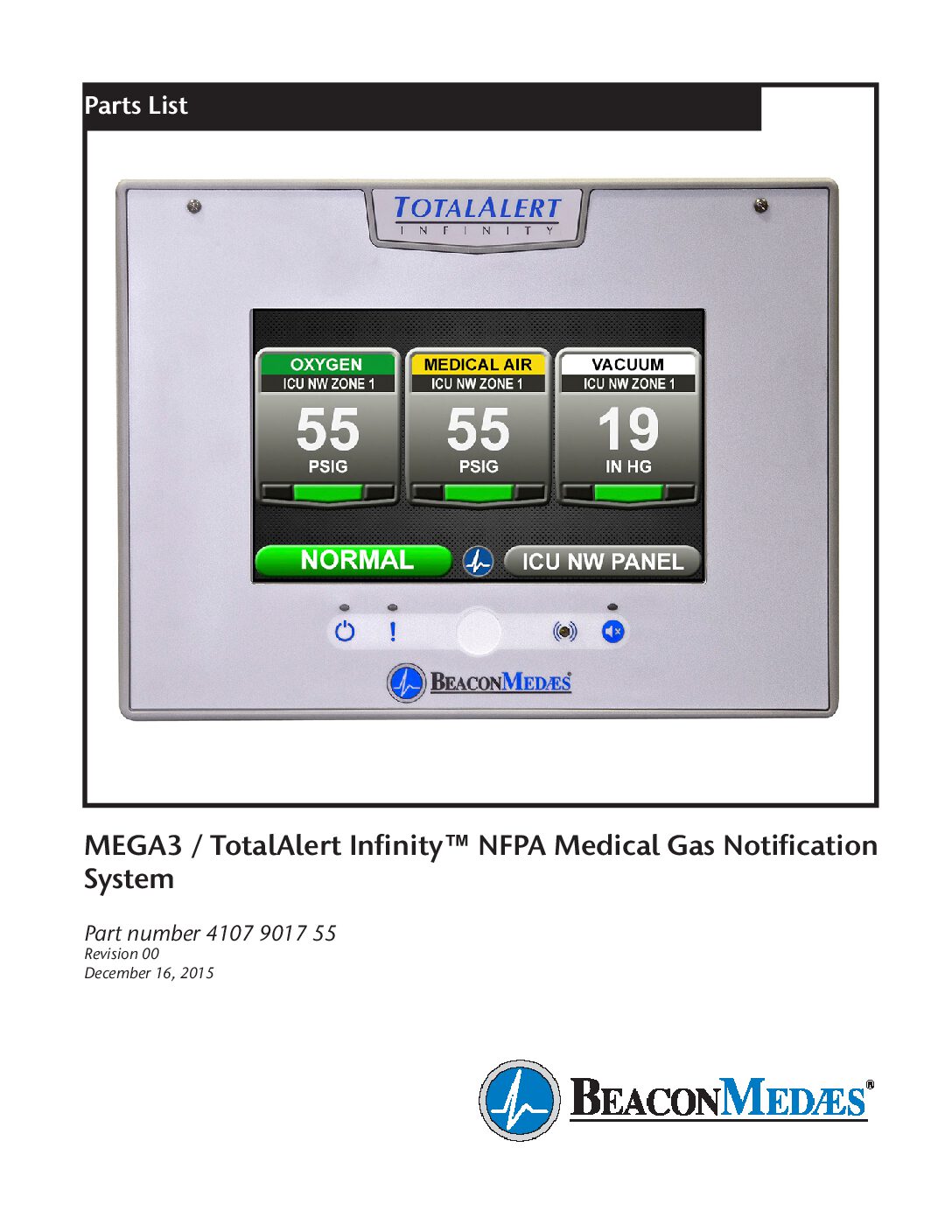

Quick Setup Guide MasterQuick Setup Guide AreaBACnet Pic SheetParts ListManual
Reference Materials - Mega 3
Quick Setup Guide MasterQuick Setup Guide AreaParts List
Electrical Drawings - TAi

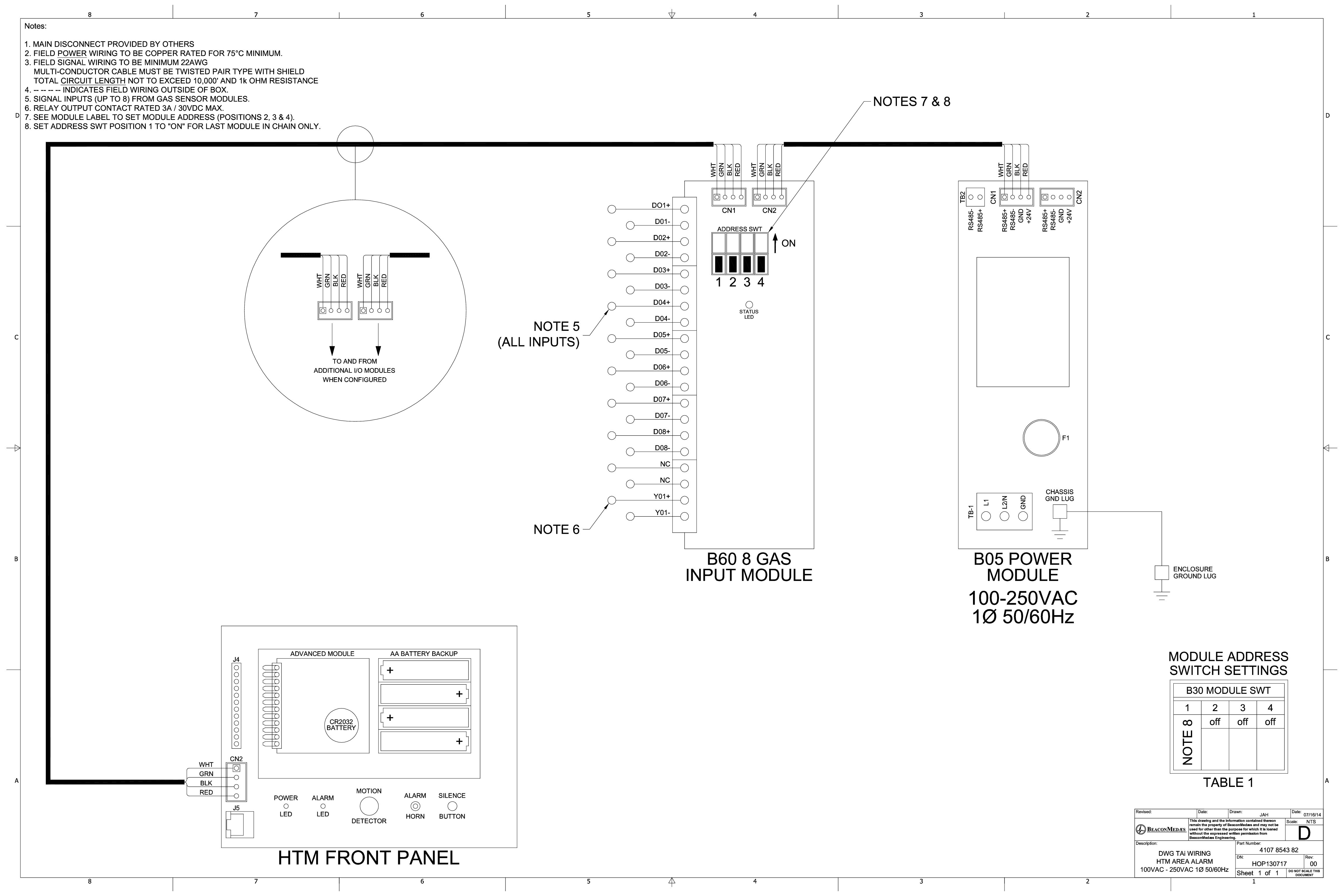

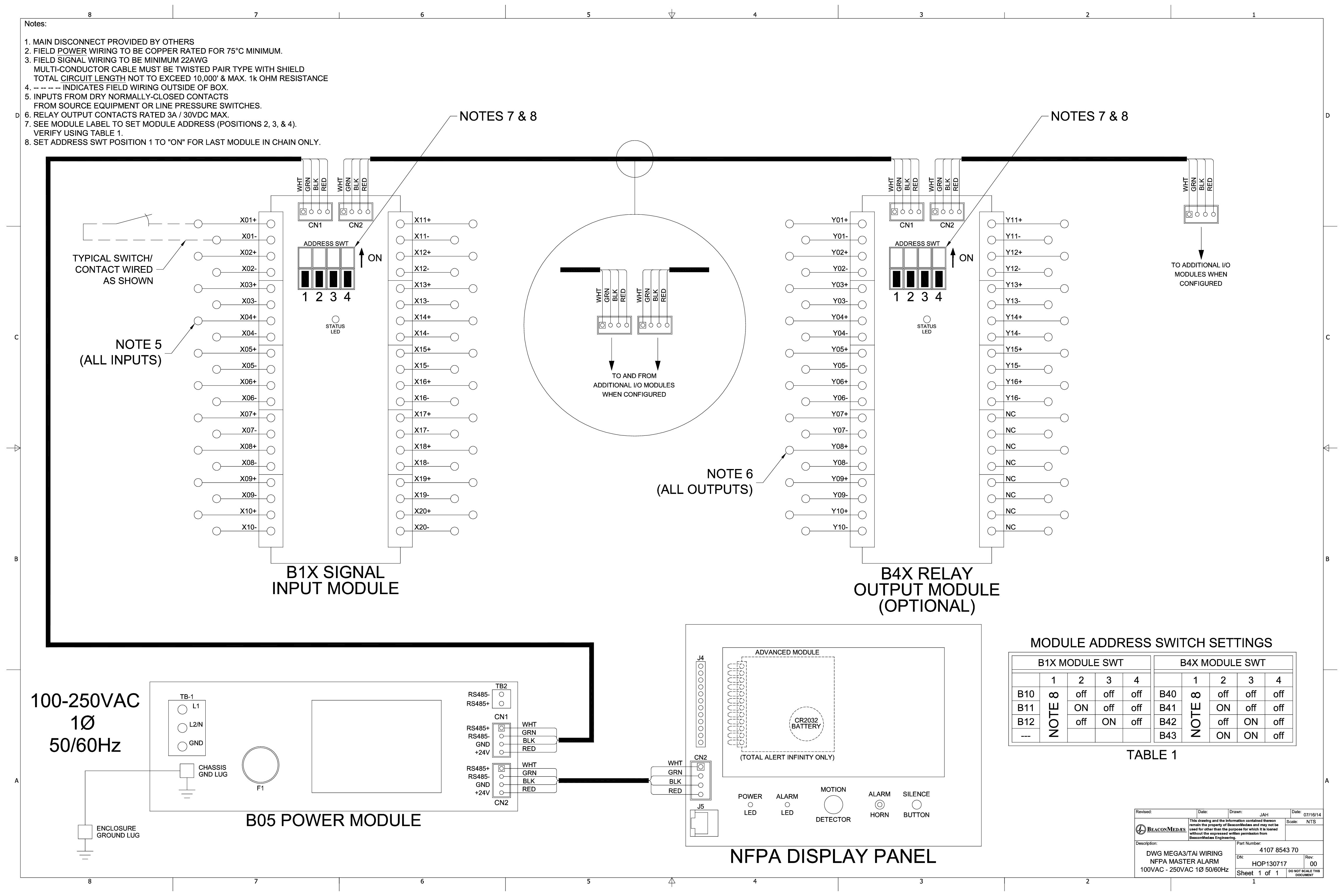

NFPA Master WiringNFPA Combo WiringNFPA Area WiringHTM Master WiringHTM Combo WiringHTM Area Wiring
4107 8543 704107 8543 744107 8543 724107 8543 804107 8543 844107 8543 82
Electrical Drawings - Mega 3
NFPA Master WiringNFPA Combo WiringNFPA Area Wiring
4107 8543 704107 8543 744107 8543 72
