Equipment Description

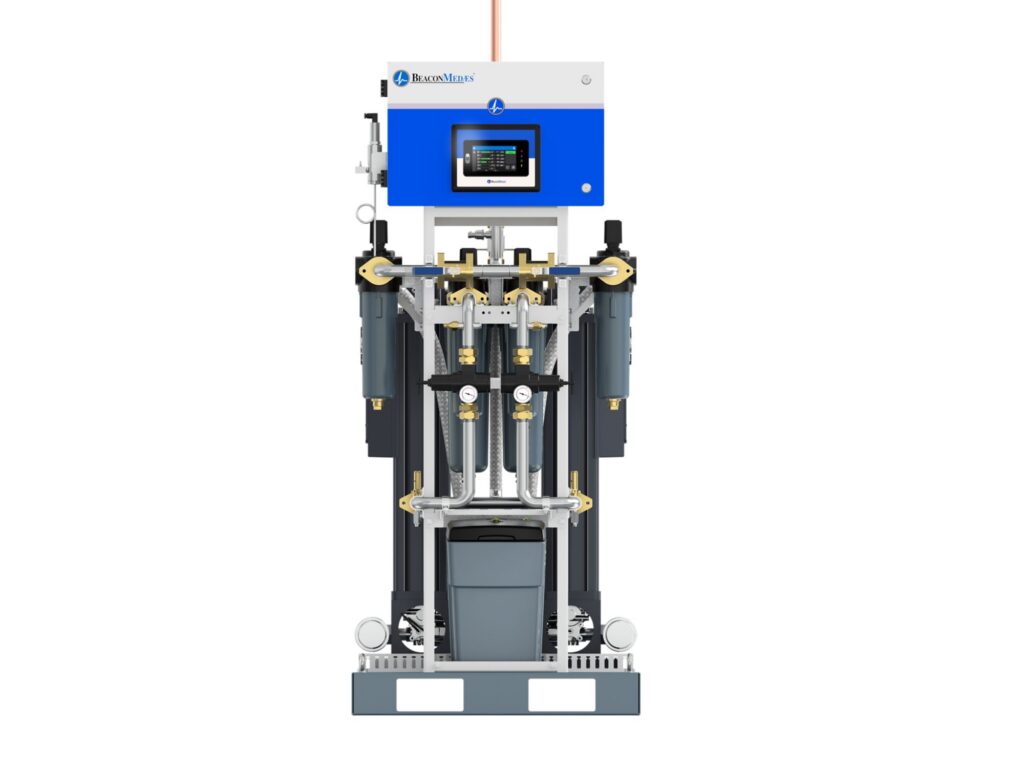

The BeaconMedaes PMA desiccant air dryer is the duplex medical-air purification module for the PMA family. Specified as a separate unit, it produces medical-grade air up to 1000 kPa (10 bar) and is built to MDR 2017/45, EN ISO 7396-1, and HTM 02-01 / HTM 2022.
The package is modular, uses leak-free pipework connections that do not require sealing tape, and is sized for rooms where footprint matters. Mk5 Touch control with EN 62304-validated software and optional CO / CO2 sensors sit on this dryer, not on a generic industrial desiccant skid. This is not the full PMA Medical Air System plant (compressors plus vessels), not the TMA canopy plant, and not the Lifeline desiccant dryer.
Key Features
- Modular duplex purification package that can support up to six compressors.
- Stainless-steel pipework with leak-free joints that do not need sealing tape.
- Compact footprint for tight plant rooms.
- Mk5 Touch controller with color display and SMARTLINK monitoring.
- Optional CO and CO2 sensors for medical air quality.
- Service access to the adsorption dryer for desiccant replacement.
- Cubicle and controller tested to EN 60601 electrical safety and EMC requirements.
- Integrated oil-water separator (OSC) for compressor condensate.
