Medaes Intermittent Duty Rotary Vane
Documents & Manuals: View or Download

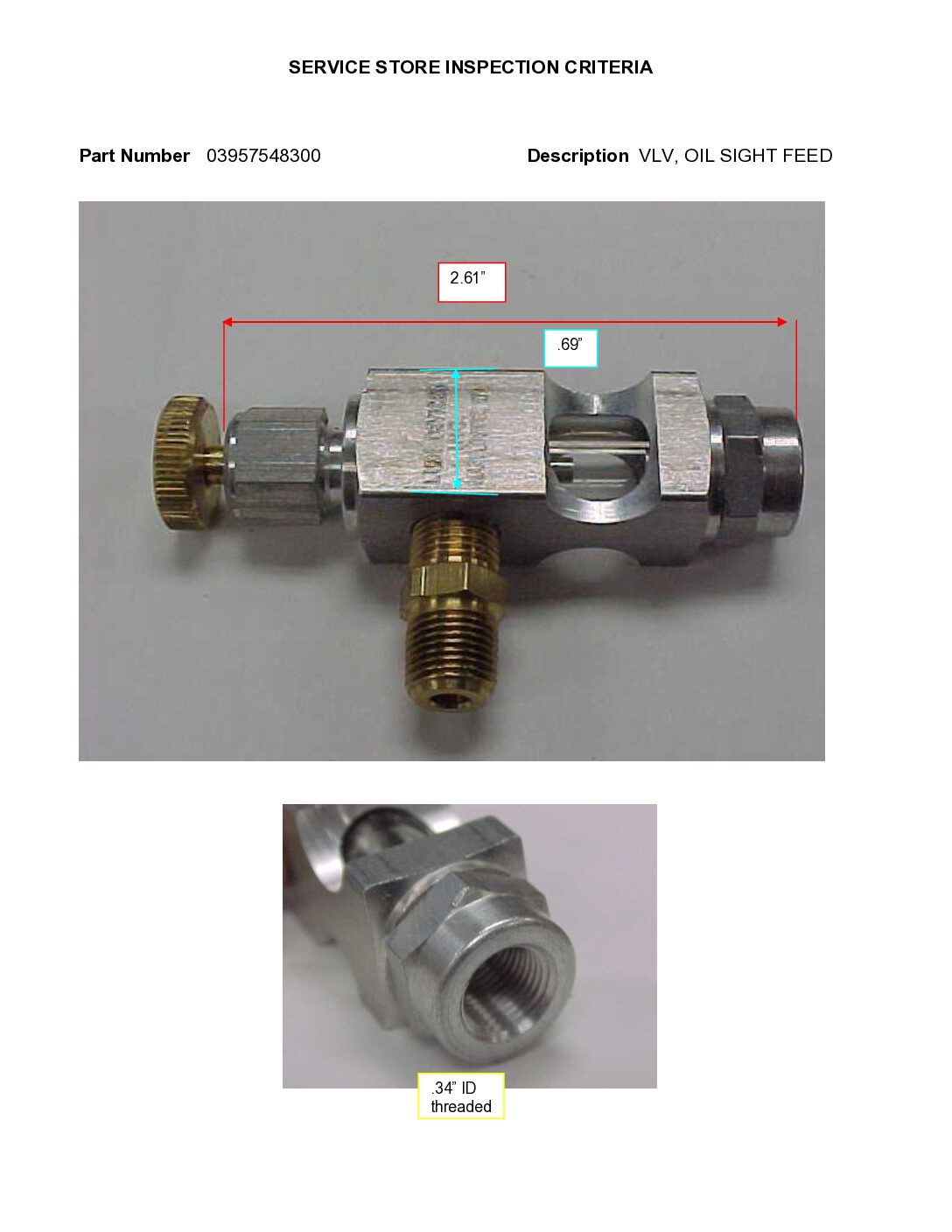

03957548300
View or Download

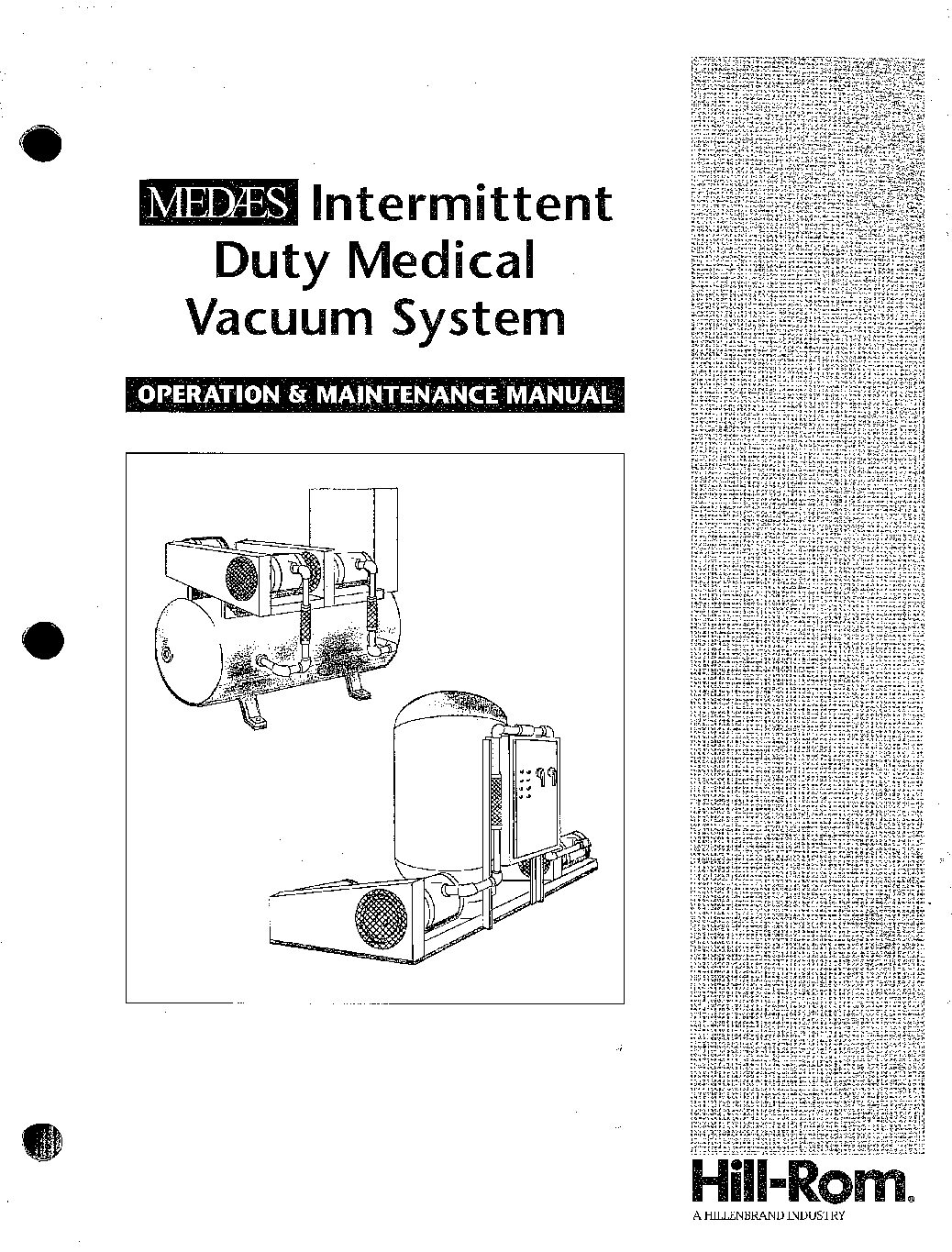

6810-0030-002 IDRV OM Manual
View or Download

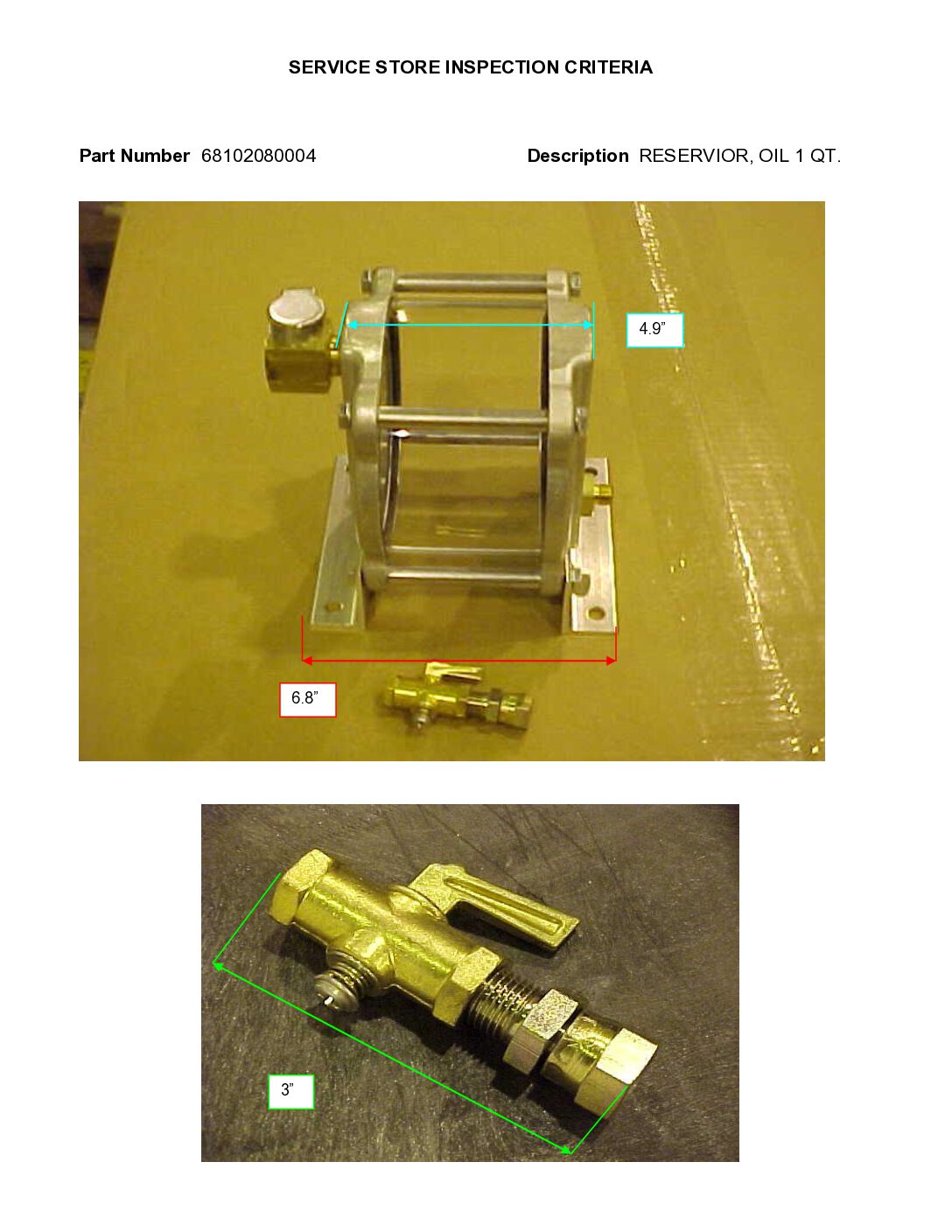

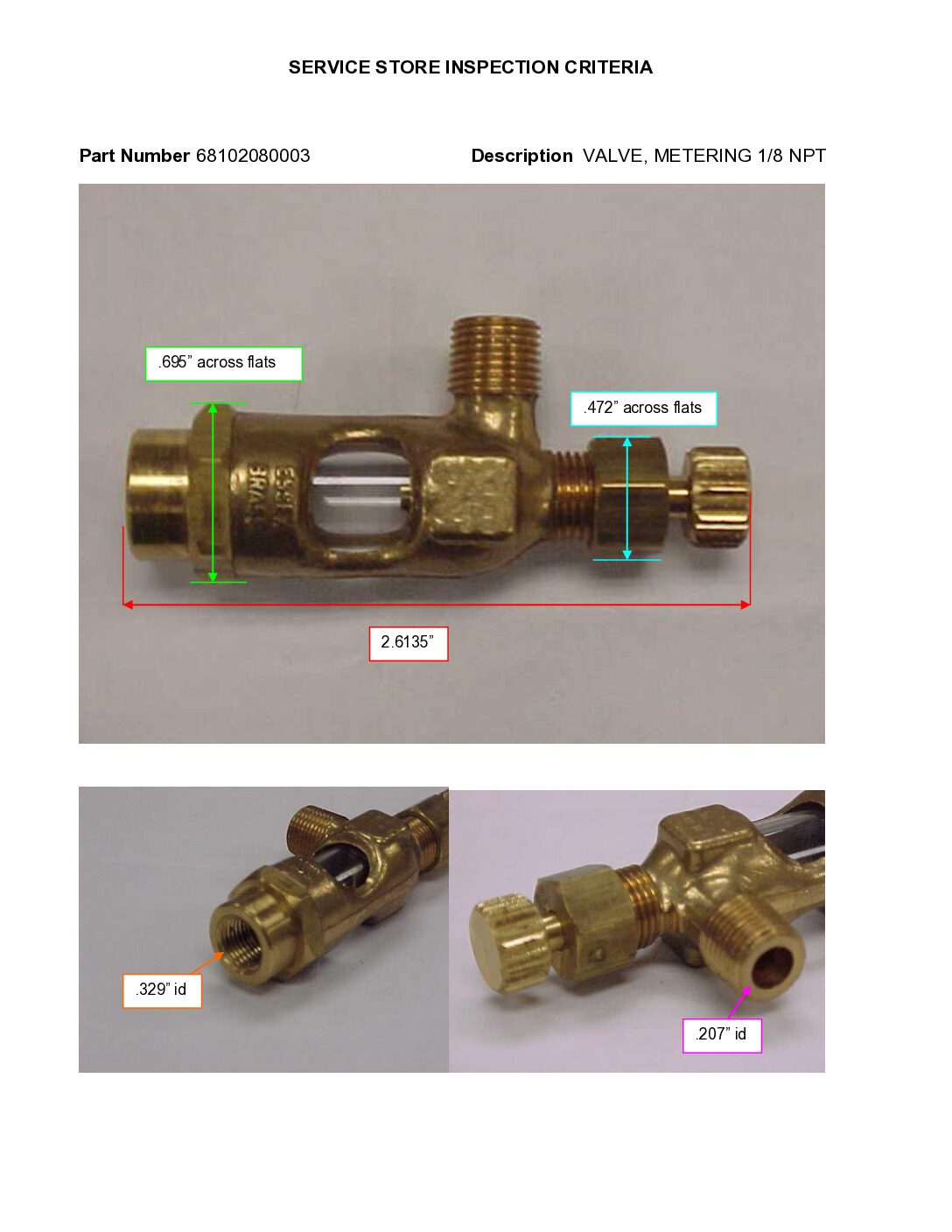

68102080003
View or Download
68102080004
View or Download
68107100003_03
View or Download

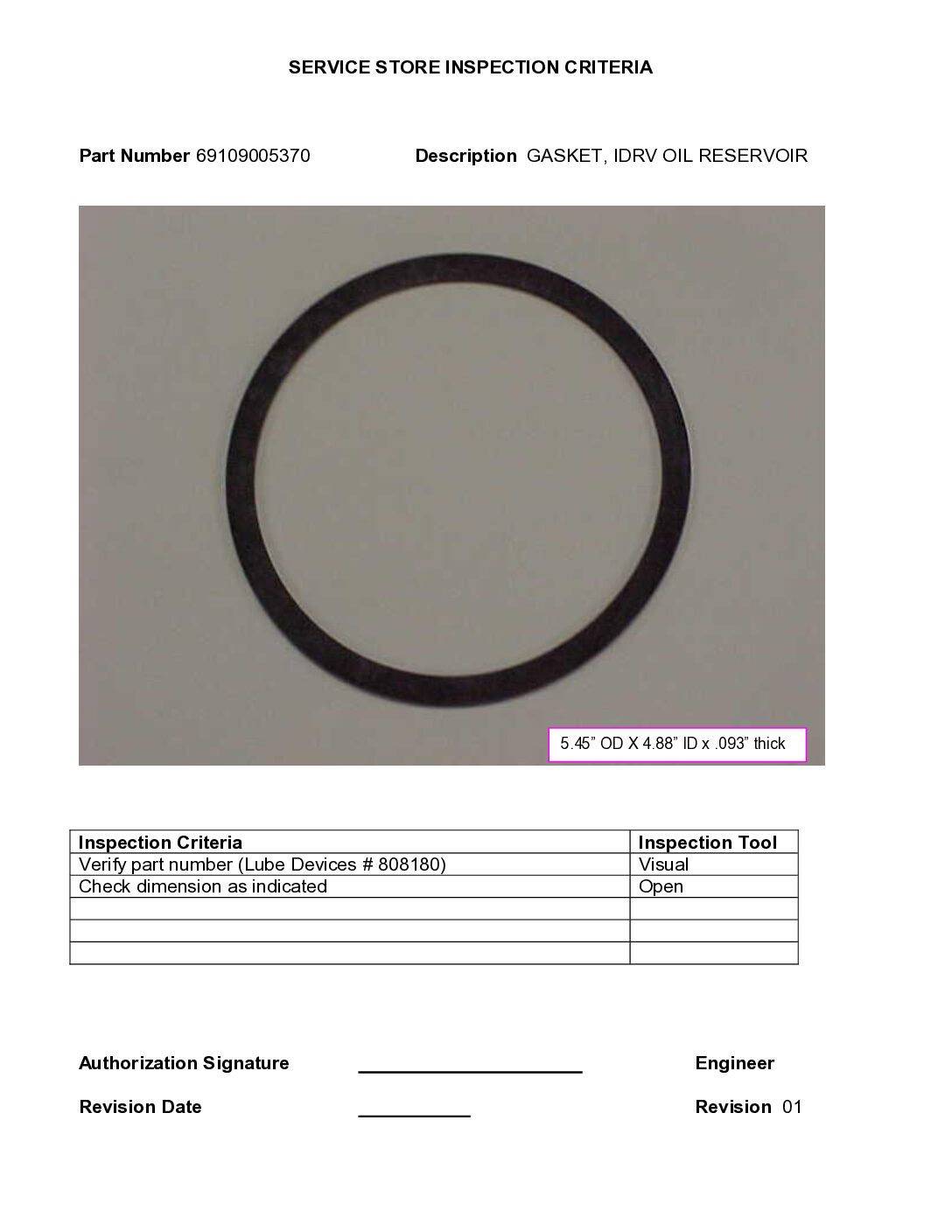

69109005370
View or Download
6914-3100-002 12-7-90
View or Download
6914-3100-006 11-8-89
View or Download
6914-3100-007 11-13-89
View or Download
6914-3100-009 12-7-89
View or Download
6914-3100-009 6-2-96
View or DownloadEquipment Description
The BeaconMedaes (Medaes) intermittent duty rotary vane vacuum pump is a belt-driven, oil-lubricated rotary vane pump designed for medical vacuum applications. Available in 1–10 HP models, it features integral vibration dampeners, mufflers, and demister separators.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
| Vibration Dampeners | Mufflers & Silencers | Replacement Pumps | Flex Connections |
| Oiler | Sheaves, Pulleys & Belts | Temperature Switches | Repair Kits |
| Electric fan, 8", 400 CFM, 1500 rpm, Model KB800 Series S, 0.7 amp, 55 watt: 6810-3080-006 Demister, 1-3 HP: 6810-2580-038 Demister, 5-10 HP: 6810-2580-039 | |||
| System Drawings | |||

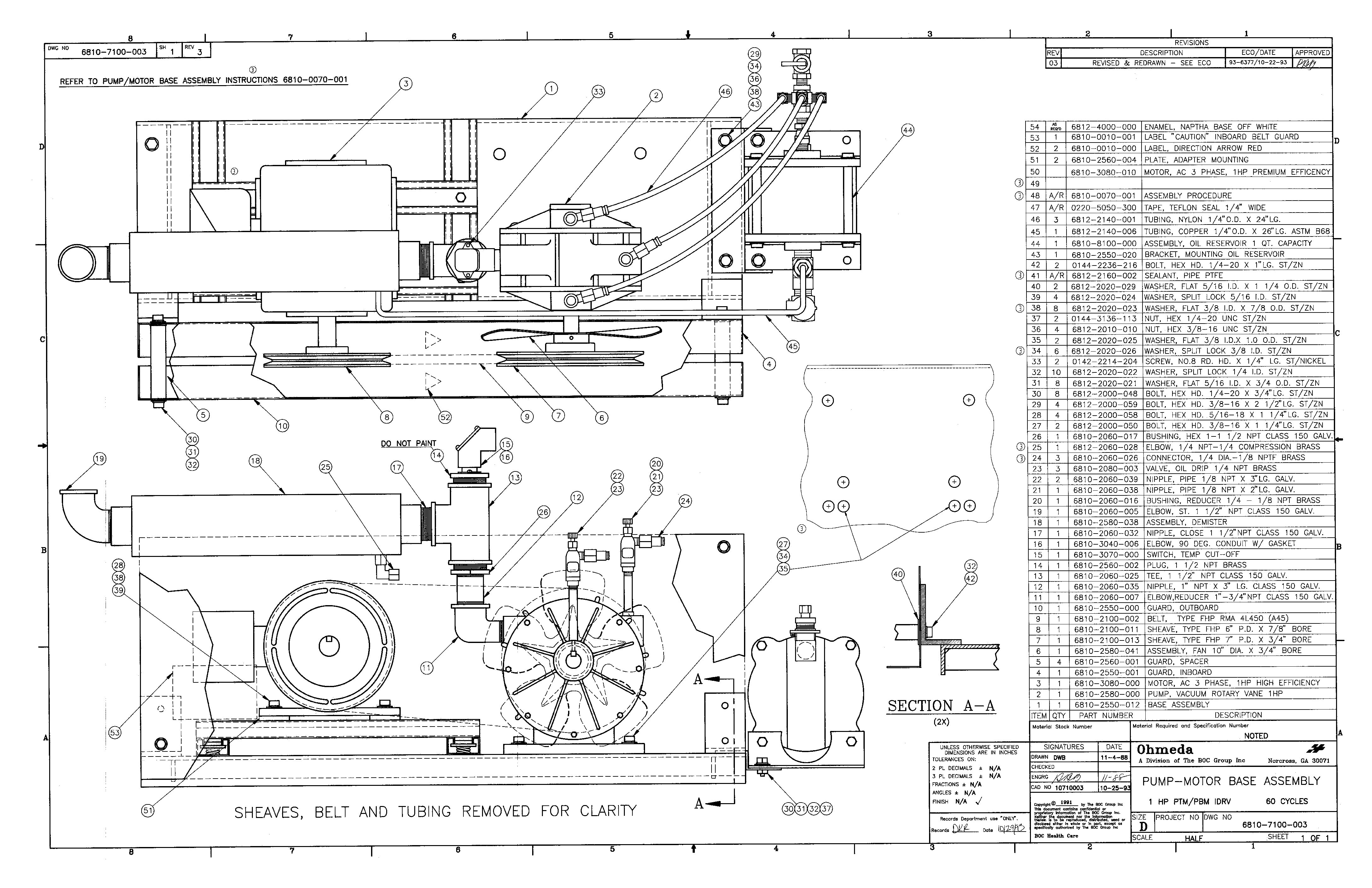

| 1 HP (195-2) | 6810-7100-003 | ||
| Electrical Drawings | |||

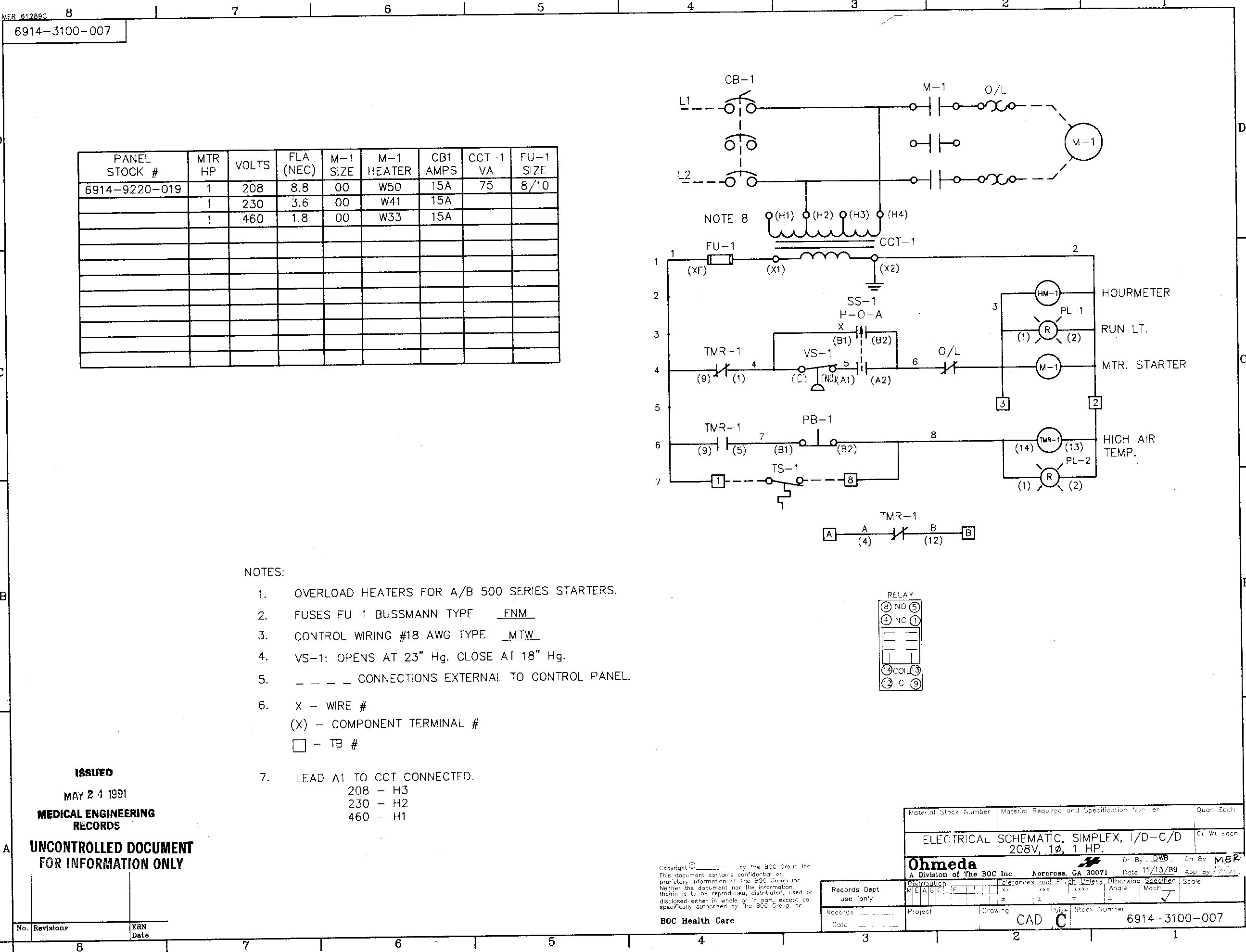

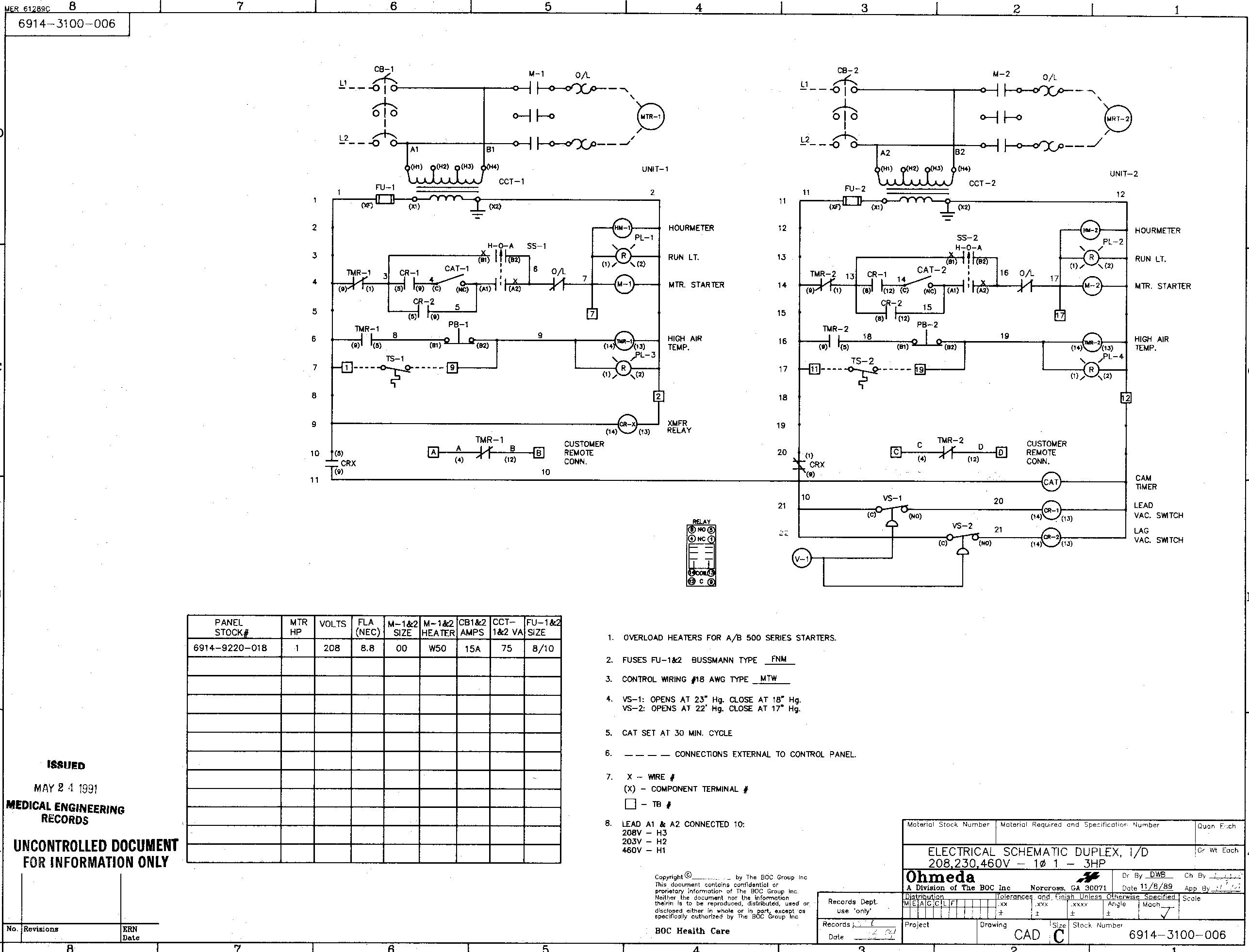

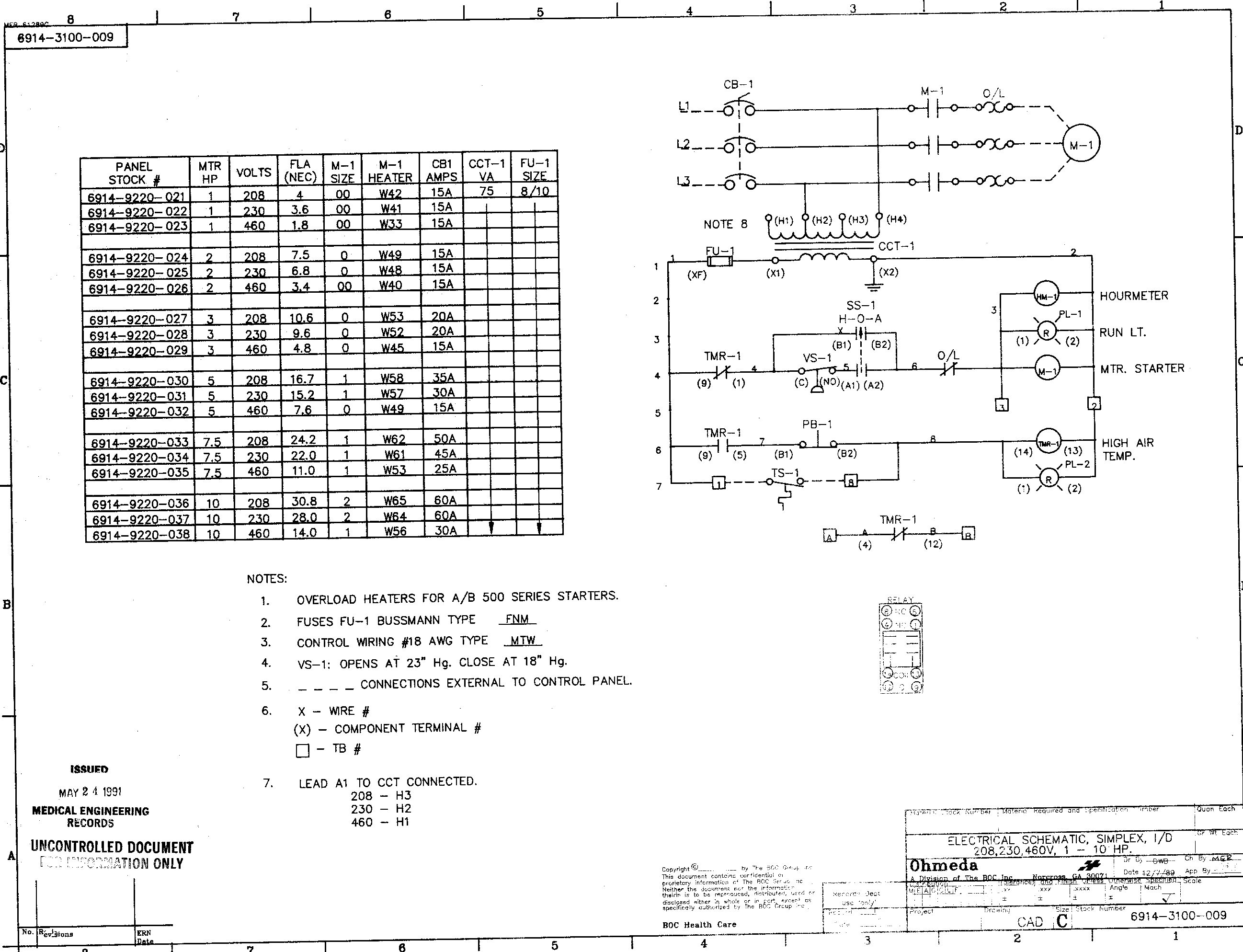

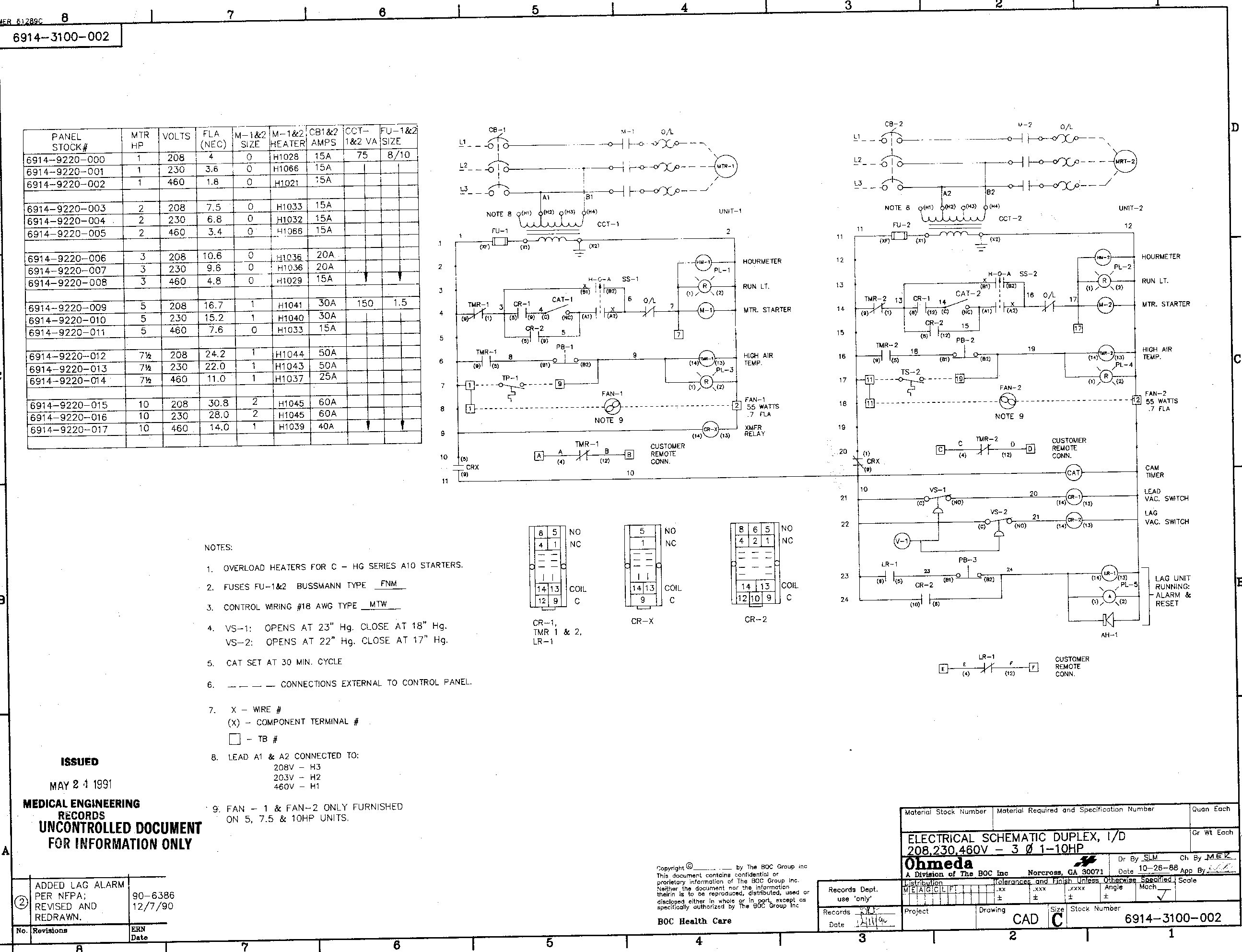

| 6914-3100-009 (12/7/89) | 6914-3100-002 (12/7/90) | 6914-3100-006 (11/8/89) | 6914-3100-007 (11/13/89) |

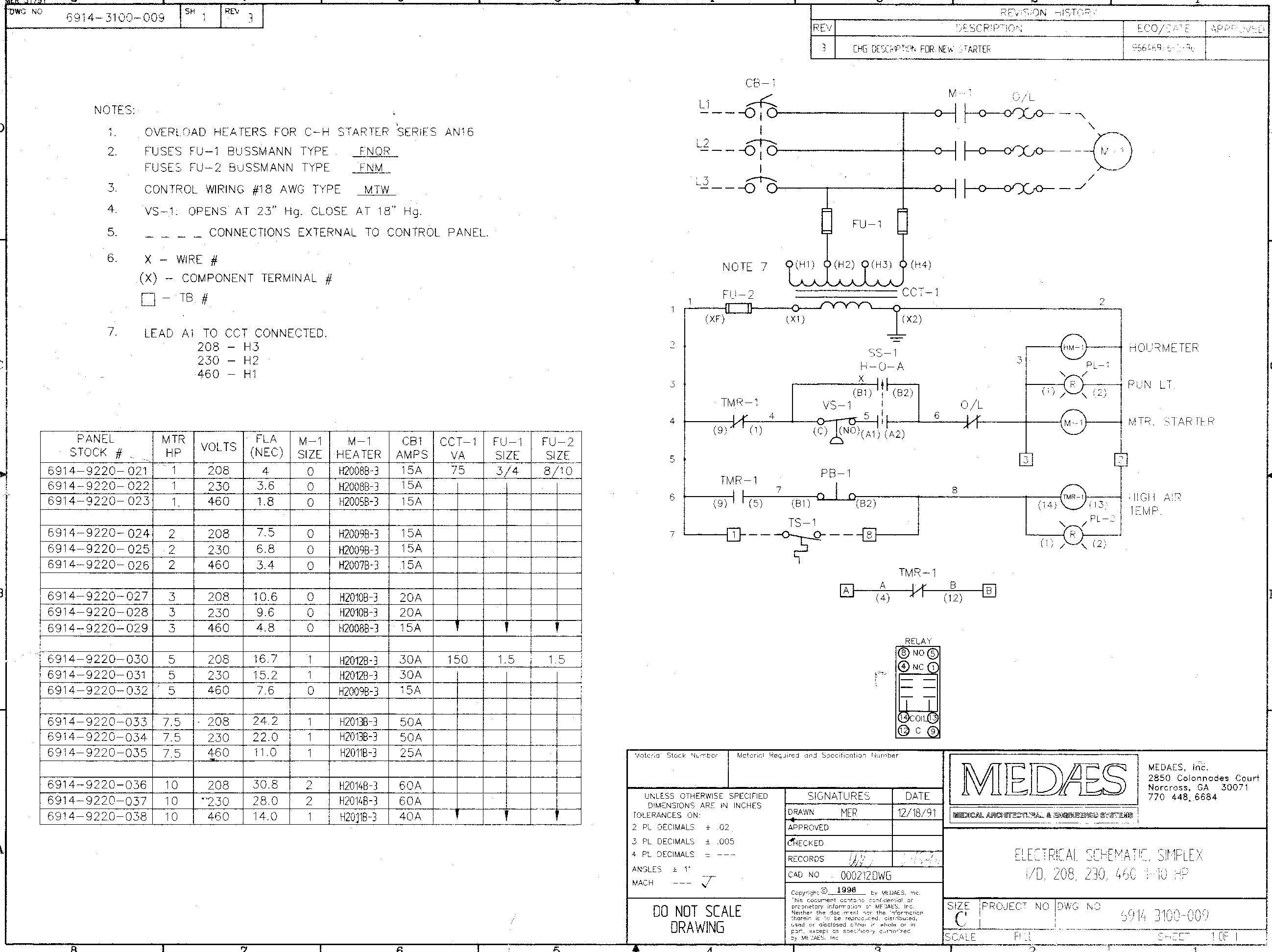

| 6914-3100-009 (6/2/96) | 6914-3100-002 (5/31/96) | ||
