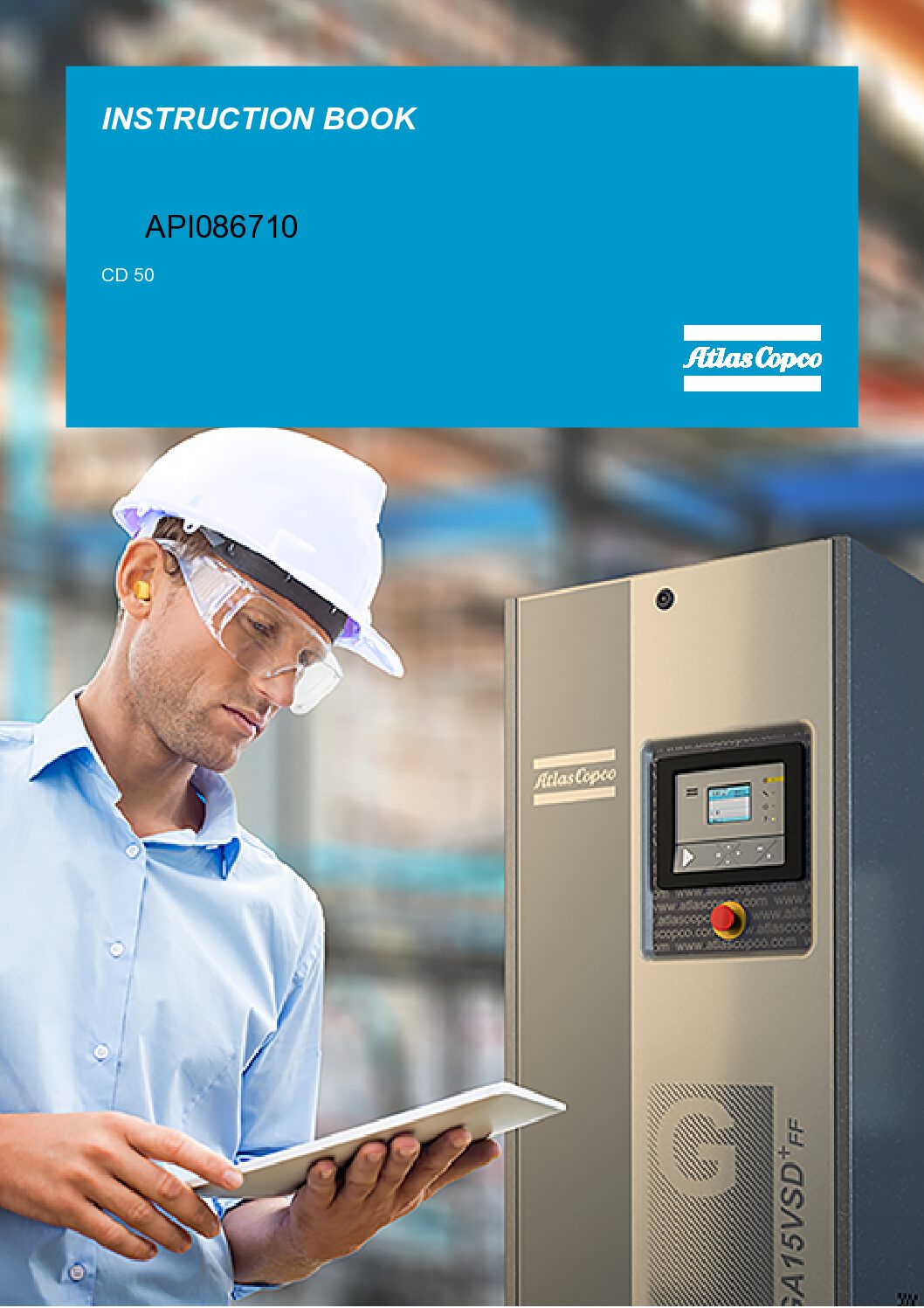

ATLAS COPCO INSTRUCTION BOOK
View or Download

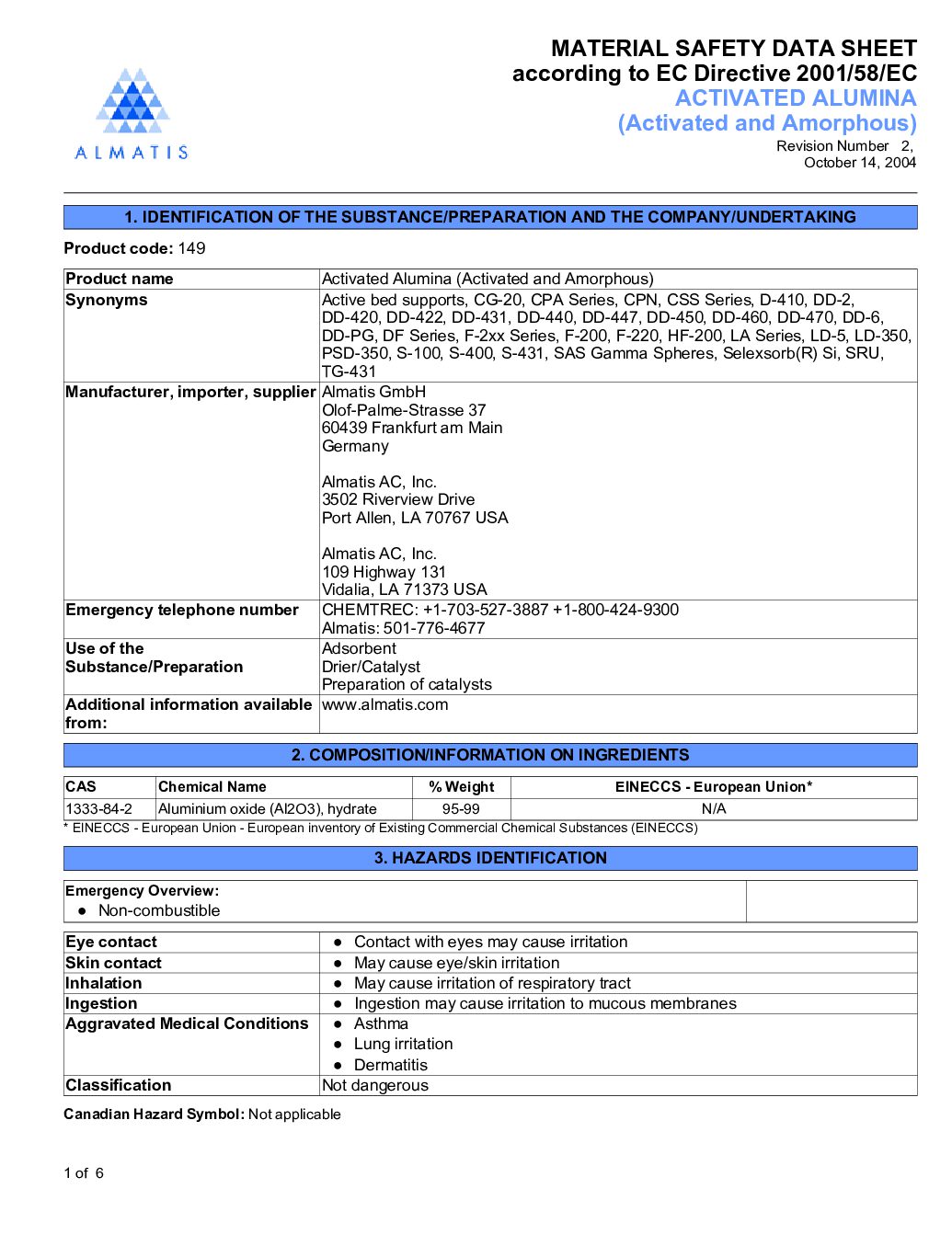

Act_Alum_USA_Source
View or Download

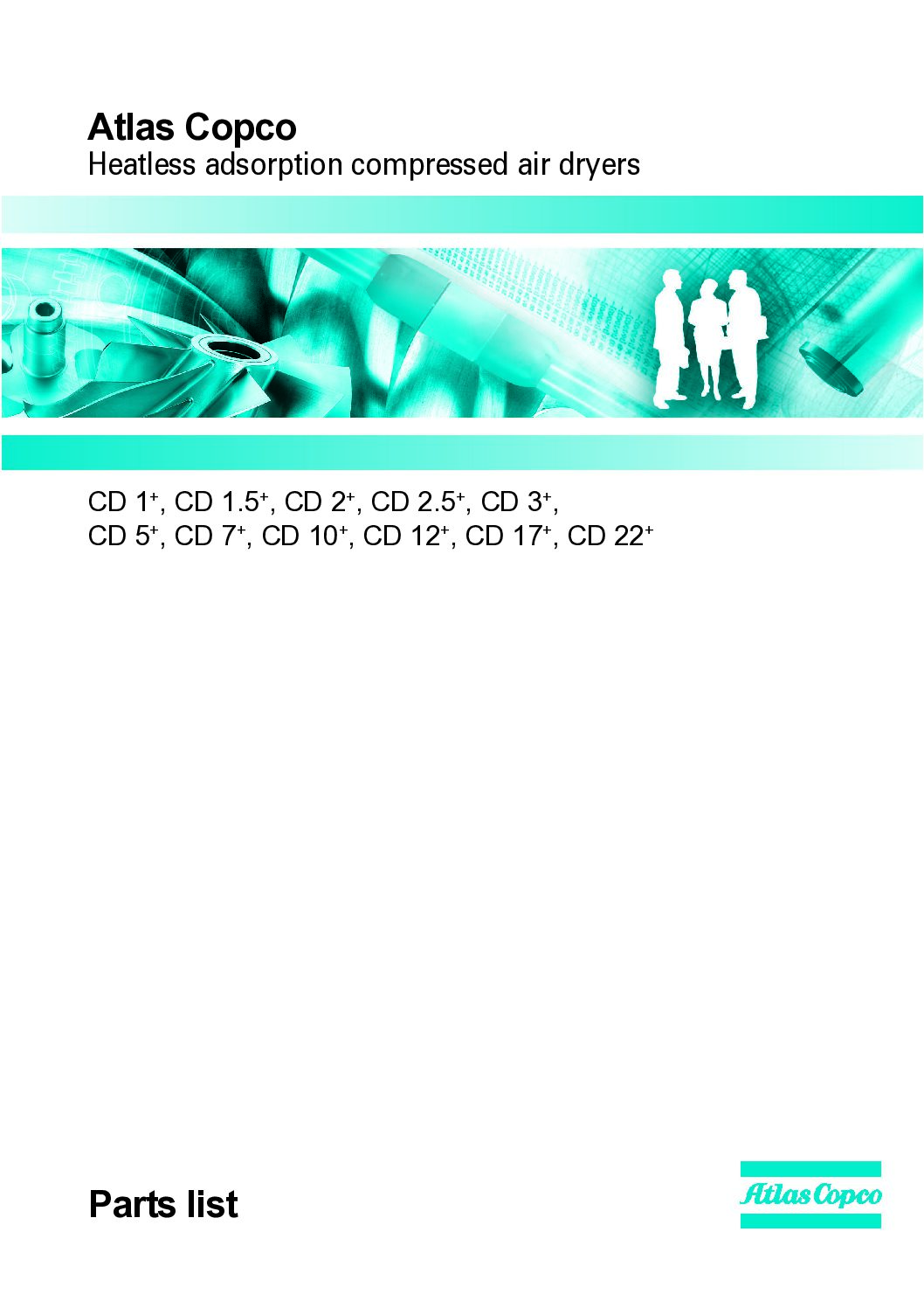

CD 1 - 22 Plus Parts List
View or Download
CD 2 3 4 7 12 17 24 32 O&M and parts
View or Download
CD 2-32 parts list
View or Download
CD 25 - 100 11 Bar Parts List
View or Download

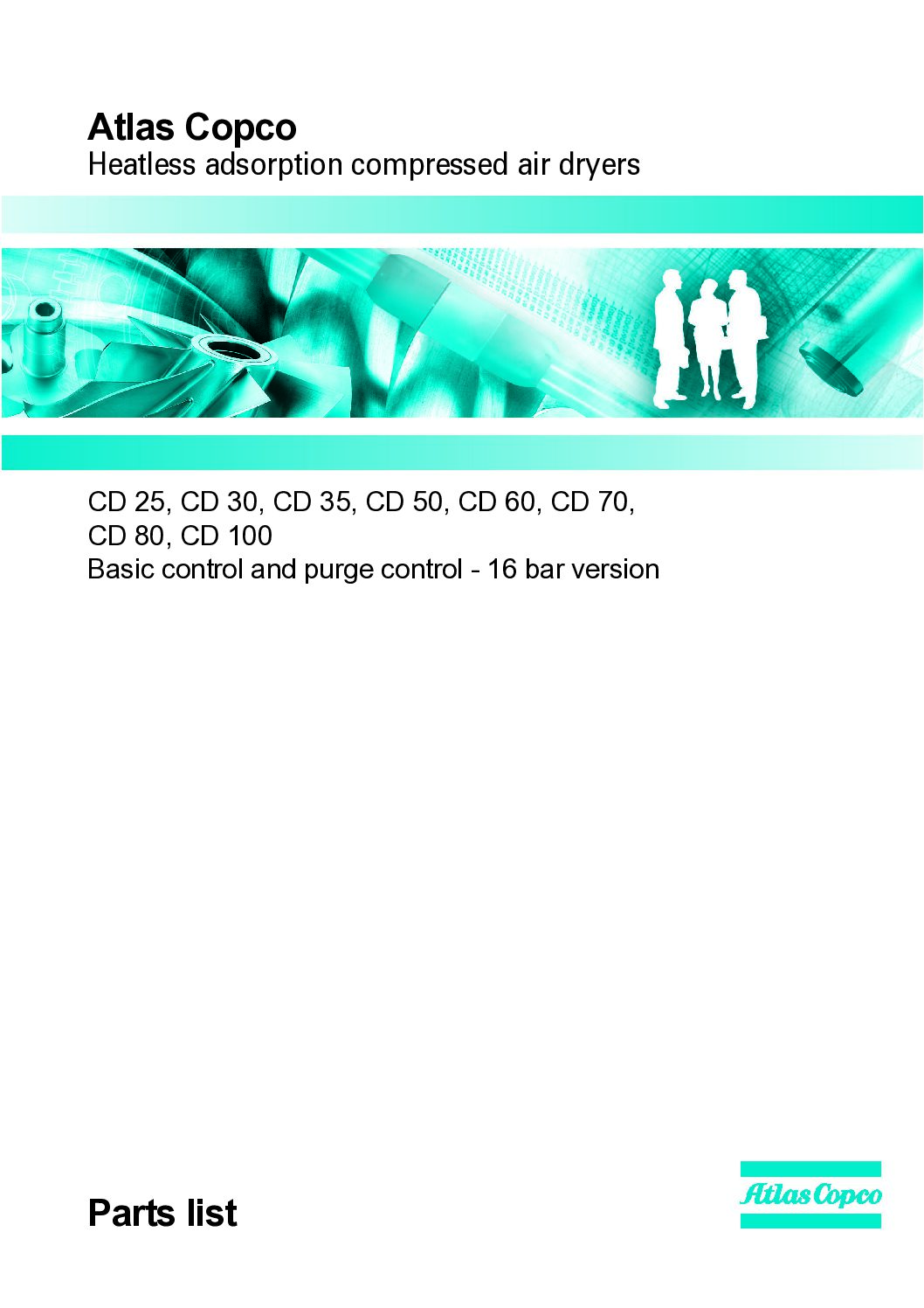

CD 25 - 100 16 Bar Parts List
View or Download
CD 25, CD 30, CD 35, CD 50, CD 60, CD 70,
View or Download

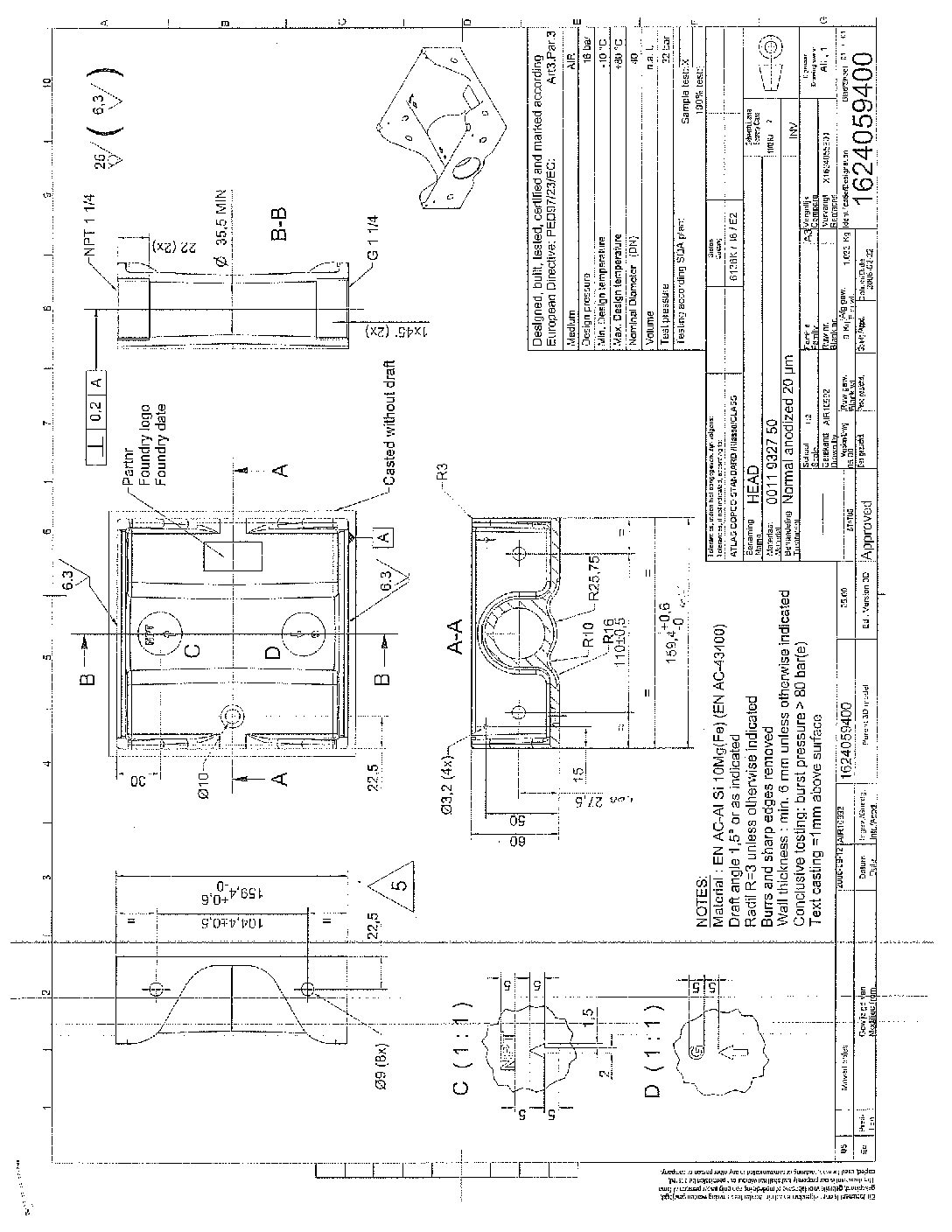

CD dryer head cross sectional
View or Download

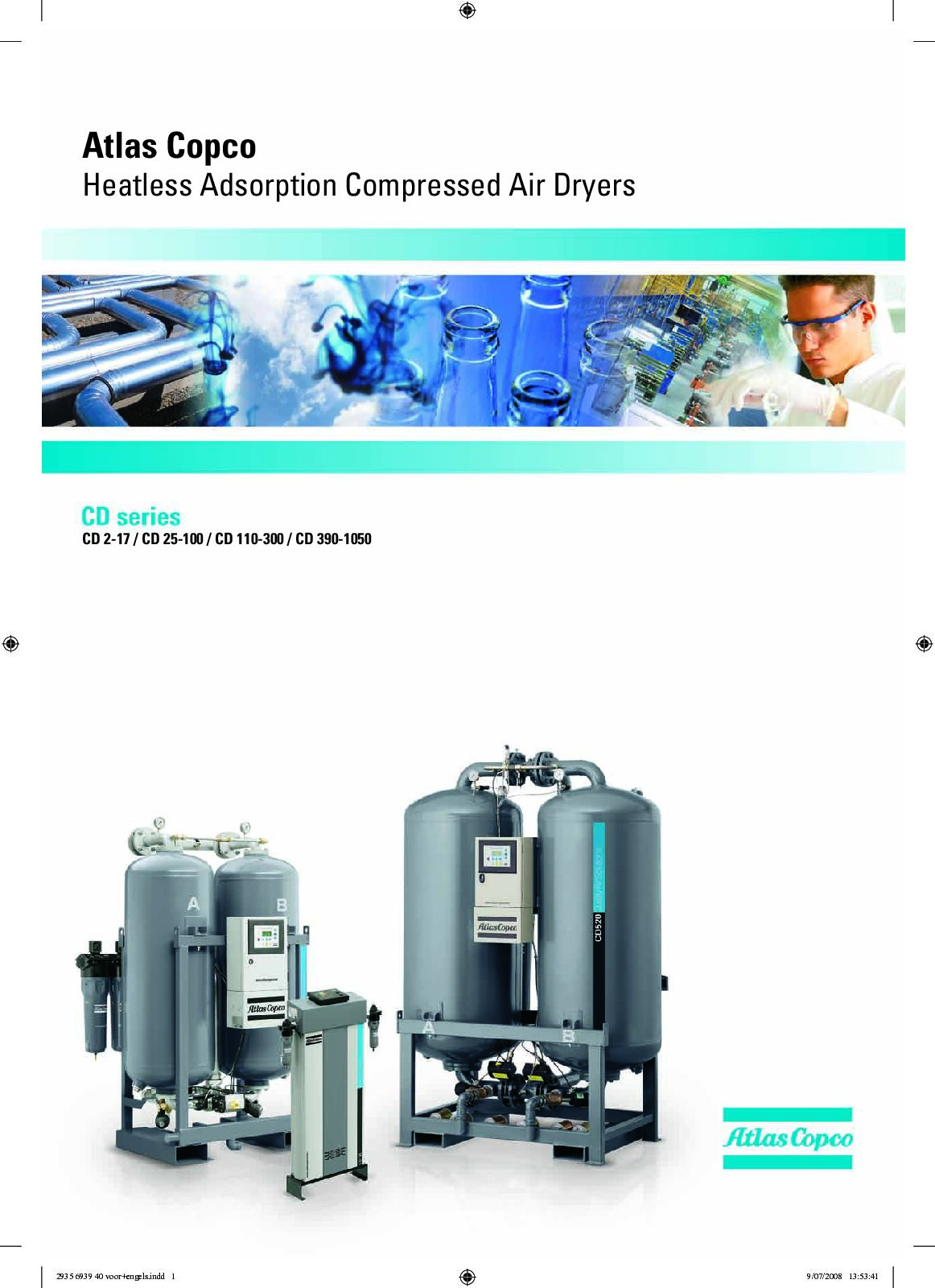

CD series leaflet
View or Download
CD1-22 Parts List
View or Download
CD110-300 Elektronikon Purge Control Parts List
View or Download

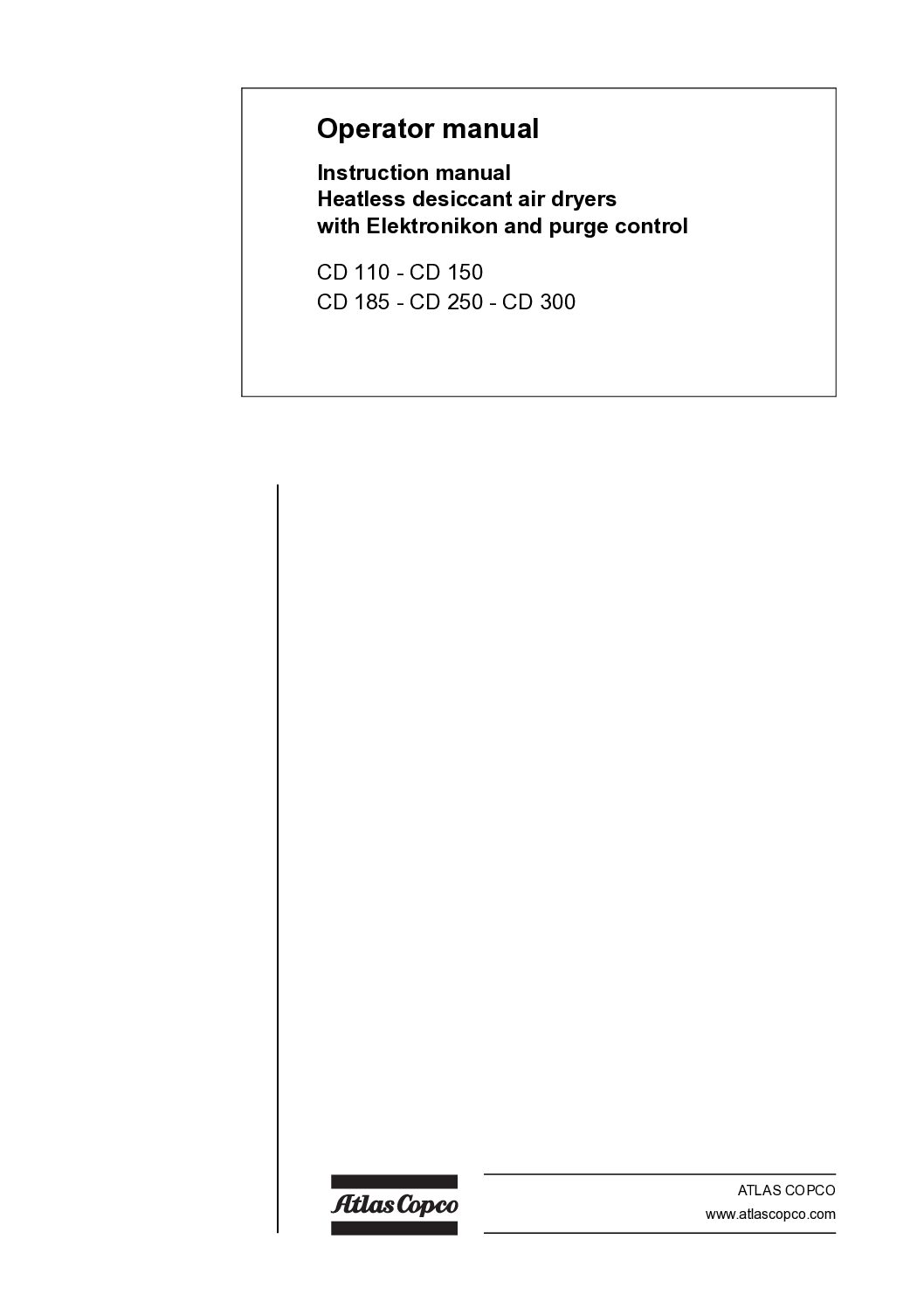

CD110-300 O&M Elektronikon Control
View or Download
CD110-300 O&M
View or Download
CD110-300 flow dia
View or Download
CD110-300 parts
View or Download
CD2-32 O&M
View or Download
CD2-32 options
View or Download
CD25-100 O&M
View or Download
CD25-100_drier_partslist
View or Download
Dimension CD25 and CD30
View or Download
ECB API 0524 CD Desiccant cartridge to loose desiccant conversion
View or Download
EM Page from CD2-17 purge control manual
View or Download
Scope CD25-100
View or DownloadEquipment Description
The Atlas Copco CD 1-22 series are heatless desiccant air dryers used to remove moisture from compressed medical air systems. They feature dual-tower desiccant cartridges with timed purge cycles and are available in models from CD 1 through CD 22, with service plans at 6,000, 12,000, and 24,000 hour intervals.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
| Model | Service Plan A 6,000 hrs | Service Plan B 12,000 hrs | Service Plan C 24,000 hrs 115V | Service Plan C 24,000 hrs 230V |
| CD 1 | 2230 0024 90 | 2230 0024 91 | 2230 0024 92 | 2230 0024 93 |
| CD 1.5 | 2230 0024 90 | 2230 0025 91 | 2230 0025 92 | 2230 0025 93 |
| CD 2 | 2230 0024 90 | 2230 0026 91 | 2230 0026 92 | 2230 0026 93 |
| CD 2.5 | 2230 0024 90 | 2230 0027 91 | 2230 0027 92 | 2230 0027 93 |
| CD 3 | 2230 0024 90 | 2230 0028 91 | 2230 0028 92 | 2230 0028 93 |
| CD 5 | 2230 0029 90 | 2230 0029 91 | 2230 0029 92 | 2230 0029 93 |
| CD 7 | 2230 0029 90 | 2230 0030 91 | 2230 0030 92 | 2230 0030 93 |
| CD 7 Prima | 2230 0029 90 | 2230 0031 91 | 2230 0031 92 | 2230 0031 93 |
| CD 10 | 2230 0029 90 | 2230 0032 91 | 2230 0032 92 | 2230 0032 93 |
| CD 12 | 2230 0033 90 | 2230 0033 91 | 2230 0033 92 | 2230 0033 93 |
| CD 17 | 2230 0033 90 | 2230 0034 91 | 2230 0034 92 | 2230 0034 93 |
| CD 22 | 2230 0033 90 | 2230 0035 91 | 2230 0035 92 | 2230 0035 93 |
| Service Plan Kits BOM | |||
| Plan A | Kit Contents | ||
| 2230 0024 90 | 1 2 | 2230 0084 00 1624 7308 00 | Inlet Filter Kit Silencer |
| 2230 0029 90 | 1 2 | 2901 0521 00 1624 7258 00 | Inlet Filter Kit Silencer |
| 2230 0033 90 | 1 2 | 2901 0524 00 1624 7258 00 | Inlet Filter Kit Silencer |
| Plan B | Kit Contents | ||
| 2230 0024 91 | 1 1 | 2330 0024 90 2330 0040 00 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0025 91 | 1 1 | 2330 0024 90 2330 0040 01 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0026 91 | 1 1 | 2330 0024 90 2330 0040 02 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0027 91 | 1 1 | 2330 0024 90 2330 0040 03 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0028 91 | 1 1 | 2330 0024 90 2330 0040 04 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0029 91 | 1 1 | 2330 0029 90 2330 0040 05 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0030 91 | 1 1 | 2330 0029 90 2330 0040 06 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0031 91 | 1 1 | 2330 0029 90 2330 0040 06 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0032 91 | 1 1 | 2330 0029 90 2330 0040 07 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0033 91 | 1 1 | 2330 0033 90 2330 0040 08 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0034 91 | 1 1 | 2330 0033 90 2330 0040 09 | Service Plan A - 6,000 hrs Desiccant Kit |
| 2230 0035 91 | 1 1 | 2330 0033 90 2330 0040 10 | Service Plan A - 6,000 hrs Desiccant Kit |
| Plan C 115V | Kit Contents | ||
| 2230 0024 92 | 1 1 1 | 2230 0024 91 2230 0040 11 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0025 92 | 1 1 1 | 2230 0025 91 2230 0040 11 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0026 92 | 1 1 1 | 2230 0026 91 2230 0040 11 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0027 92 | 1 1 1 | 2230 0027 91 2230 0040 11 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0028 92 | 1 1 1 | 2230 0028 91 2230 0040 11 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0029 92 | 1 1 1 | 2230 0029 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0030 92 | 1 1 1 | 2230 0030 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0031 92 | 1 1 1 | 2230 0031 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0032 92 | 1 1 1 | 2230 0032 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0033 92 | 1 1 1 | 2230 0033 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0034 92 | 1 1 1 | 2230 0034 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0035 92 | 1 1 1 | 2230 0035 91 2230 0040 12 2230 0040 14 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| Plan C 230V | Kit Contents | ||
| 2230 0024 93 | 1 1 1 | 2230 0024 91 2230 0040 11 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0025 93 | 1 1 1 | 2230 0025 91 2230 0040 11 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0026 93 | 1 1 1 | 2230 0026 91 2230 0040 11 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0027 93 | 1 1 1 | 2230 0027 91 2230 0040 11 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0028 93 | 1 1 1 | 2230 0028 91 2230 0040 11 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0029 93 | 1 1 1 | 2230 0029 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0030 93 | 1 1 1 | 2230 0030 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0031 93 | 1 1 1 | 2230 0031 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0032 93 | 1 1 1 | 2230 0032 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0033 93 | 1 1 1 | 2230 0033 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0034 93 | 1 1 1 | 2230 0034 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| 2230 0035 93 | 1 1 1 | 2230 0035 91 2230 0040 12 2230 0040 15 | Service Plan B - 12,000 hrs Control Valve Kit Solenoid Kit |
| Inlet Filter Kit | Kit Contents | ||
| 2230 0084 00 | 1 1 1 1 1 | 1624 7341 00 0663 2112 69 0663 2108 33 2904 0122 00 9827 8307 00 | Filter Element O-Ring O-Ring Label Instruction |
| 2901 0521 00 | 1 1 1 1 1 | 0663 9868 00 1617 7039 01 0663 9244 00 2904 0120 00 2904 0122 00 | O-Ring Filter Element O-Ring Instruction Label |
| 2901 0524 00 | 1 1 1 1 1 | 0663 9868 00 1617 7039 05 0663 9244 00 2904 0120 00 2904 0122 00 | O-Ring Filter Element O-Ring Instruction Label |
| Desiccant Kit | Kit Contents | ||
| 2230 0040 00 | 2 2 1 1 1 | 1624 7212 00 1624 7295 00 9827 8304 00 1624 7345 00 1624 7347 00 | Desiccant Cartridge O-Ring Instruction Purge Nozzle Extractor Pod Purge Nozzle Extractor Claw |
| 2230 0040 01 | 2 2 1 1 1 | 1624 7213 00 1624 7295 00 9827 8304 00 1624 7345 00 1624 7347 00 | Desiccant Cartridge O-Ring Instruction Purge Nozzle Extractor Pod Purge Nozzle Extractor Claw |
| 2230 0040 02 | 2 2 1 1 1 | 1624 7214 00 1624 7295 00 9827 8304 00 1624 7345 00 1624 7347 00 | Desiccant Cartridge O-Ring Instruction Purge Nozzle Extractor Pod Purge Nozzle Extractor Claw |
| 2230 0040 03 | 2 2 1 1 1 | 1624 7215 00 1624 7295 00 9827 8304 00 1624 7345 00 1624 7347 00 | Desiccant Cartridge O-Ring Instruction Purge Nozzle Extractor Pod Purge Nozzle Extractor Claw |
| 2230 0040 04 | 2 2 1 1 1 | 1624 7216 00 1624 7295 00 9827 8304 00 1624 7345 00 1624 7347 00 | Desiccant Cartridge O-Ring Instruction Purge Nozzle Extractor Pod Purge Nozzle Extractor Claw |
| 2230 0040 05 | 2 1 | 1624 7217 00 9827 8305 00 | Desiccant Cartridge Instruction |
| 2230 0040 06 | 2 1 | 1624 7218 00 9827 8305 00 | Desiccant Cartridge Instruction |
| 2230 0040 07 | 2 1 | 1624 7219 00 9827 8305 00 | Desiccant Cartridge Instruction |
| 2230 0040 08 | 2 1 | 1624 7220 00 9827 8305 00 | Desiccant Cartridge Instruction |
| 2230 0040 09 | 2 1 | 1624 7221 00 9827 8305 00 | Desiccant Cartridge Instruction |
| 2230 0040 10 | 2 1 | 1624 7222 00 9827 8305 00 | Desiccant Cartridge Instruction |
| Control Valve Kit | Kit Contents | ||
| 2230 0040 11 | 2 1 2 2 2 2 2 2 | 1624 7299 00 1624 7300 00 1624 7301 00 1624 7302 00 1624 7303 00 1624 7304 00 1624 7305 00 1624 7335 00 | O-Ring Shuttle O-Ring O-Ring Exhaust Valve Seat Diaphragm Spring O-Ring |
| 2230 0040 12 | 2 1 2 2 2 2 2 2 | 1624 7299 00 1624 7300 00 1624 7301 00 1624 7302 00 1624 7303 00 1624 7304 00 1624 7305 00 1624 7335 00 | O-Ring Shuttle O-Ring O-Ring Exhaust Valve Seat Diaphragm Spring O-Ring |
| Solenoid Valve Kit | Kit Contents | ||
| 2230 0040 14 | 2 2 2 | 1624 7274 00 1624 7275 00 1624 7277 00 | Gasket Solenoid Valve Nipple |
| 2230 0040 15 | 2 2 2 | 1624 7274 00 1624 7276 00 1624 7277 00 | Gasket Solenoid Valve Nipple |
| DIN Connector Kit | Kit Contents | ||
| 2230 0040 13 | 2 2 4 2 2 | 1624 7278 00 1624 7279 00 1624 7280 00 1624 7281 00 7624 7282 00 | Gasket Base Screw Gasket Connector |
| O-Ring Kit | Kit Contents | ||
| 2230 0040 27 | 3 4 4 | 1624 7296 00 1624 7286 00 1624 7287 00 | O-Ring O-Ring O-Ring |
| 2230 0040 28 | 2 4 4 2 1 | 1624 7230 00 1624 7231 00 1624 7232 00 1624 7244 00 1624 7245 00 | O-Ring O-Ring O-Ring O-Ring O-Ring |
