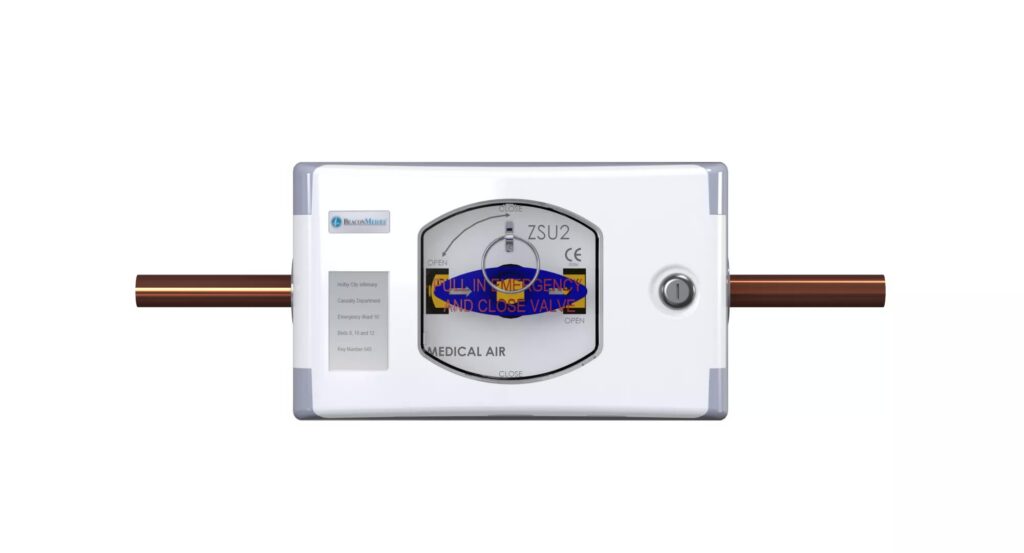

BeaconMedaes ZSU2 Zone Service Unit

Equipment Description

The BeaconMedaes ZSU2 Zone Service Unit is the HTM 02-01 / BS EN ISO 7396-1 zone valve for wards, ICUs, and theatres. It gives a labeled, gas-specific shut-off so a zone can be isolated in a fire or pipeline fault.

Emergency access is built into the door. Sensor ports on both sides of the valve accept a local alarm. The enclosure is made for surface or concealed mounting. Gas-specific connections and labels block cross-connection. Not the Medizone/Wallzone area service module, Medipoint alarm, GEM Shield, or NFPA zone valve boxes.

Key Features

• Rapid emergency shut-off for a single zone
• HTM 02-01 and BS EN ISO 7396-1 compliance
• Gas-specific connections and labels
• Left and right pressure-sensor ports for a local alarm
• Surface or concealed mounting
• Emergency access mechanism on the door

Mounting

Surface

Surface-mounted ZSU2 enclosure.

Concealed

Concealed / flush ZSU2 enclosure. Same valve family.
