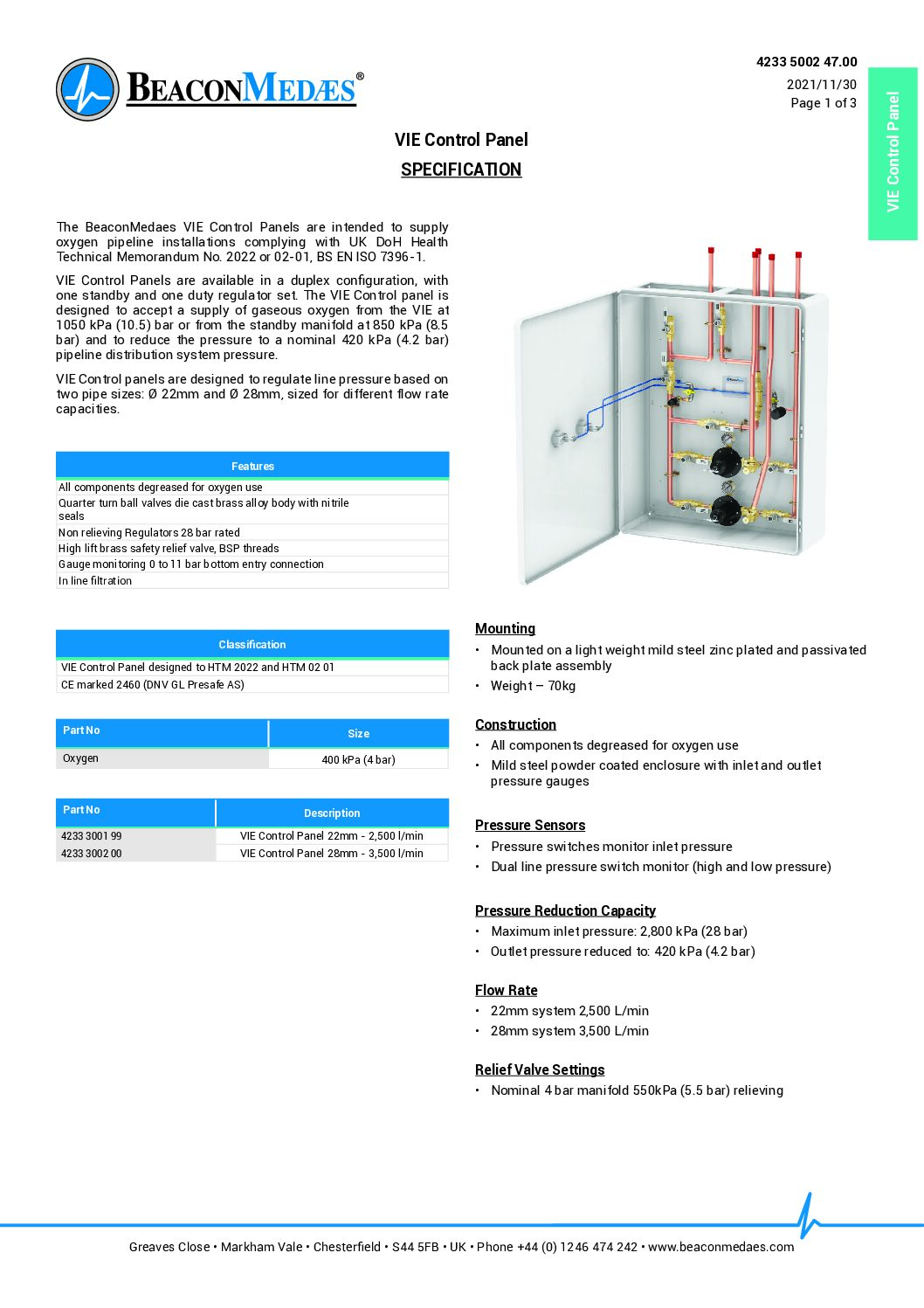

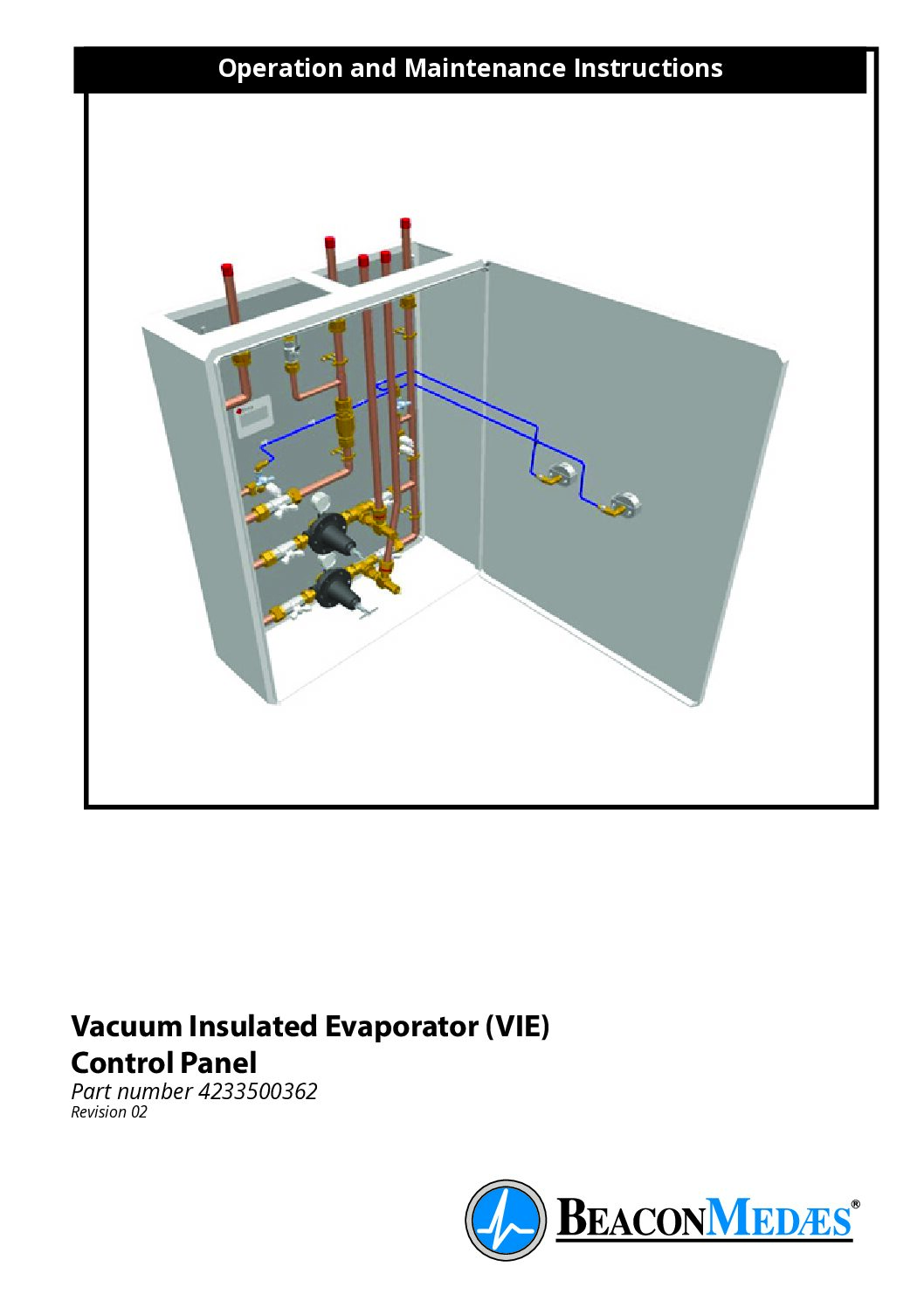

Documents & Manuals: View or Download
Equipment Description

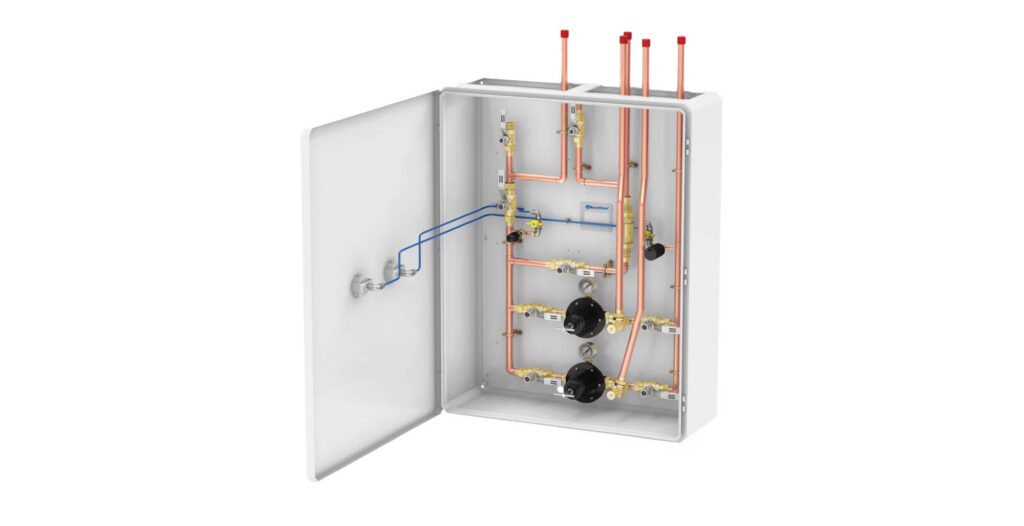

The BeaconMedaes VIE Control Panel is the HTM 02-01 vacuum-insulated evaporator panel that holds medical oxygen at a steady pipeline pressure. It uses a dual configuration so one side can stay in service while the other is isolated.
All wetted parts are degreased for oxygen. Non-relieving regulators are rated to 28 bar. Inlet and dual line-pressure switches watch high and low conditions. The assembly sits on a zinc-plated, passivated back plate inside a powder-coated mild-steel enclosure with inlet and outlet gauges. It conforms to UK DoH HTM 02-01 and BS EN ISO 7396-1. Not MAT-S, Lifeline HPxHP, the emergency reserve manifold, or a pressure-reducing set.
Key Features
- Dual configuration for uninterrupted medical oxygen
- HTM 02-01 and BS EN ISO 7396-1 compliance
- Oxygen-cleaned, degreased components
- Non-relieving regulators rated to 28 bar
- Inlet plus dual high/low line-pressure switches
- Zinc-plated passivated back plate
- Powder-coated enclosure with inlet and outlet gauges
Components
HTM 02-01 VIE Control Panel
Standard HTM VIE control panel for bulk liquid oxygen. Official page and documents are the UK HTM set.
