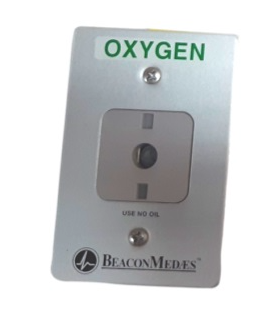

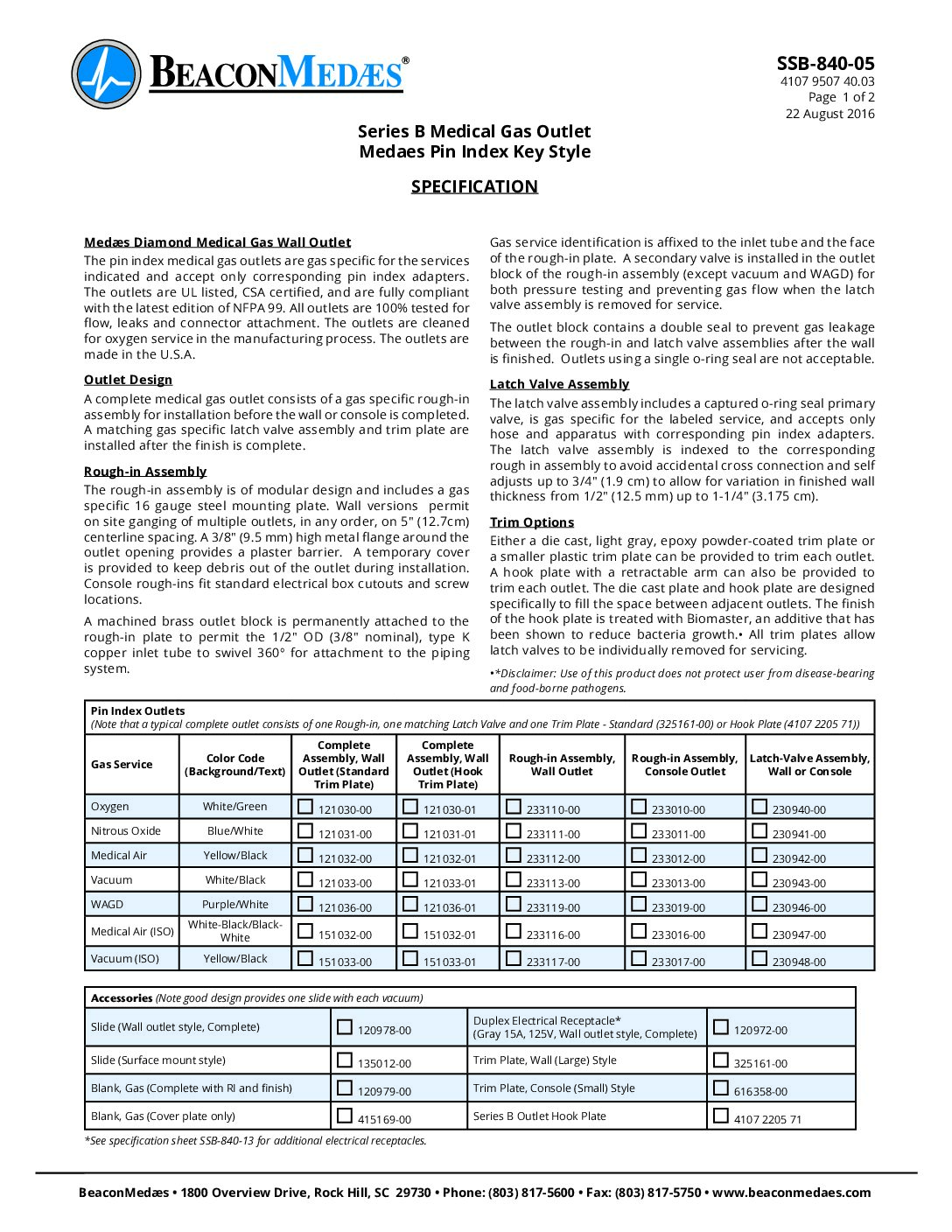

BeaconMedaes Series B Pin-Index Outlet Finish Assembly

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

The pin index medical gas outlets are gas specific for the services indicated and accept only corresponding pin index adapters. The latch valve assembly includes a captured o-ring seal primary valve, is gas specific for the labeled service, and accepts only corresponding hose and apparatus with corresponding pin index adapters. The latch valve assembly is indexed to the corresponding rough in assembly to avoid accidental cross connection and self adjusts up to 1.9 cm (3/4") to allow for variation in finished wall thickness from 12.5 mm (1/2") up to 3.175 cm (1 1/4").

Trim Options
Either a die cast, light gray, epoxy powder-coated trim plate or a smaller plastic trim plate can be provided to trim each outlet. The die cast plate is designed specifically to and to fill the space between adjacent outlets. Either trim plate allows latch valves to be individually removed for servicing.
