BeaconMedaes mVAC Lubricated Rotary Vane Medical Vacuum System

Equipment Description

The BeaconMedaes mVAC lubricated rotary vane medical vacuum system combines up to six air-cooled, oil-lubricated rotary vane pumps under a Mk5 Touch central controller. The plant holds vacuum below -600 mbar(e) for theatres, ICU, and ward suction, and is specified to HTM and ISO medical vacuum standards.

All interconnection piping and copper connections ship as part of the package. Each motor is air-cooled by an integral fan and protected by an overload in its pump panel. Duplex high-efficiency bacterial filters (penetration less than 0.005% when measured to BS 3928) protect the oil, and the controller monitors filter pressure drop continuously. The vacuum vessel is the mandatory backup if every pump is down and a buffer for peak flow.

Key Features

• Up to six oil-lubricated rotary vane pumps on one Mk5 Touch controller
• Regulated vacuum below -600 mbar(e)
• Duplex bacterial filtration with live pressure-drop monitoring
• Painted-steel vacuum vessel as backup and peak-flow buffer
• Integral interconnection piping and copper connections
• Medical alarms and service warnings for pumps and filters

Components

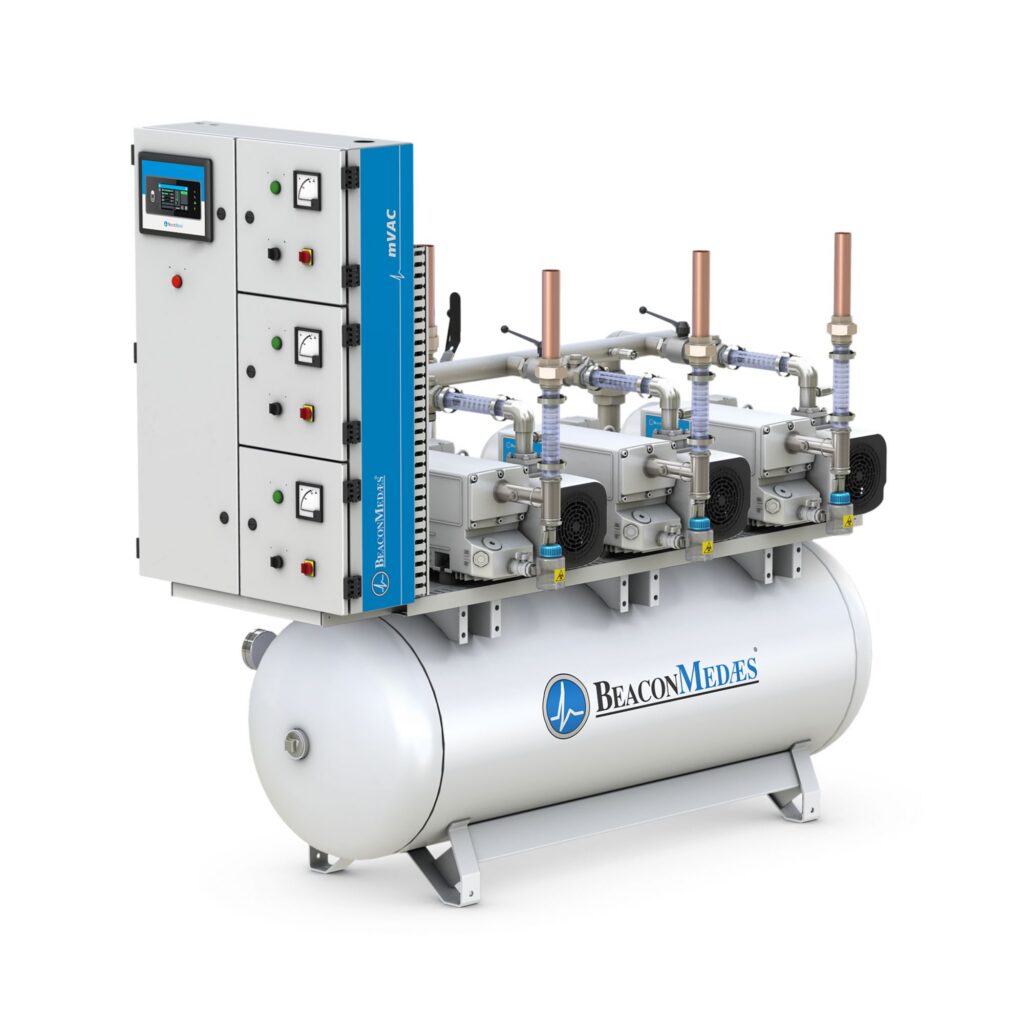

Tank-mounted plant

Official product photography shows the tank-mounted mVAC package (right and left views). This is the HTM/ISO mVAC family, not the US Lifeline lubricated vane plant and not the WVLS Wuxi SPC package.
