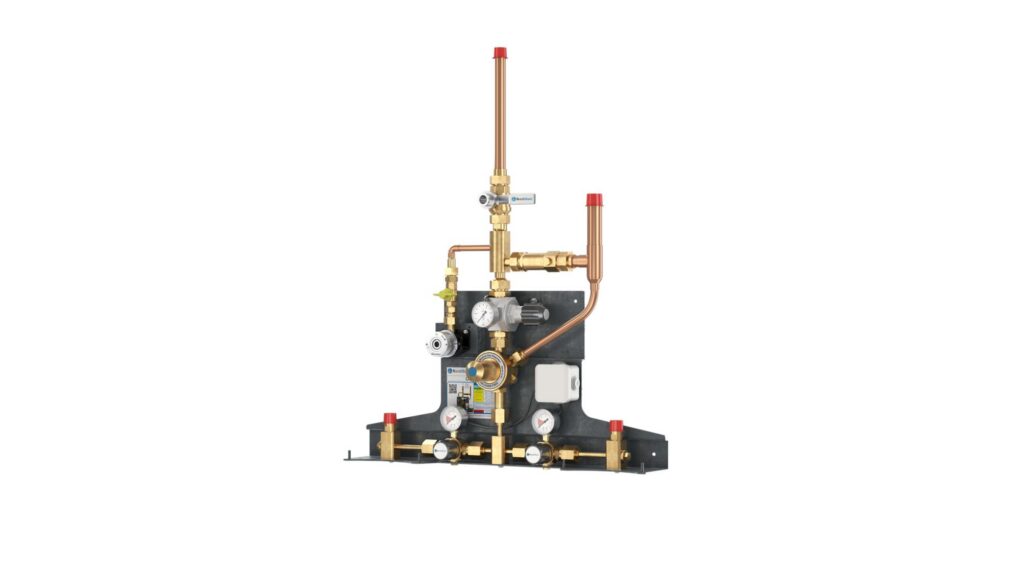

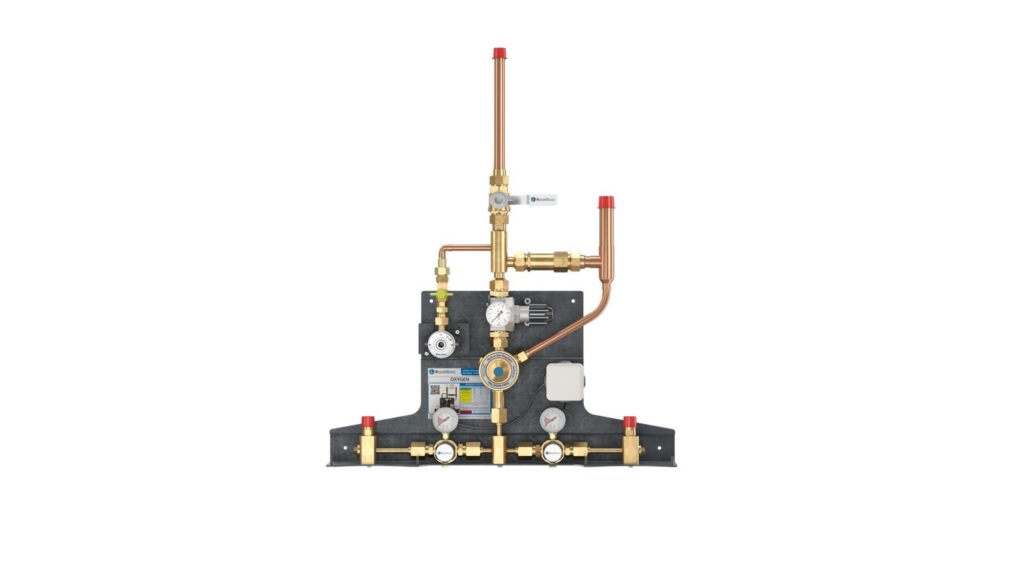

BeaconMedaes Emergency Reserve Manifold

Equipment Description

The BeaconMedaes Emergency Reserve Manifold (ERM) is a hospital backup manifold that supplies an alternative medical-gas source when the primary supply is exhausted. It conforms to HTM 02-01 and BS EN ISO 7396-1.

The open-frame design keeps valves and headers visible. Two-stage regulation holds high flow without a large downstream-pressure drop. Onboard test outlets support purity checks. Non-return valves use a metallic seat and ceramic ball, with no polymers or elastomers. Cylinder-bank layout and 400 kPa, 700 kPa, or 1100 kPa delivery are selected to the facility.

Key Features

• Automatic reserve activation when the primary supply fails
• HTM 02-01 and BS EN ISO 7396-1 compliance
• Open frame with visual valve and header indication
• Two-stage regulation for steady high flow
• Onboard test outlets for purity verification
• Reserve Low / Reserve Fault alarm sensors
• 400 kPa, 700 kPa, or 1100 kPa delivery

Components

HTM 02-01 ERM

Standard HTM 02-01 emergency reserve manifold. Not Lifeline HPxHP, MAT-S, or header-and-rack hardware.

ECO ERM

ECO instruction-book variant of the same emergency reserve family.
