BeaconMedaes Area Service Unit Module

Equipment Description

The BeaconMedaes Area Service Unit Module is the HTM 02-01 / ISO 7396-1 area valve service unit (AVSU). Medizone and Wallzone are the two enclosure styles. Both carry a gas-specific emergency shut-off and ship with a pre-configured Medipoint 26 digital alarm.

The module isolates one pipeline so staff can reach the line in a fire or malfunction without shutting the whole plant. Doors are tamper-resistant. Sizes and configurations follow the ward or theatre layout. Not ZSU2, Medipoint as a standalone alarm, Zeus/East SP outlets, or NFPA zone valve boxes.

Key Features

• Emergency shut-off with Medipoint 26 local alarm
• HTM 02-01 and ISO 7396-1 compliance
• Gas-specific connections
• Tamper-resistant enclosure
• Medizone and Wallzone enclosure styles
• Multiple sizes for ward and theatre layouts

Components

Medizone

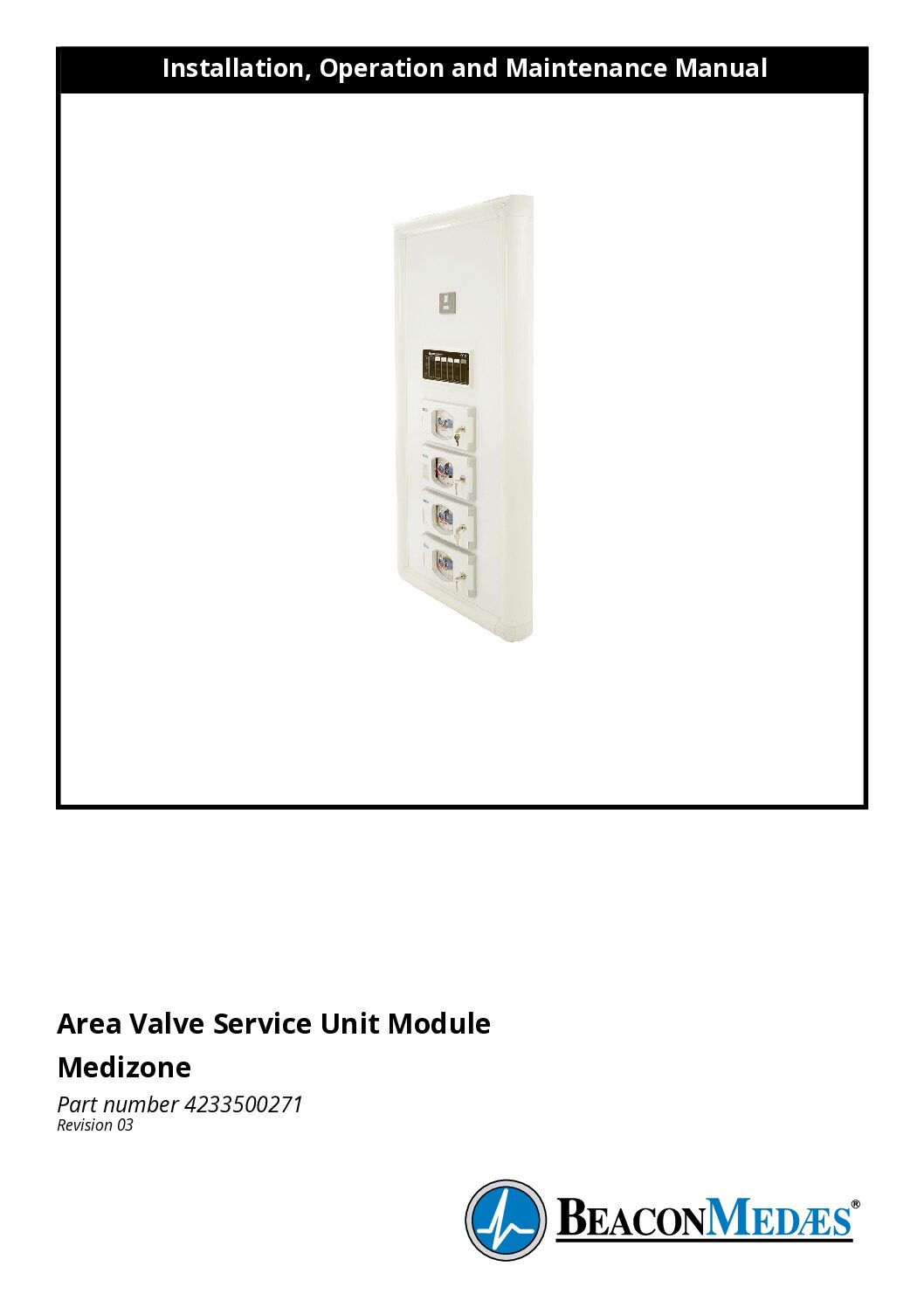

Medizone AVSU module with Medipoint 26. Official datasheet 4233500141 and Medizone instruction book 4233500271.

Wallzone

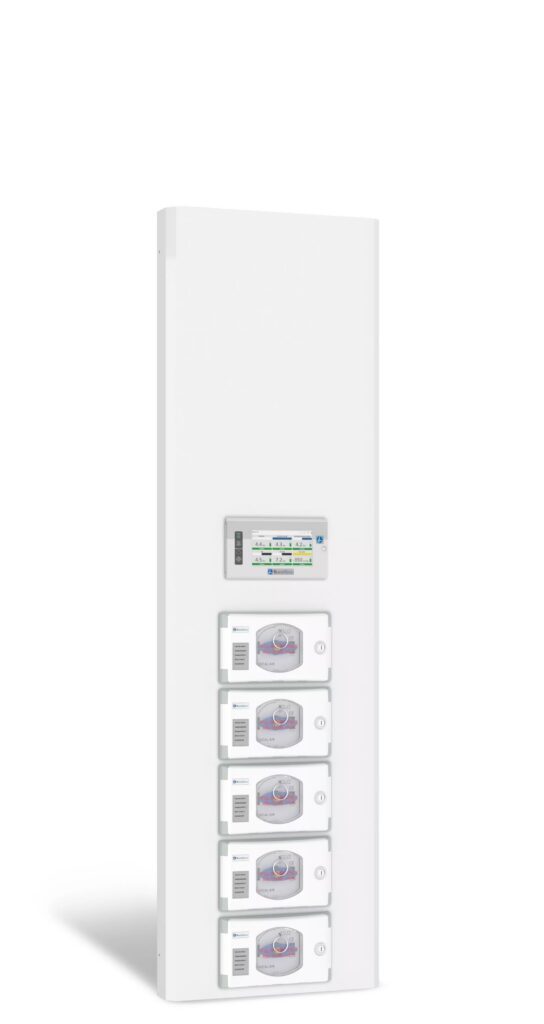

Wallzone AVSU module with Medipoint 26. Official datasheet 4233500248 and Wallzone instruction book 4233500241.
