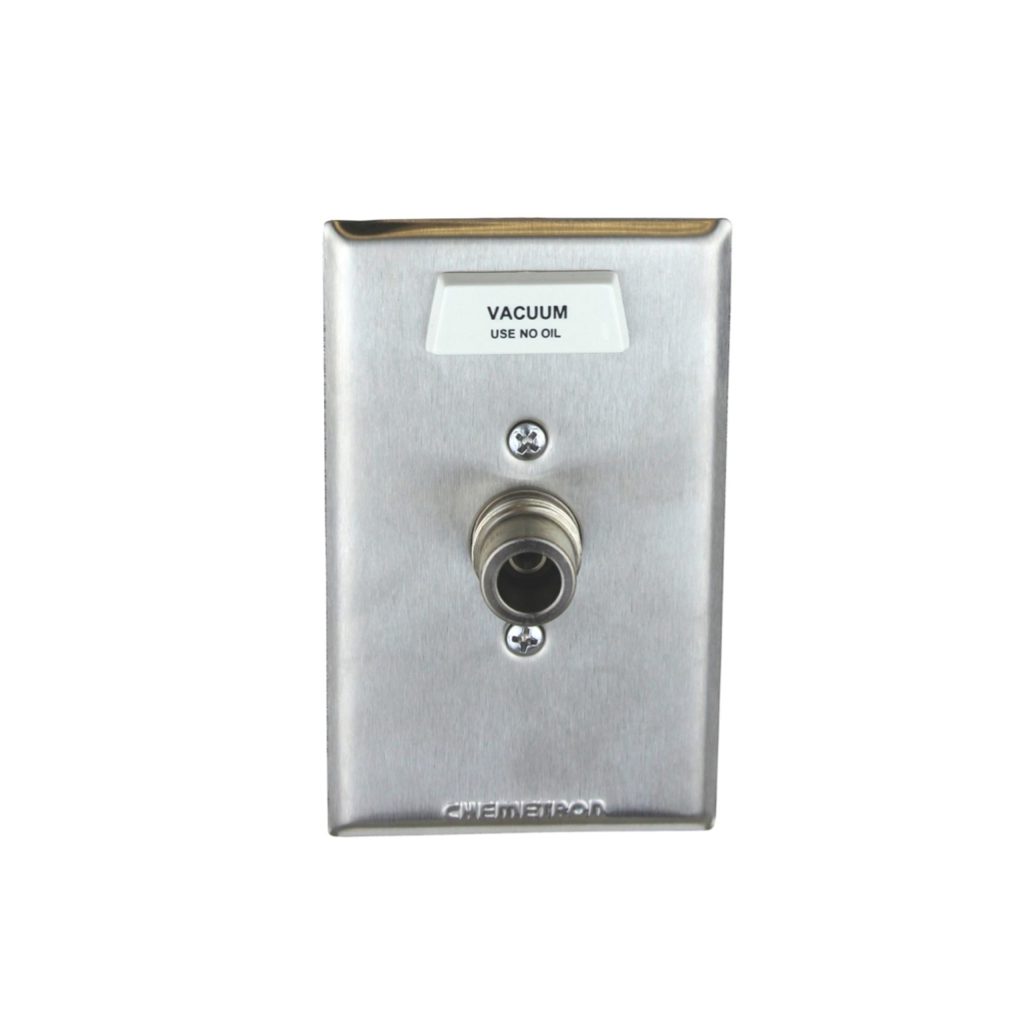

Allied 460 Series Chemetron® DISS Medical Gas Outlets
Equipment Description
The Chemetron® DISS outlet stations provide convenient access to medical gases in patient care locations. They are fully compatible with DISS style diameter indexed threaded adapters.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
Key Features
- Safety keyed to help prevent cross-connections
- Rough-in channel box protected by metal plaster guard until final assembly
- Adjustable valve mechanism to compensate for variations in plaster thicknesses up to 3/8″
- Cleaned for oxygen service
- UL listed
Part Numbers
| Gas Service | Part Number - Wide Faceplate (2.75") |
|---|---|
| Oxygen | 64-35-0001 |
| Vacuum | 64-35-0004 |
| Air | 64-35-0002 |
| Nitrous Oxide | 64-35-0005 |
| Evacuation Vacuum | 64-35-0009 |
| Carbon Dioxide | 64-35-0003 |
| Oxygen/CO2 (CO2 less than 7%) | 64-35-0008 |
| Nitrogen | 64-35-0010 |
| Slide Bracket | 64-59-1212 |
