Zander / Parker K-MT 1-8 Dryers

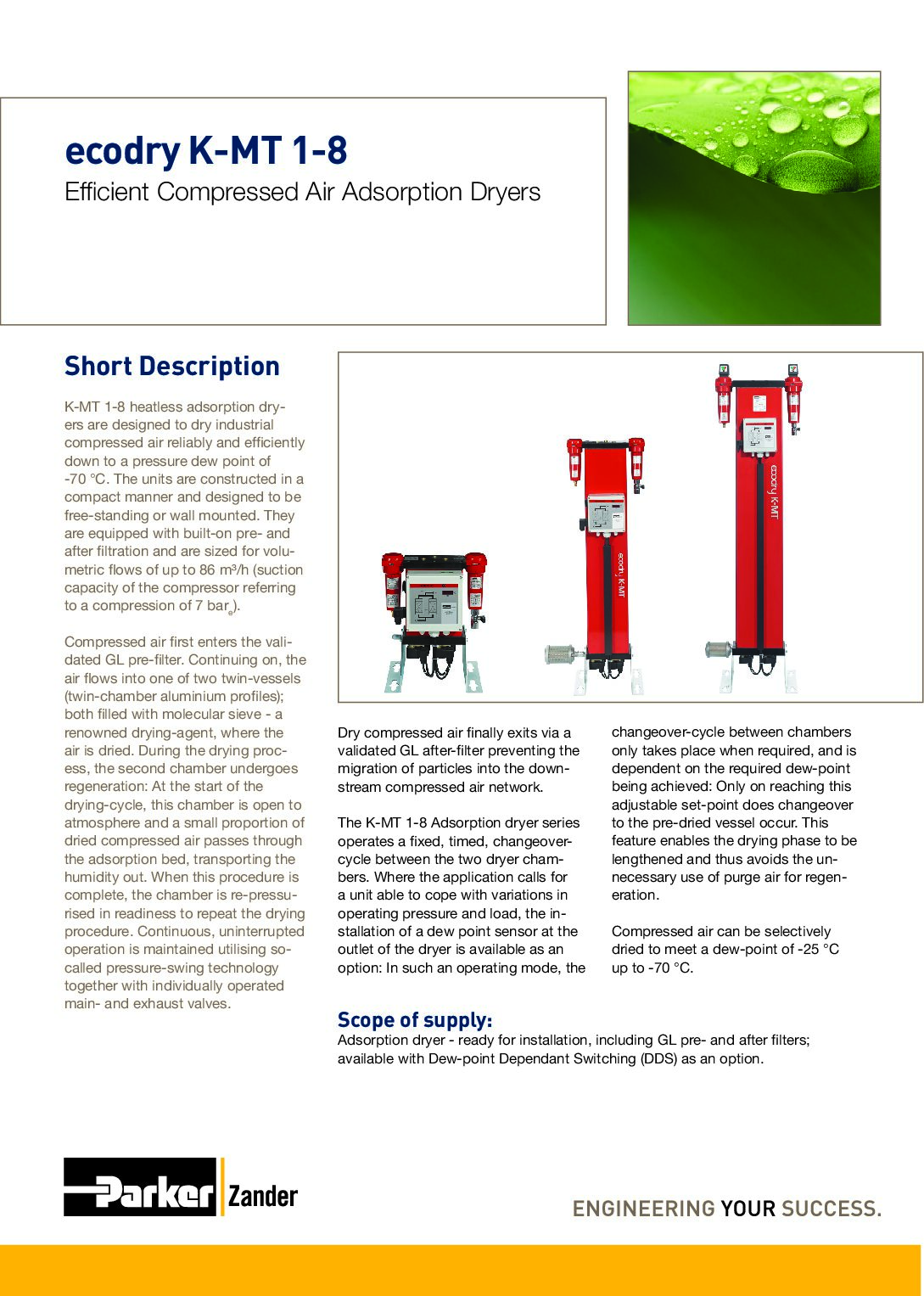

Documents & Manuals: View or Download
Equipment Description
Zander (Parker) K-MT 1-8 dryers are desiccant-type compressed air dryers used in medical gas pipeline systems. They remove moisture from compressed medical air to maintain air quality and protect downstream equipment and instruments.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
| Model | Pipe | Pre-Filter P/N | Aft-Filter P/N | Carbon-Filter P/N | Service Kit (12/36 Month) P/N | Service Kit (24 Month) P/N | Service Kit (48 Month) P/N | Silencer Kit P/N | |||||||
| Beacon | Zander | Beacon | Zander | Beacon | Zander | Beacon | Zander | Beacon | Zander | Beacon | Zander | Beacon | Zander | ||
| K-MT 1 | 1/4 | V-1030XP | 1030X 1030XP | V-1030ZP | 1030Z 1030ZP | V-1030A | 1030A | 1316 0024 25 | K-MT12A | 1316 0032 65 | K-MT24A | 1316 0024 28 | K-MT48A | SDD-08 1/4" | |
| K-MT 2 | |||||||||||||||
| K-MT 3 | SDD-15 1/2" | ||||||||||||||
| K-MT 4 | |||||||||||||||
| K-MT 6 | 1/2" | V-1050XP | 1050X 1050XP | V-1050ZP | 1050Z 1050ZP | V-1050A | 1050A | 1316 0024 30 | K-MT48B | ||||||
| K-MT 7 | V-1070XP | 1070X 1070XP | V-1070ZP | 1070Z 1070ZP | V-1070A | 1070A | |||||||||
| K-MT 8 | 3/4" | 3003 1041 25 | 1140X 1140XP | 3003 1046 25 | 1140Z 1140ZP | 3003 1040 25 | 1140A | ||||||||

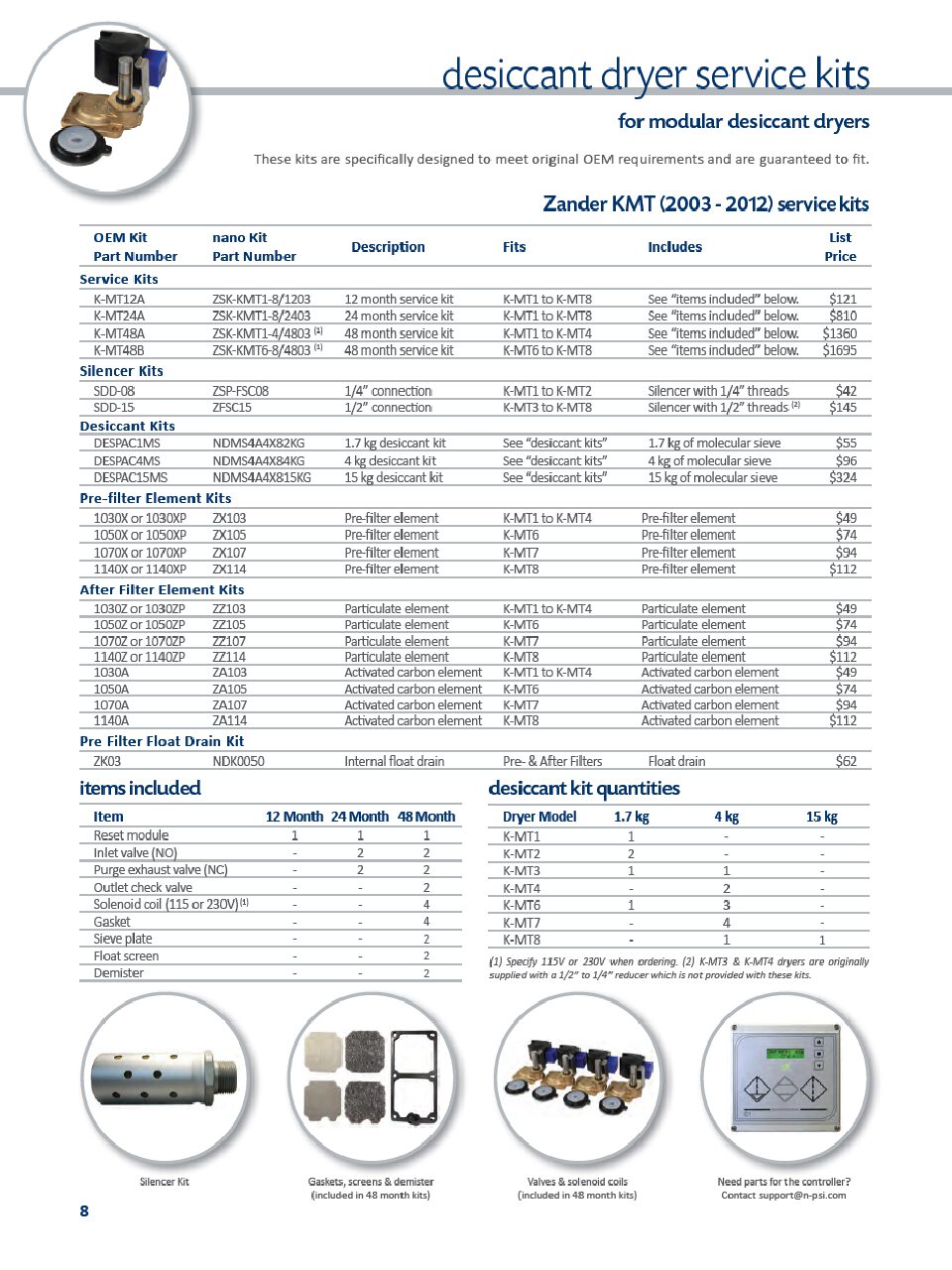

| Service Kit (12 / 36): Re-Set Module, Silencer, Filter Elements Service Kit (24): Re-Set Module, Valve-Membranes, Silencer, Filter Elements Service Kit (48): Re-Set Module, Valve-Membranes, Solenoid-Coils, Non-Return Valves, Demister, Perforated Screens, Silencer, Filter Elements | |||||||||||||||
| Desiccant Packs | Beacon P/N | Zander P/N | NANO P/N | K-MT 1 | K-MT 2 | K-MT 3 | K-MT 4 | K-MT 6 | K-MT 7 | K-MT 8 |
| 1.7 kg Desiccant | 1316 0021 95 | DESPAC1MS | NDMS4A4X82KG | x1 | x1 | x1 | ||||
| 4 kg Desiccant | 1316 0021 96 | DESPAC4MS | NDMS4A4X84KG | x1 | x1 | x2 | x3 | x4 | x1 | |
| 15 kg Desiccant | 1316 0021 94 | DESPAC15MS | NDMS4A4X815KG | x1 |
| Misc. Parts | |||
| Beacon P/N | Zander P/N | Description | Image |

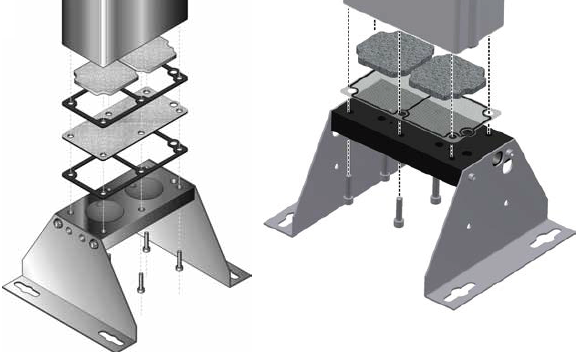

| RKKMT6-K8 | Old Style consisted of gasket, screen, gasket. (left image) New Style has the gasket material mounted to each side of the screen. (right image) | ||
| Beacon P/N | Nano P/N | Description | |
| 1316 0046 19 | ZSKKMT14GLK | Gasket Kit, KMT 1-4 Nano kit consists of 2 screen, 4 gaskets, 2 demister pads. (left image) | |
| 1316 0045 33 | ZSKKMT68GK | Gasket Kit, KMT 6-8 Nano kits consists of 2 screens, 4 gaskets, 2 demister pads. (left image) | |
