Desiccant Dryer Assembly
View or Download
Dual Compressor Assembly
View or Download
Filter Assembly
View or Download
Gauge and Cutoff Assembly
View or Download
Motor Breakout
View or Download
Motor Group
View or Download
Quad Compressor Assembly
View or Download
Rear View Tank Assembly
View or Download

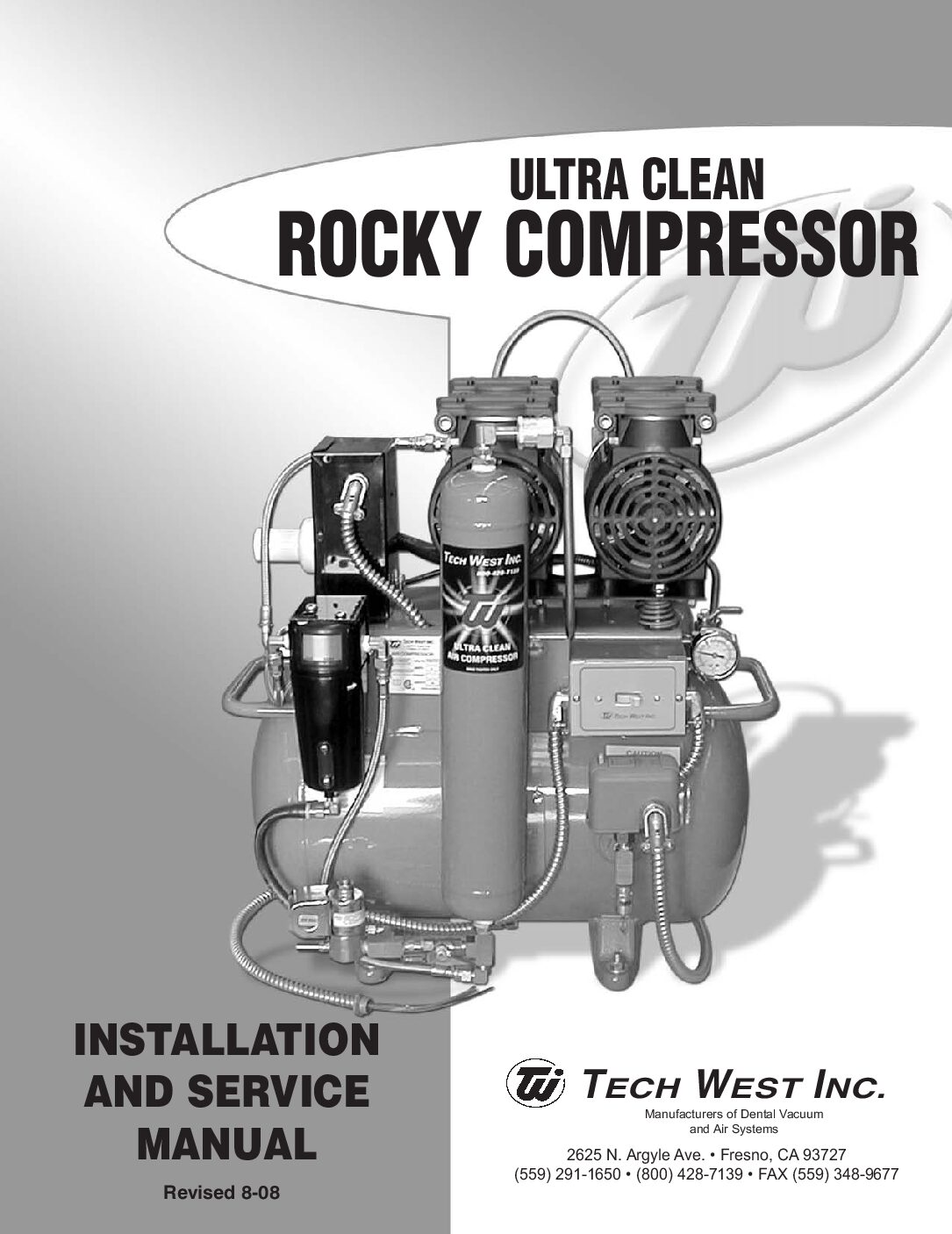

TWRocky1008 OM
View or Download

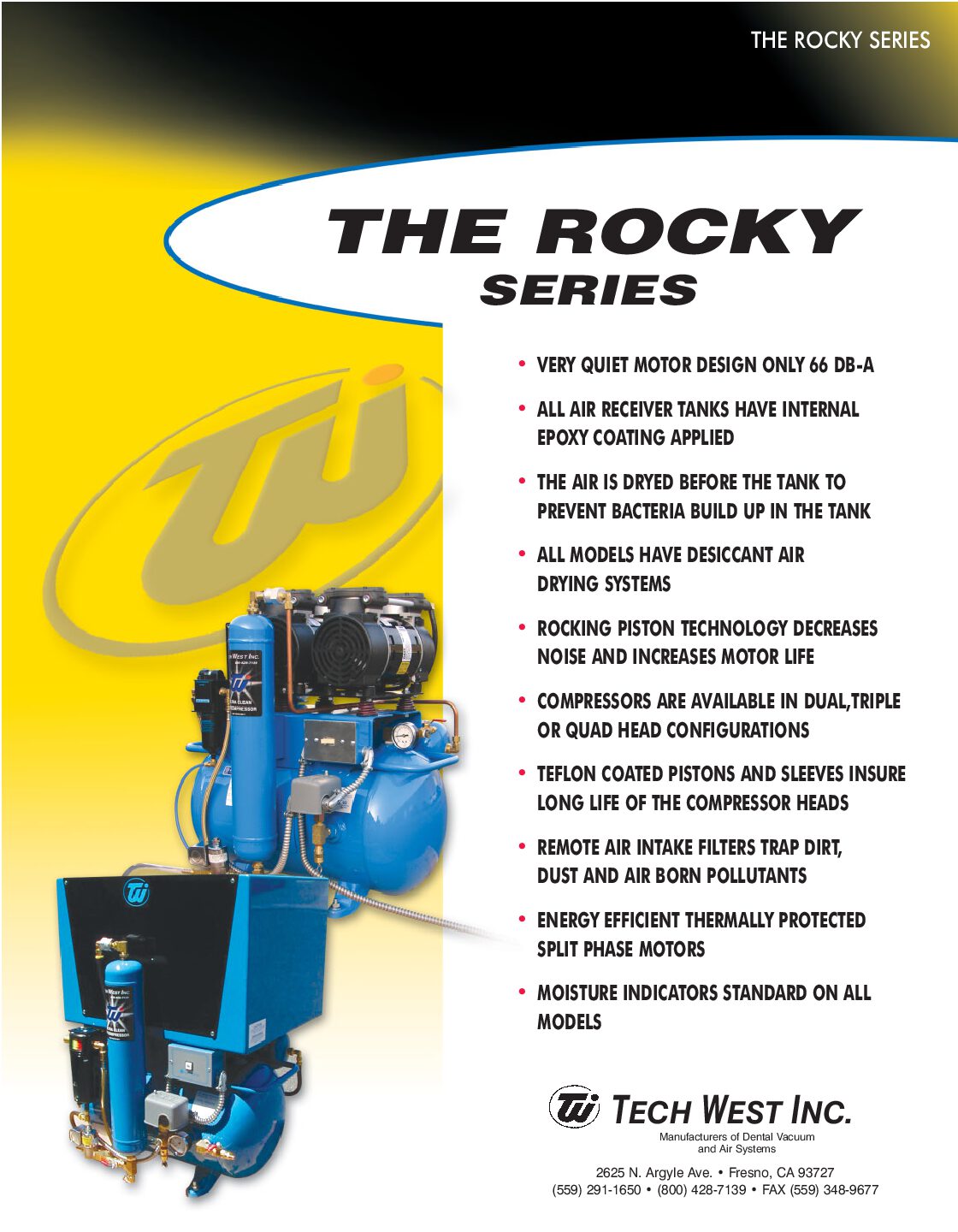

Tech West Rocky Air ACOR2D1Q
View or Download
Triple Compressor Assembly
View or DownloadEquipment Description
The Tech West Rocky compressor is a compact, oil-free air compressor designed for dental and small medical office applications. It provides clean compressed air in a space-efficient cabinet configuration.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.

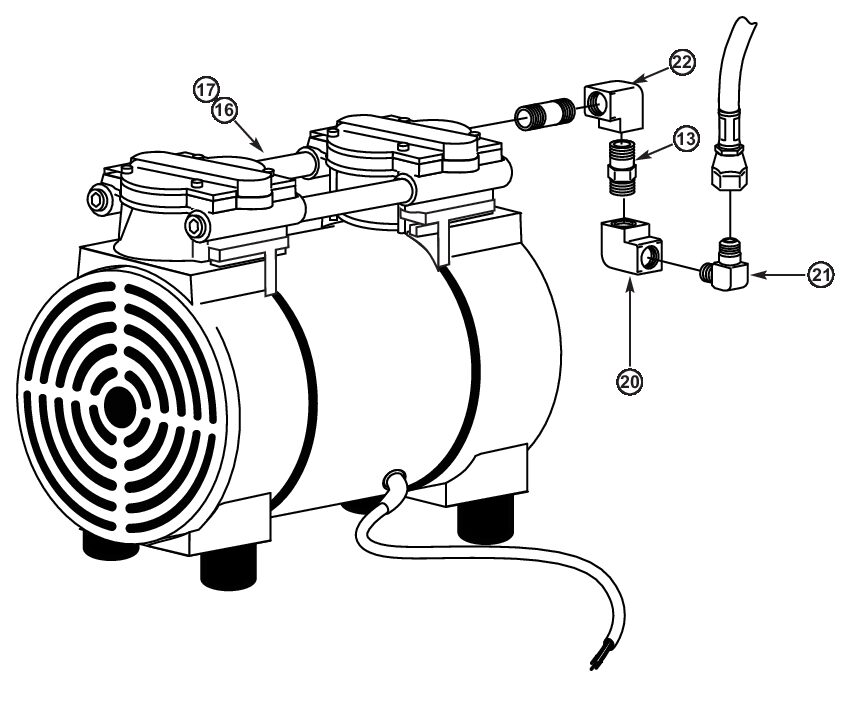

| Motor Group, 3/4 HP - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 13 | CV-250D | 1 | Check Valve, 1/4" | ||
| 16 | GOM-075R-115 | 1-4 | Oilless Motor, 3/4 HP, 115V | ||
| 17 | GOM-075R-230 | 1 | Oilless Motor, 3/4 HP, 230V | ||
| 20 | BE-4 | 2 | Brass Elbow, 1/4" | ||
| 21 | FE-4-6 | 1 | Brass Flair Elbow, 1/4" x 3/8" | ||
| 22 | BN-1.50 | 1 | Brass Nipple, 1/4" x 1-1/2" | ||

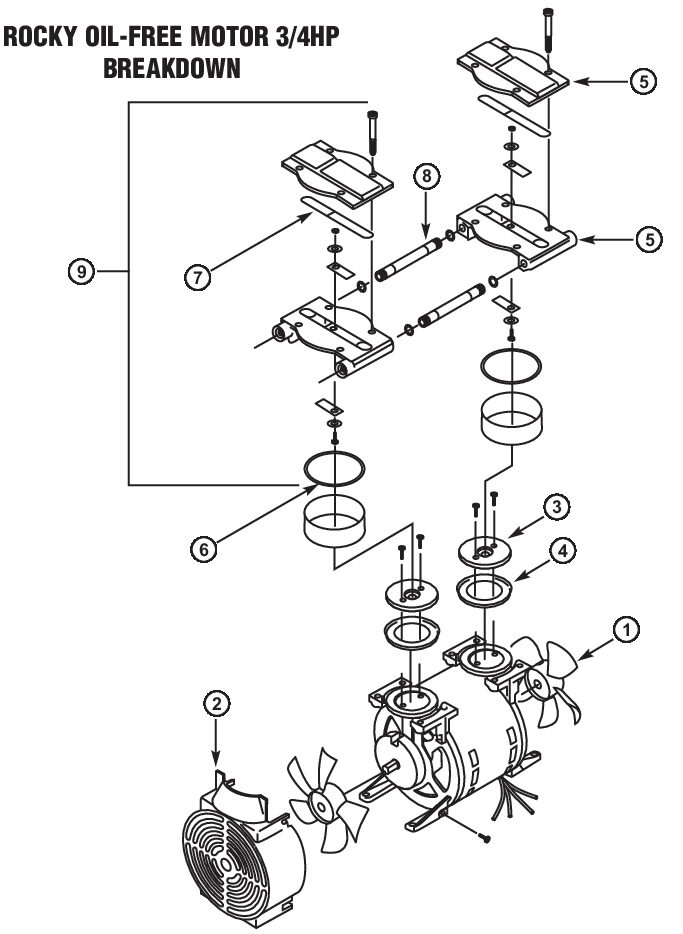

| Motor Breakout, 3/4 HP - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | RCF-100 | 2 | Cooling Fan | ||
| 2 | RFS-100 | 2 | Fan Shroud | ||
| 3 | RRP-100 | 2 | Retainer Plate | ||
| 4 | RPC-100 | 2 | Piston Cup | ||
| 5 | RVS-100 | 2 | Valve Plate Set | ||
| 6 | RCOR-100 | 2 | Cylinder O-Ring | ||
| 7 | RHOR-100 | 2 | Head O-Ring | ||
| 8 | RCT-100 | 2 | Cross Over Tube | ||
| 9 | RCVS-100 | 2 | Complete Valve Plate Assembly | ||

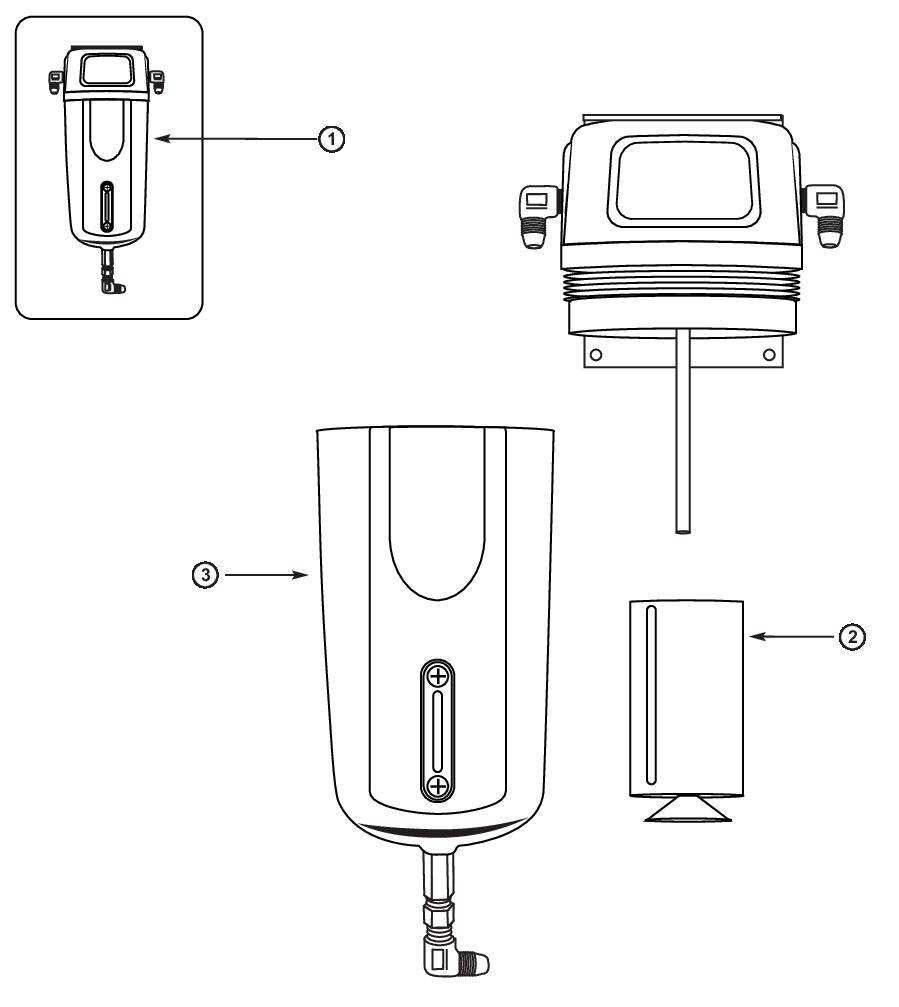

| Filter Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | CFAO-375 | 1 | Coalescing Filter Assembly, 3/8" | ||
| 2 | 1316 0050 02 | CFEO-375 | CME110 | 1 | Coalescing Filter Element, 3/8" |
| 3 | CFBP-375 | 1 | Coalescing Filter Bowl | ||

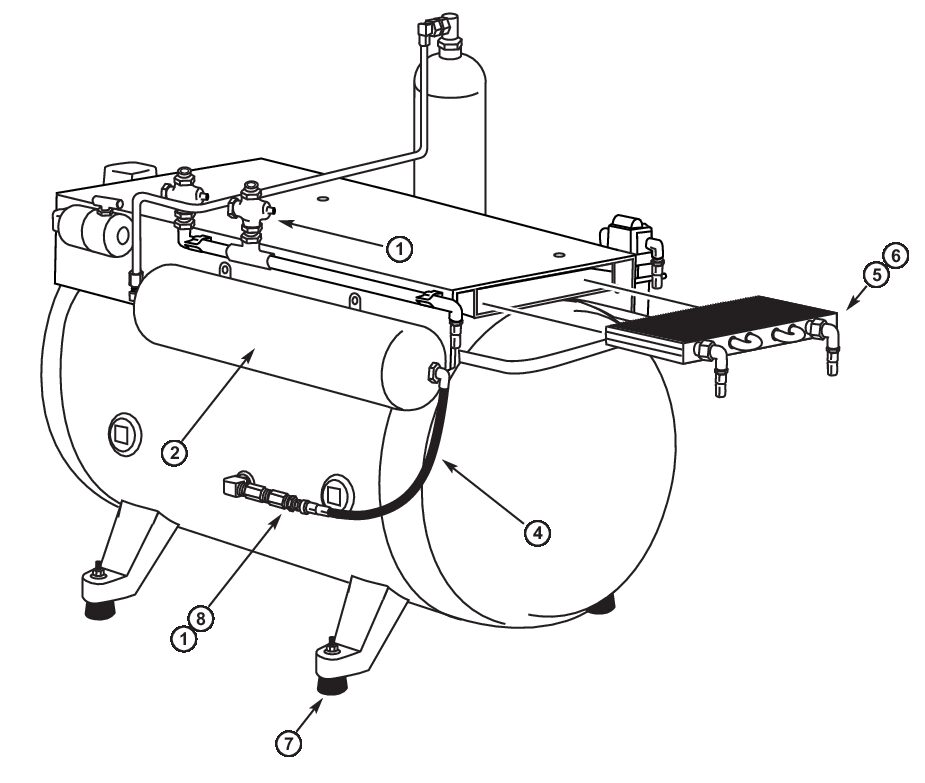

| Rear View Tank Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | CV-375D-100 | 1-4 | Check Valve, 3/8" | ||
| 2 | CPT-100 | 1 | Compressor Purge Tank | ||
| 4 | HA-10-250 | 1 | Hose Assembly, 1/4", 10" Long | ||
| 5 | DPC-1 | 1 | Dryer Pre Cooler Dual Compressor | ||
| 6 | DPC-2 | 1 | Dryer Pre Cooler Triple & Quad Compressors | ||
| 7 | RFV-100 | 4 | Rubber Mounting Feet | ||
| 8 | CV-500D-100 | 1 | Check Valve, 1/2" | ||

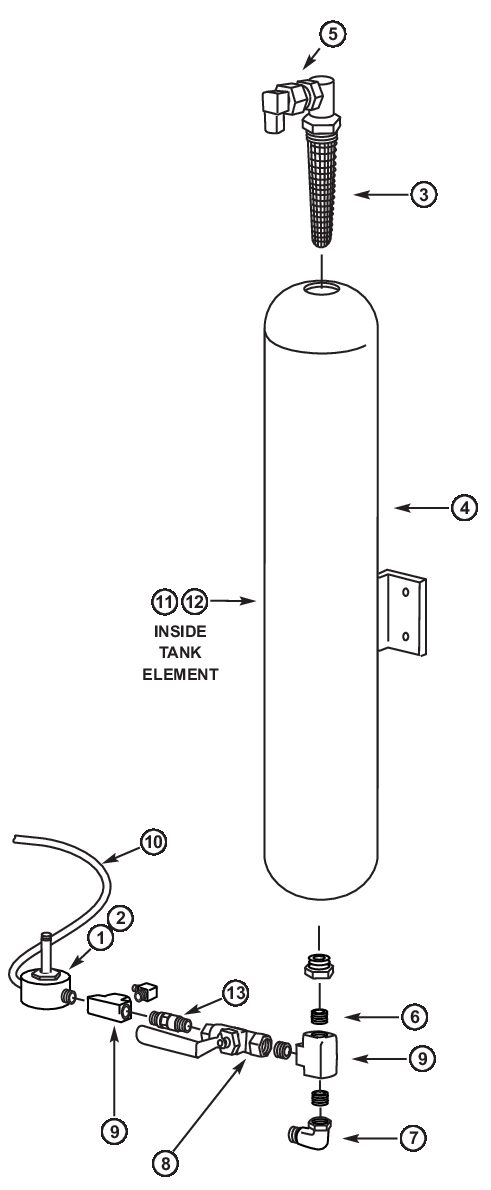

| Desiccant Dryer Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | DVS-115 | 1 | Purge Solenoid Valve, 115V | ||
| 2 | DVS-230 | 1 | Purge Solenoid Valve, 230V | ||
| 3 | AS-500 | 1 | Filter Assembly, 1/2" | ||
| 4 | RDC-100 | 1 | Replacement Desiccant Tank | ||
| 5 | MV-250 | 1 | Metering Valve | ||
| 6 | SN-250-CL | 3 | Stainless Steel Nipple, 1/4" | ||
| 7 | FE-4-6 | 1 | Flair Fitting, 1/4" x 3/8" | ||
| 8 | BV-250 | 1 | Ball Valve, 1/4" | ||
| 9 | BT-250 | 2 | Brass Tee, 1/4" | ||
| 10 | FPH-375 | Per Foot | Clear Purge Hose | ||
| 11 | MSD-100 | 2 lbs | Molecular-Sieve, 1 lb | ||
| 12 | MSD-200 | 2 lbs | Activated Alumina, 1 lb | ||
| 13 | CV-250D | 1 | Check Valve, 1/4" | ||

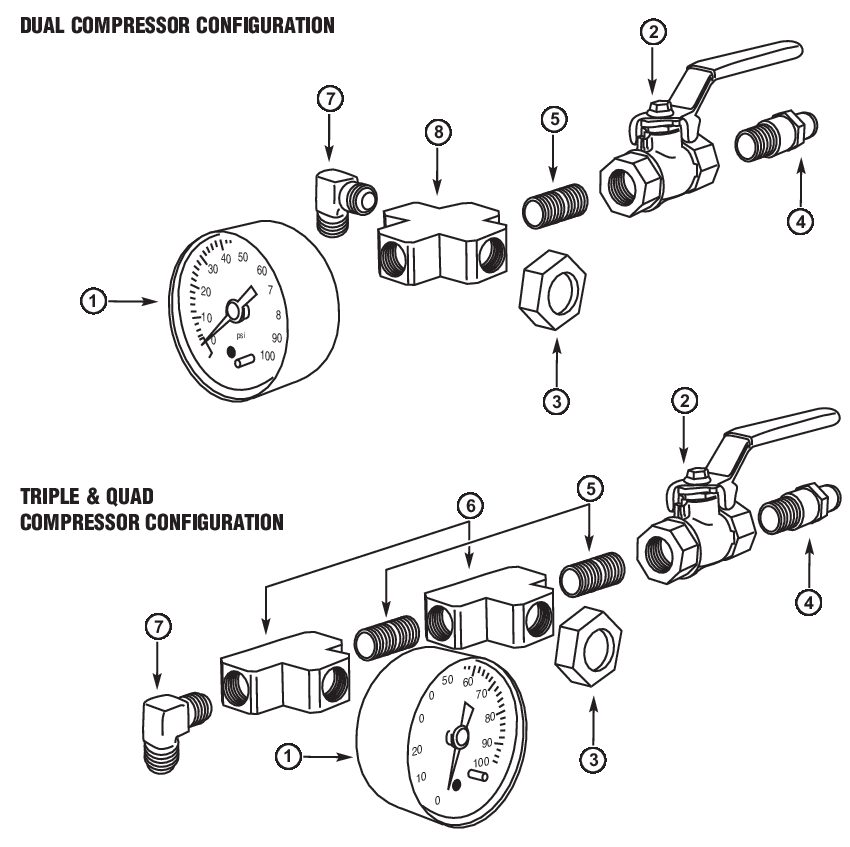

| Gauge and Cut-Off Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | CPG-250 | 1 | Compressor Gauge | ||
| 2 | BV-250 | 1 | Ball Valve, 1/4" | ||
| 3 | MI-100 | 1 | Moisture Indicator | ||
| 4 | FA-4-4 | 1 | Flare Hose Fitting, 1/4" | ||
| 5 | BN-250-CL | 1 | Brass Close Nipple, 1/4" | ||
| 6 | BT-250 | 1 | Brass Tee, 1/4" | ||
| 7 | BSE-250 | 1 | Brass Elbow, 1/4" | ||
| 8 | BPC-4 | 1 | Brass Cross, 1/4" | ||

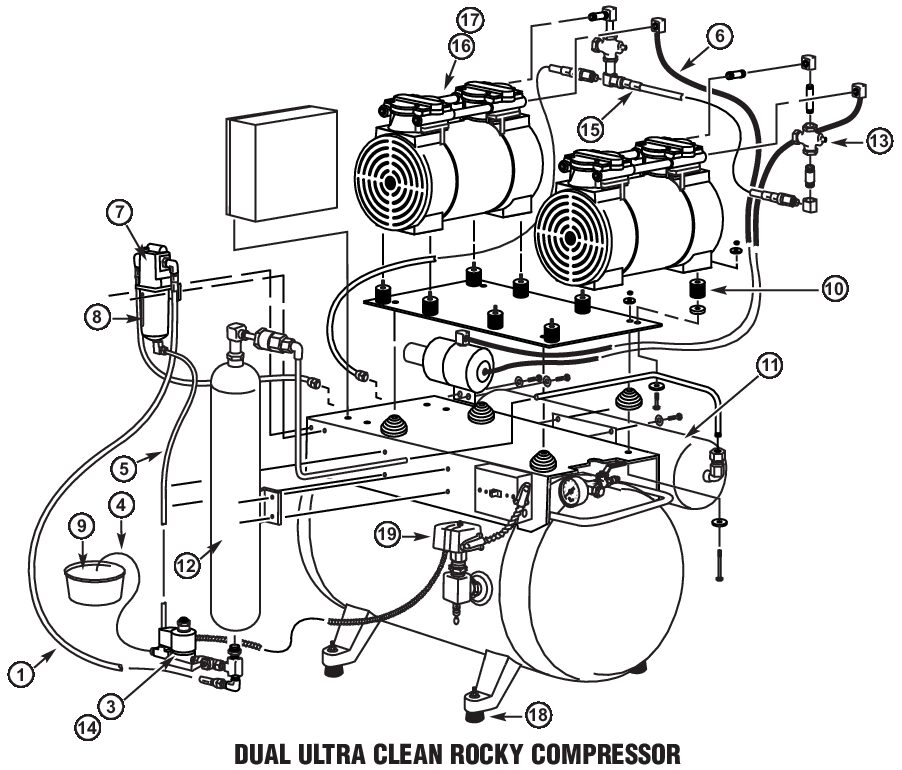

| Dual Compressor Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | SBHA-21-375 | 1 | Steel Braid Hose Assembly | ||
| 3 | DSV-115 | 1 | Purge Valve Solenoid Valve, 115V | ||
| 4 | FPH-375 | Per Foot | Purge Flex Hose Clear | ||
| 5 | ZZACS61 | Per Foot | Hose Assembly, 1/4" | ||
| 6 | PFT-500 | Per Foot | Poly Flo Tube, 1/2" | ||
| 7 | CFAO-375 | 1 | Coalescing Filter, 3/8" | ||
| 8 | 1316 0050 02 | CFEO-375 | CME110 | 1 | Coalescing Filter Element, 3/8" |
| 9 | DPB-100 | 1 | Dryer Purge Bucket | ||
| 10 | RIC-GAST | 8 | Rubber Mounting Feet | ||
| 11 | CPT-100 | 1 | Compressor Purge Tank | ||
| 12 | RDC-100 | 1 | Replacement Desiccant Cartridge | ||
| 13 | CV-250D | 2 | Check Valve, 3/8" | ||
| 15 | DSV-230 | 1 | Purge Valve Solenoid Valve, 230V | ||
| 14 | SBHA-18-375 | 2 | Steel Braid Hose Assembly | ||
| 16 | GOM-075R-115 | 2 | Oilless Motor, 3/4 HP, 115V | ||
| 17 | GOM-075R-230 | 2 | Oilless Motor, 3/4 HP, 230V | ||
| 18 | RFV-100 | 4 | Rubber Mounting Feet | ||
| 19 | PSC-3 | 1 | Pressure Switch | ||

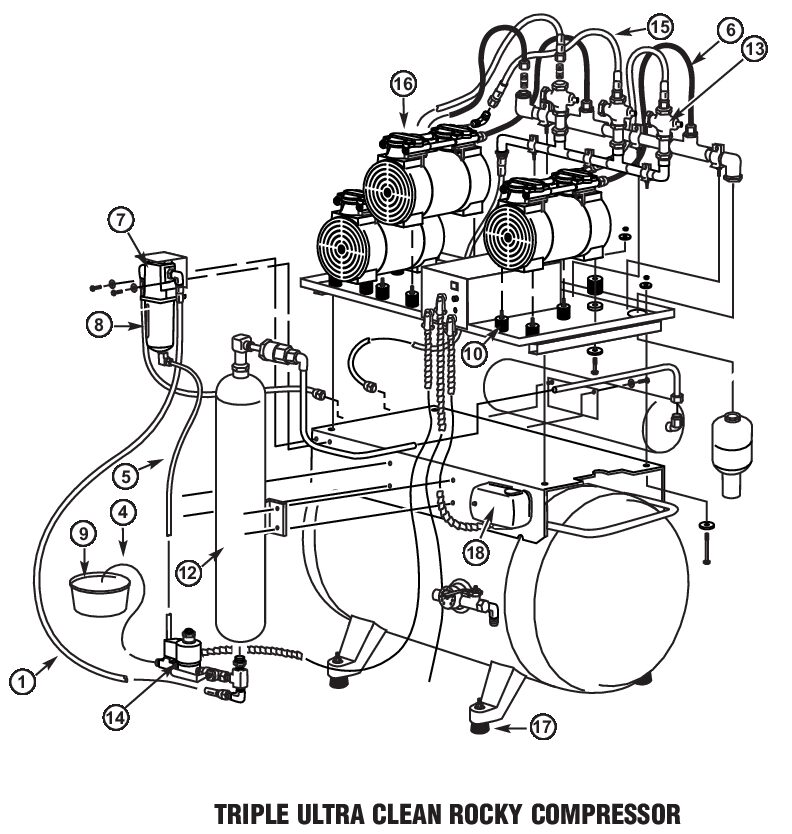

| Triple Compressor Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | SBHA-21-375 | 1 | Steel Braid Hose Assembly | ||
| 4 | FPH-375 | Per Foot | Purge Flex Hose Clear | ||
| 5 | ZZACS61 | Per Foot | Hose Assembly, 1/4" | ||
| 6 | PFT-500 | Per Foot | Poly Flo Tube, 1/2" | ||
| 7 | CFAO-375 | 1 | Coalescing Filter, 3/8" | ||
| 8 | 1316 0050 02 | CFEO-375 | CME110 | 1 | Coalescing Filter Element, 3/8" |
| 9 | DPB-100 | 1 | Dryer Purge Bucket | ||
| 10 | RIC-GAST | 12 | Rubber Mounting Feet | ||
| 11 | CPT-100 | 1 | Compressor Purge Tank | ||
| 12 | RDC-100 | 1 | Replacement Desiccant Cartridge | ||
| 13 | CV-375D-100 | 3 | Check Valve, 3/8" | ||
| 14 | DSV-230 | 1 | Purge Valve Solenoid Valve, 230V | ||
| 15 | SBHA-18-375 | 2 | Steel Braid Hose Assembly | ||
| 16 | GOM-075R-230 | 3 | Oilless Motor, 3/4 HP, 230V | ||
| 17 | RFV-100 | 4 | Rubber Mounting Feet | ||
| 18 | PSC-3 | 1 | Pressure Switch | ||

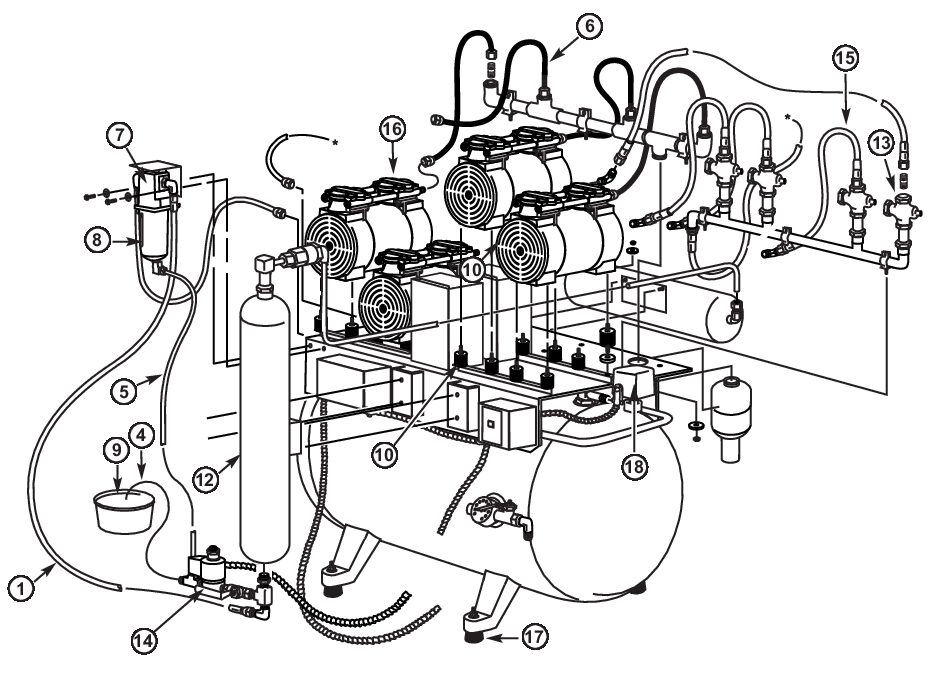

| Quad Compressor Assembly - Parts View | |||||
| Item | Beaon Part Number | Tech West P/N | RPI Part Number | Qty | Description |
| 1 | SBHA-21-375 | 1 | Steel Braid Hose Assembly | ||
| 4 | FPH-375 | Per Foot | Purge Flex Hose Clear | ||
| 5 | ZZACS61 | Per Foot | Hose Assembly, 1/4" | ||
| 6 | PFT-500 | Per Foot | Poly Flo Tube, 1/2" | ||
| 7 | CFAO-375 | 1 | Coalescing Filter, 3/8" | ||
| 8 | 1316 0050 02 | CFEO-375 | CME110 | 1 | Coalescing Filter Element, 3/8" |
| 9 | DPB-100 | 1 | Dryer Purge Bucket | ||
| 10 | RIC-GAST | 16 | Rubber Mounting Feet | ||
| 11 | CPT-100 | 1 | Compressor Purge Tank | ||
| 12 | RDC-100 | 1 | Replacement Desiccant Cartridge | ||
| 13 | CV-375D-100 | 4 | Check Valve, 3/8" | ||
| 14 | DSV-230 | 1 | Purge Valve Solenoid Valve, 230V | ||
| 15 | SBHA-18-375 | 2 | Steel Braid Hose Assembly | ||
| 16 | GOM-075R-230 | 4 | Oilless Motor, 3/4 HP, 230V | ||
| 17 | RFV-100 | 4 | Rubber Mounting Feet | ||
| 18 | PSC-3 | 1 | Pressure Switch | ||
