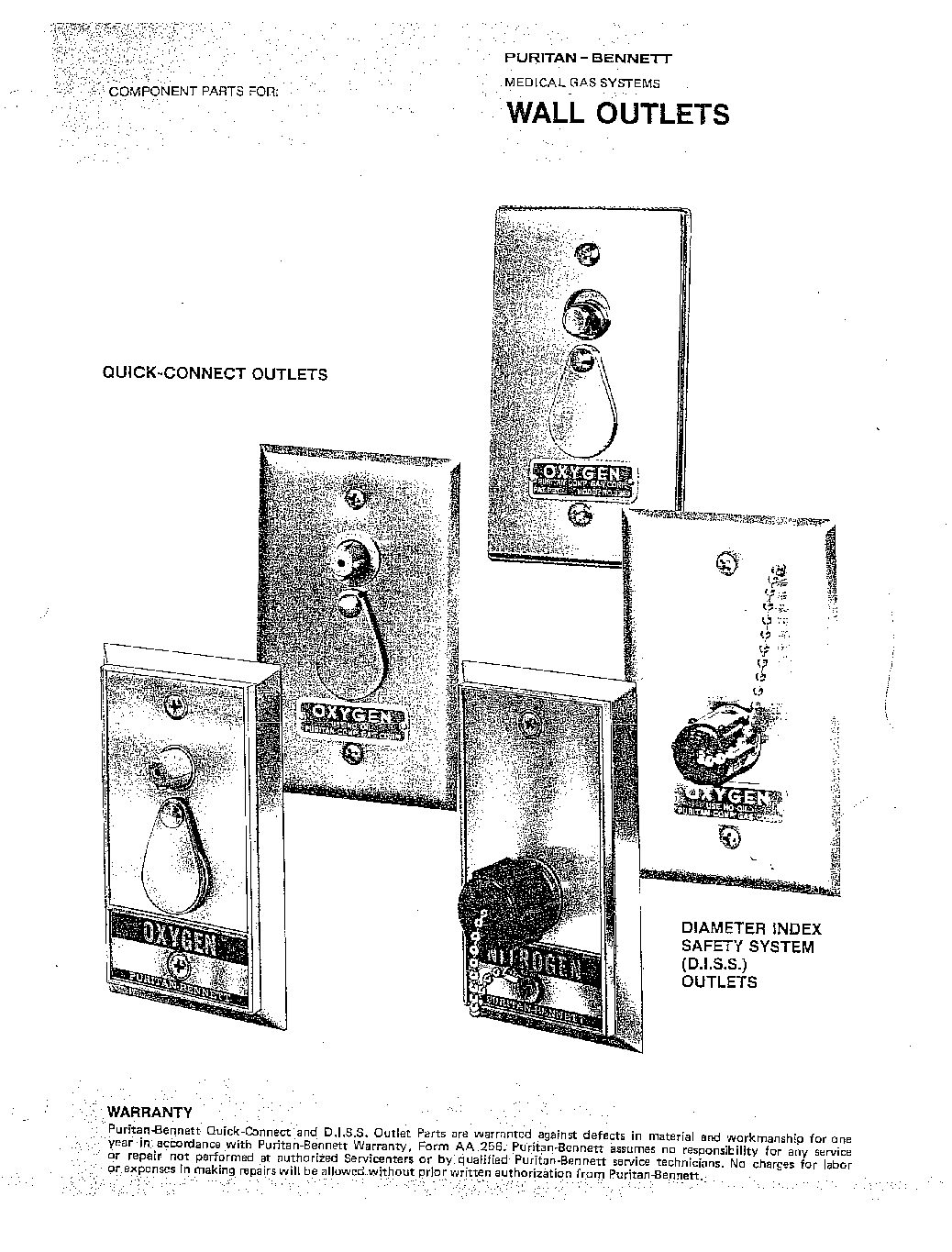

Series A Gas Outlets
Manufacturer: Puritan-Bennett
Category: Outlets

Documents & Manuals: View or Download

Equipment Description

The Puritan-Bennett Series A is a Geometric-keyed medical gas outlet with an upgraded quick-connect valve assembly compared to the Series 73. It features a latch mechanism, replaceable spring-and-poppet assembly, and dust covers with retention chains.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Item #Part NumberDescription
1211171-00Quick Connect Valve, All Gases
2616036-00Latch Only
3290099-00Sealing Washer, Pkg of 25
4230078-PGSpring & Poppett Assembly, Pressure, Pkg of 10
230370-PGSpring & Poppett Assembly, Vacuum, Pkg of 10
5622510-00O-Ring

Item #Part NumberDescription
6811559-00
Locking Screw
7826001-00Speed Nut

Item #Part NumberDescription
8622036-PGO-Ring, Pkg of 10
9622002-00
O-Ring, .343 x .218 x .070
622049-00O-Ring, .625 x .437 x .093
10833100-00Spring
11622504-00O-Ring, AIR
12415024-00Washer, N2 Only
13290099-00Sealing Washer, Pkg of 25
14230056-00Dust Cover & Chain, O2, Black Plastic
511571-00Dust Cover & Chain, O2 (new caps are chromed brass)
230057-00Dust Cover & Chain, N2O, VAC, AIR, N2, Black Plastic
511570-00Dust Cover & Chain, N2O, VAC, AIR, N2 (new caps are chromed brass)
