Old Ohio/Ohmeda/Medaes Check Units
Manufacturer: Ohio Medical
Category: Outlets

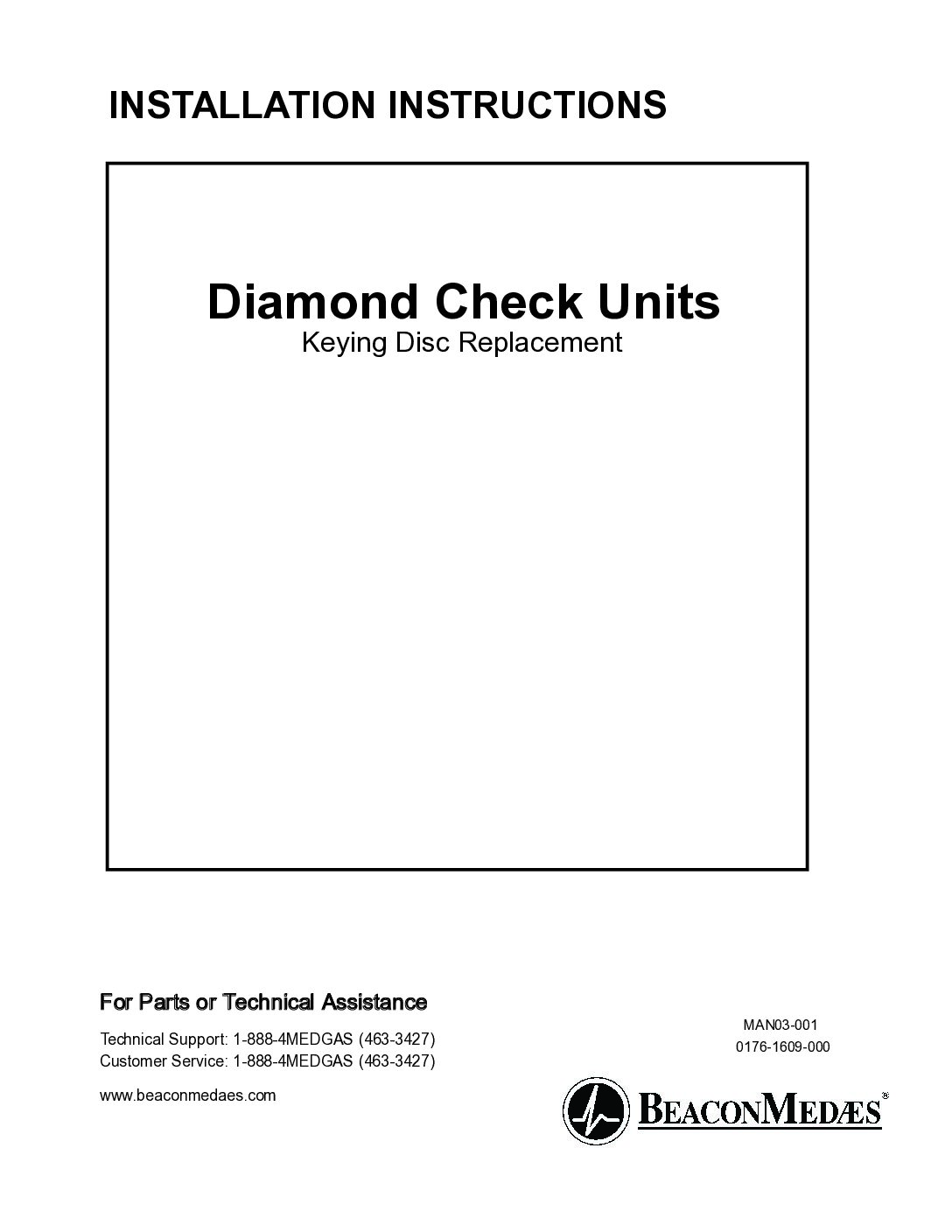

Documents & Manuals: View or Download

Equipment Description

Ohio Medical, Ohmeda, and Medaes check units are legacy medical gas adapter accessories used in Diamond-keyed and DISS-keyed configurations. They provide connections for ceiling columns, hose drops, gas tracks, and various piping connections throughout the medical gas distribution system.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Diamond Key x Male DISS for Old Retractable Hose Reels and Gas Tracks
Gas IDHill-Rom P/NOld Medaes P/NOld Ohmeda P/N
O26803-8030-1046803-8030-0100221-2694-800
N2O6803-8030-1056803-8030-0110221-2694-801
VAC6803-8030-1066803-8030-0120221-2694-802
AIR6803-8030-1076803-8030-0130221-2694-803
CO26803-8030-1086803-8030-0140221-2694-804
WAGD6803-8030-1096803-8030-017
EVAC6803-8030-0150221-2694-805
O2-ISO6803-8030-1166800-3500-017
VAC-ISO6803-8030-1176800-3500-019
AIR-ISO6803-8030-1186800-3500-021

Diamond Key x 3/8" OD Copper Tube for Rigid Ceiling ColumnsDISS Key x 3/8" OD Copper Tube for Rigid Ceiling Columns
Gas IDHill-Rom P/NOld Medaes P/NHill-Rom P/NOld Ohmeda P/N
O26803-8030-0920221-2720-8000221-2721-8000221-2721-800
N2O6803-8030-0930221-2720-8016803-7000-0160221-2721-801
VAC6803-8030-0940221-2720-8020221-2721-8020221-2721-802
AIR6803-8030-0950221-2720-8036803-7000-0170221-2721-803
CO26803-8030-0960221-2720-8056803-7000-0190221-2721-806
N26803-7000-0180221-2721-804
WAGD6803-8030-0976805-8050-0146805-8050-004
EVAC0221-2720-8040221-2721-805
O2-ISO6803-8030-1130241-2720-800
VAC-ISO6803-8030-1140241-2720-802
AIR-ISO6803-8030-1150241-2720-803

Diamond Key x Male DISS for Retractable Ceiling ColumnsDISS Key x Male DISS for Retractable Ceiling Columns
Gas IDHill-Rom P/NOld Medaes P/NHill-Rom P/NOld Ohmeda P/N
O26803-8030-0860221-2722-8000221-2723-8000221-2723-800
N2O6803-8030-0870221-2722-8016803-7000-0110221-2723-801
VAC6803-8030-0880221-2722-8020221-2723-8020221-2723-802
AIR6803-8030-0890221-2722-8036803-7000-0120221-2723-803
CO26803-8030-0900221-2722-8076803-7000-0140221-2723-808
N26803-7000-0130221-2723-804
WAGD6803-8030-0916805-8050-0026805-8050-013
EVAC0221-2722-8060221-2723-807
O2-ISO6803-8030-1100241-2722-800
VAC-ISO6803-8030-1110241-2722-802
AIR-ISO6803-8030-1120241-2722-803

Diamond Key x 1/4" Male NPT - Used for several applicationsDISS Key x 1/4" Male NPT - Used for several applications
Gas IDHill-Rom P/NOld Medaes P/NOld Ohmeda P/NHill-Rom P/NOld Medaes P/NOld Ohmeda P/N
O26803-7030-0796803-8000-0150221-0443-8005804-0015-0006803-7000-0260221-3900-800
N2O6803-8030-0816803-3500-0150221-0443-8016800-1000-1790221-3901-800
VAC6803-8030-0826803-8000-0160221-0443-8025804-0012-0006803-7000-0270221-3902-800
AIR6803-8030-0806803-8000-0170221-0443-8035804-0013-0006803-7000-0280221-3903-800
N26800-1000-1816803-7000-0150221-3905-800
WAGD6803-8030-0656800-1000-3016803-7000-031
EVAC0221-0443-805
O2-ISO6803-8030-0836803-8000-020
VAC-ISO6803-8030-0856803-8000-021
AIR-ISO6803-8030-0846803-8000-022

Diamond Key x Hose Barb for Hose Drops and Gas TracksDISS Key x Hose Barb for Hose Drops & Gas Tracks
Gas IDHill-Rom P/NOld Medaes P/NOld Ohmeda P/NHill-Rom P/NOld Ohmeda P/N
O26803-8030-0986803-8000-0000221-2690-8000221-3910-8000221-3910-800
N2O6803-8030-0996803-8000-0010221-2690-8016803-7000-0020221-3910-801
VAC6803-8030-1006803-8000-0020221-2690-8026803-7000-0300221-3910-802
AIR6803-8030-1016803-8000-0030221-2690-8036803-7000-0060221-3910-803
CO26803-8030-1026803-8000-0040221-2690-8046800-1000-095
N26803-7000-0080221-3910-804
WAGD (5/16")6803-8030-1036803-8030-0166803-8030-039
EVAC (1/4")0221-2690-8050221-3910-805
