MedPlus Alarm
Manufacturer: BeaconMedaes
Category: Alarms

Documents & Manuals: View or Download

Equipment Description

The BeaconMedaes MedPlus Alarm is a medical gas master alarm panel used with MedPlus-series compressor and vacuum systems. It monitors system status including pressure, temperature, and equipment run-time, providing centralized fault notification.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

The MedPlus Medical Gas Alarm was available in four and seven module
configurations and would accept any mix of Area Display, Master Alarm
and Blank Modules. An Annunciator Module was required for all
alarm configurations, and always occupied the first port of each alarm.
A voltage selector switch (older units) allowed the unit to be
powered by 115 VAC or 220 VAC. Newer power supplied auto sense
the voltage and do not have a physical selector switch.

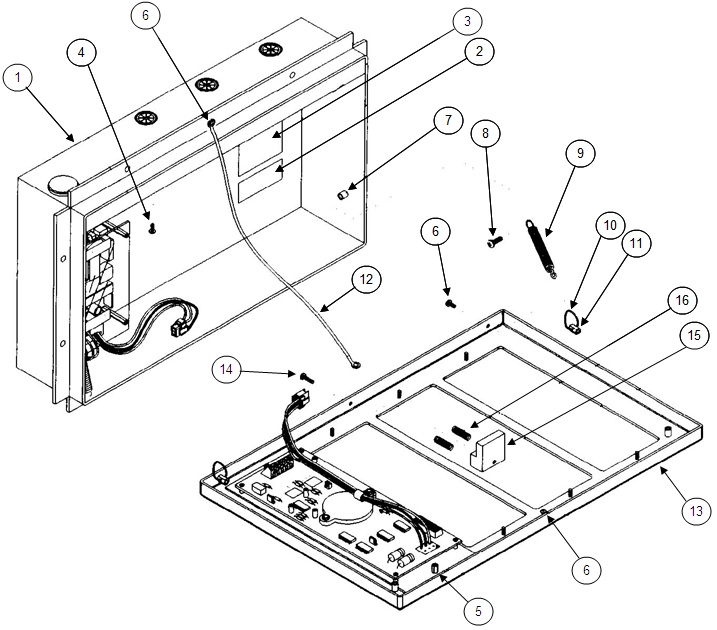

Rough-In & Frame Annunciator Module Master Module Area Module

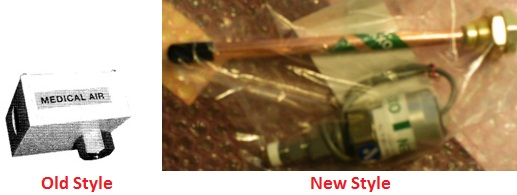

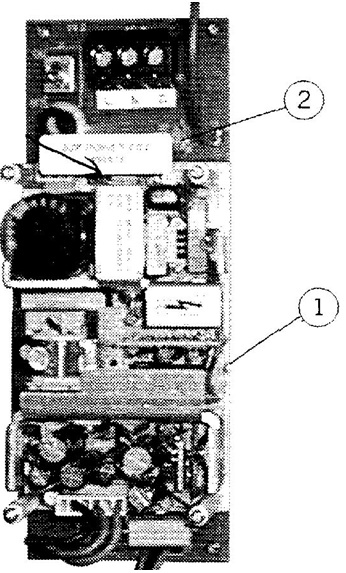

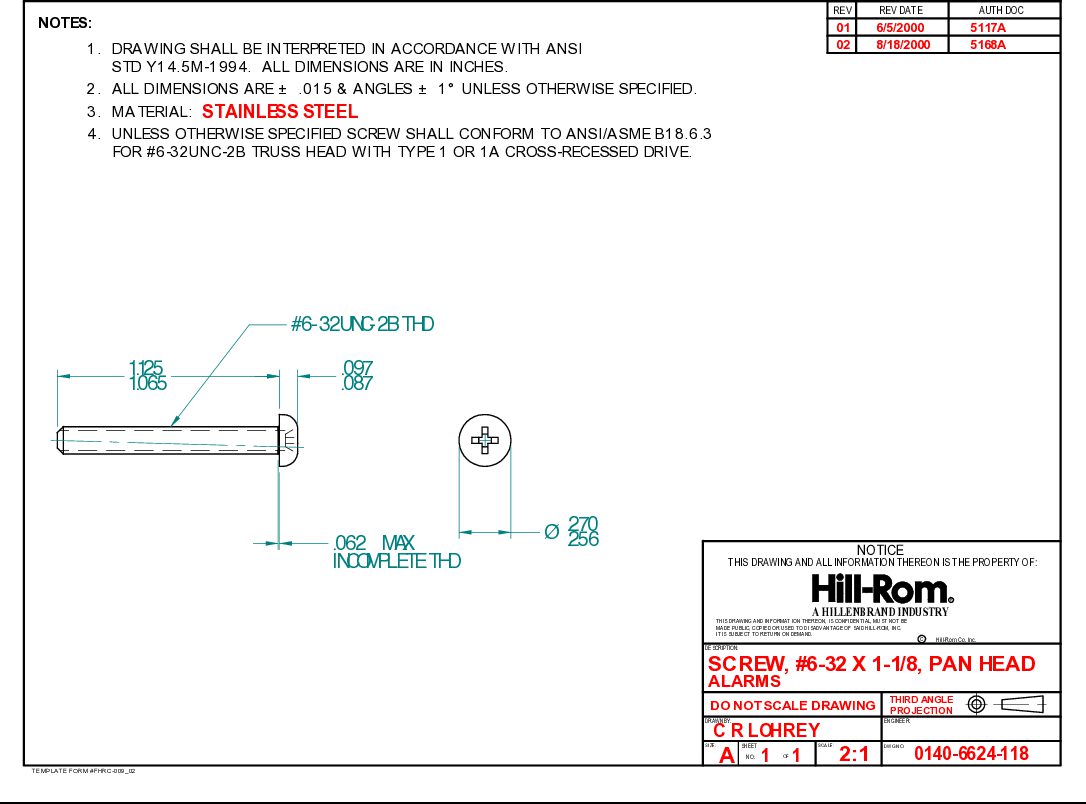

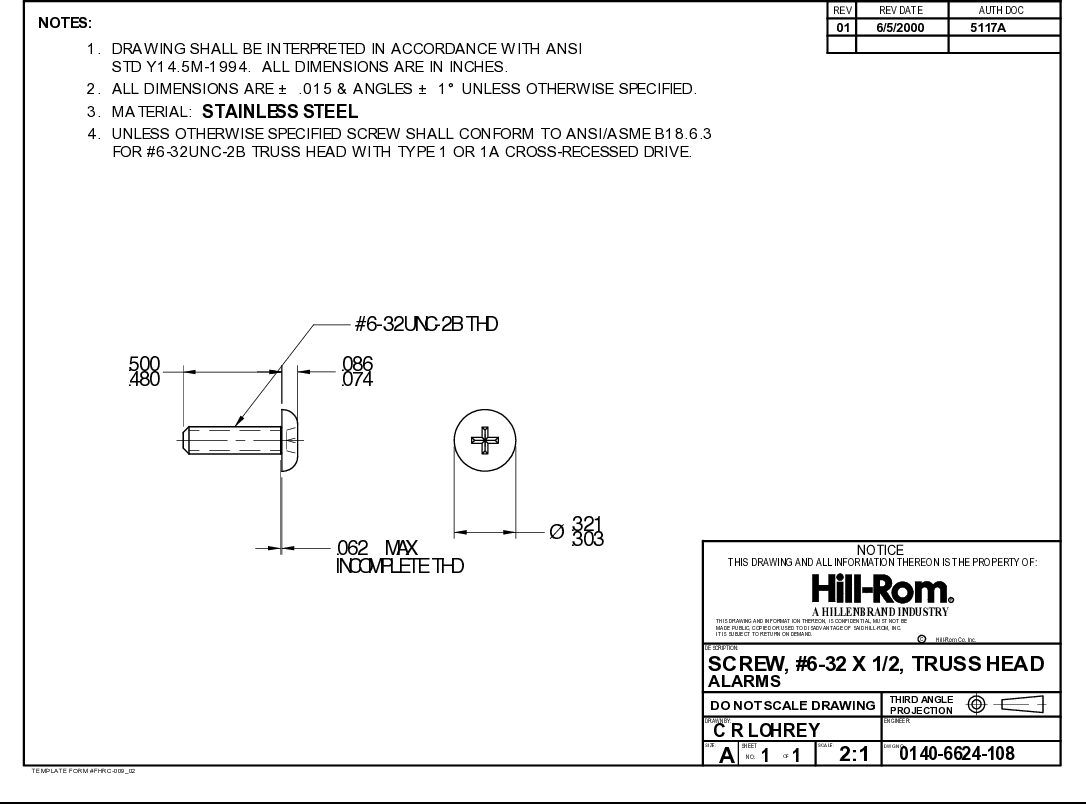

Blank Module Power Supply Pressure Sensors, Cables, Etc
Reference Materials

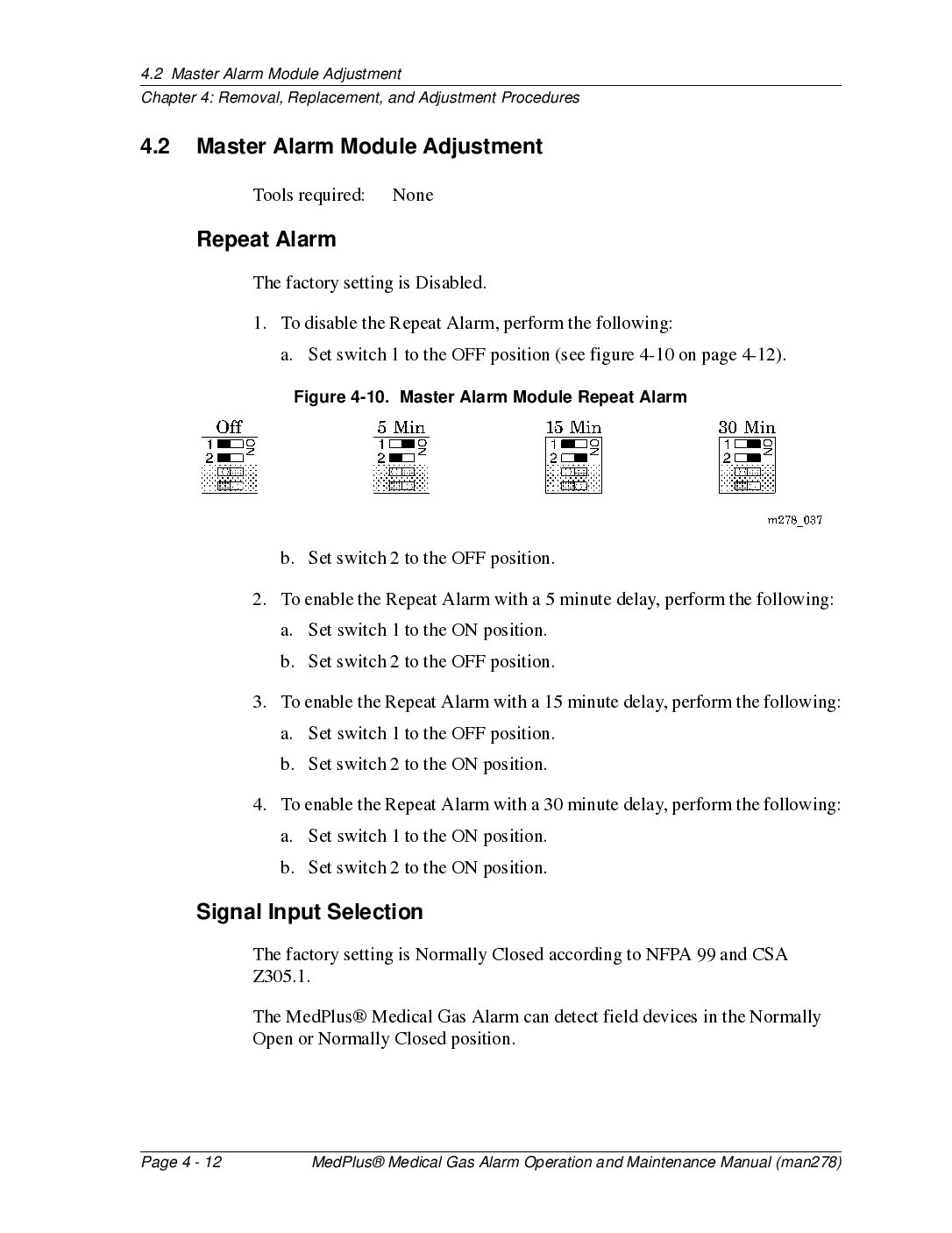

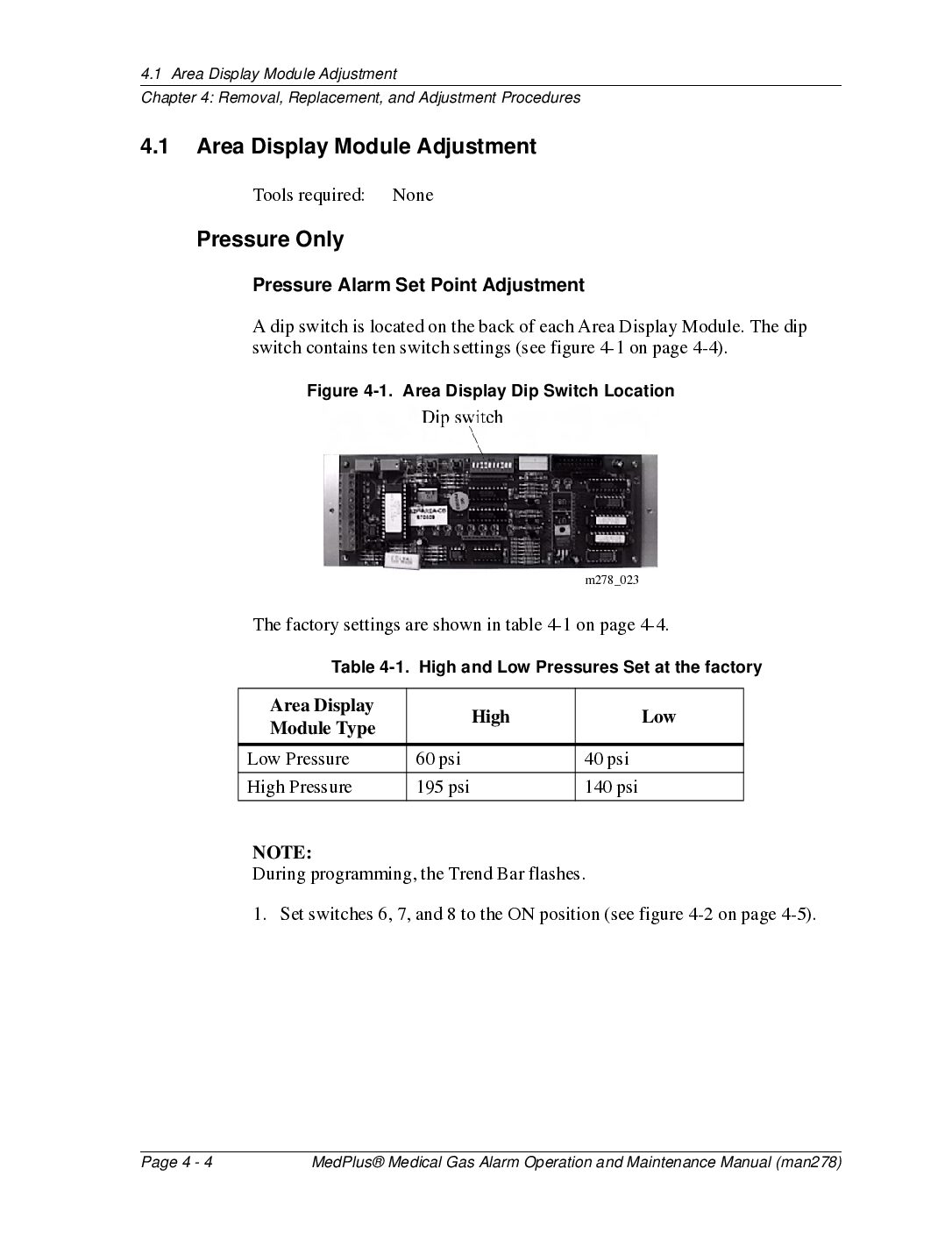

Hill-Rom Spec Operator's Manual Program Area Instructions Program Master Instructions
