Medaes MSP Multi-Service Pendant
Documents & Manuals: View or Download
Equipment Description
The BeaconMedaes (Medaes) MSP Multi-Service Pendant is a ceiling-mounted articulating column that delivers medical gases, electrical power, and data services to the point of care. It features retractable hose connections and AVSAFE-secured gas outlets for operating rooms and critical care areas.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
| Resource Materials | |||

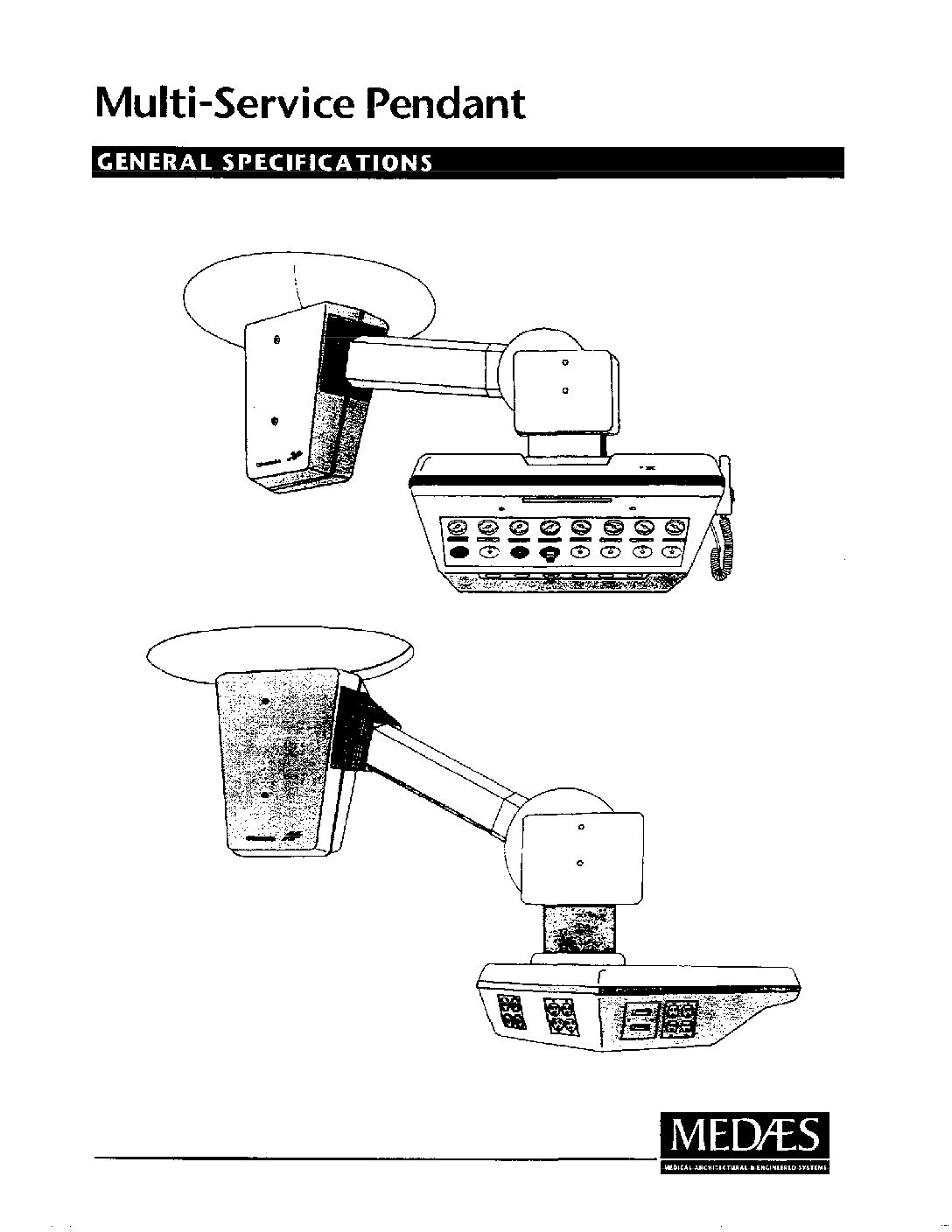

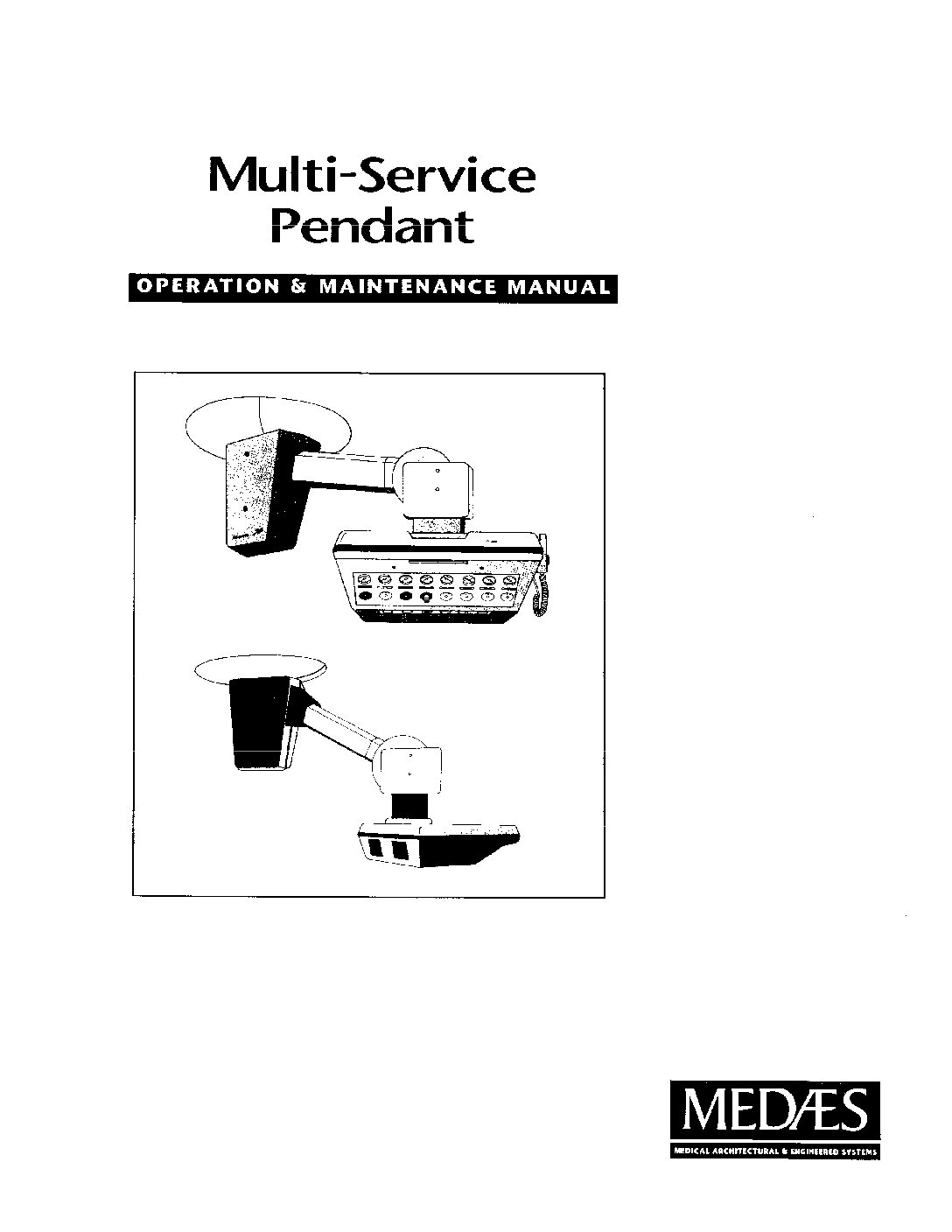

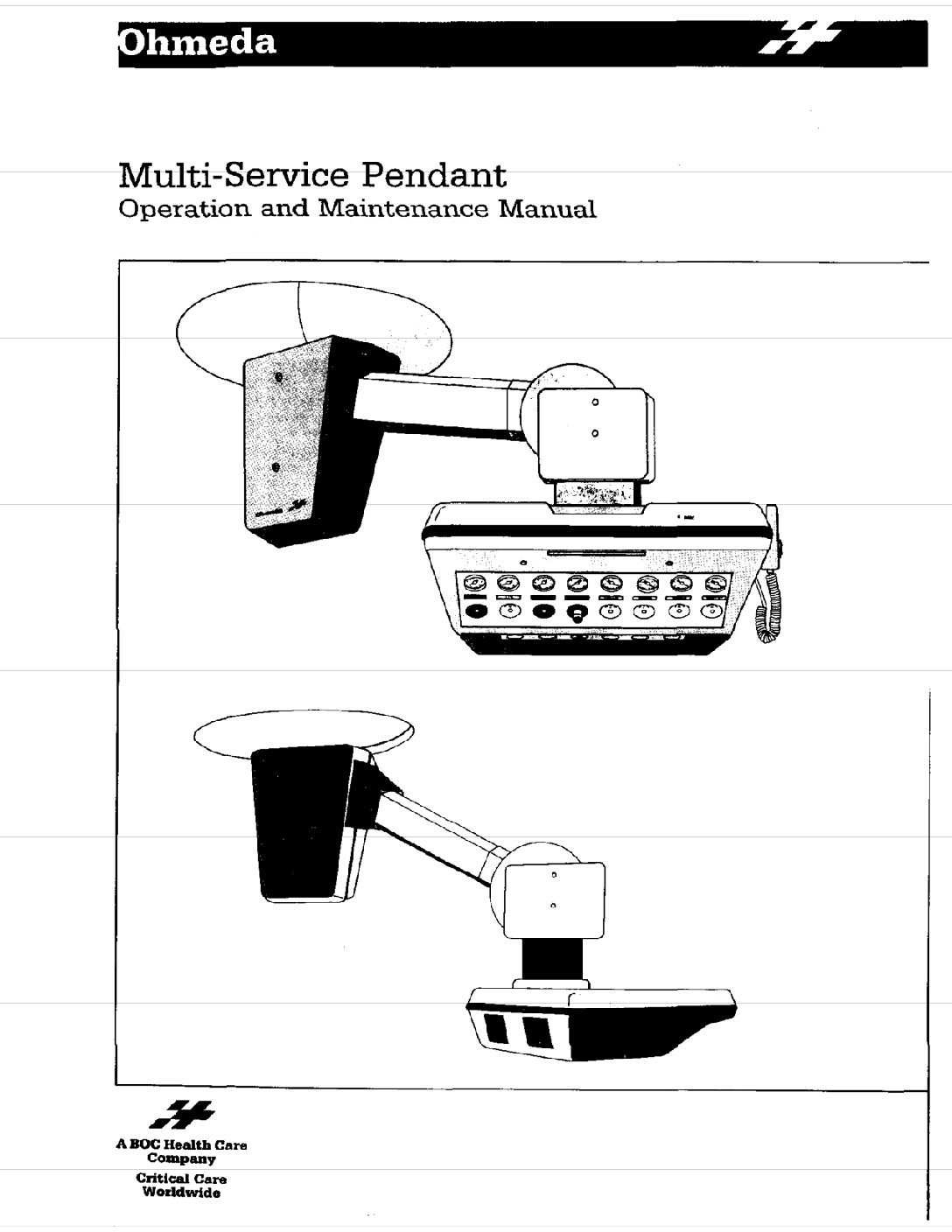

| General Specs | O&M Medaes (1995) | O&M Ohmeda (1989) | O&M Ohmeda (1986) |

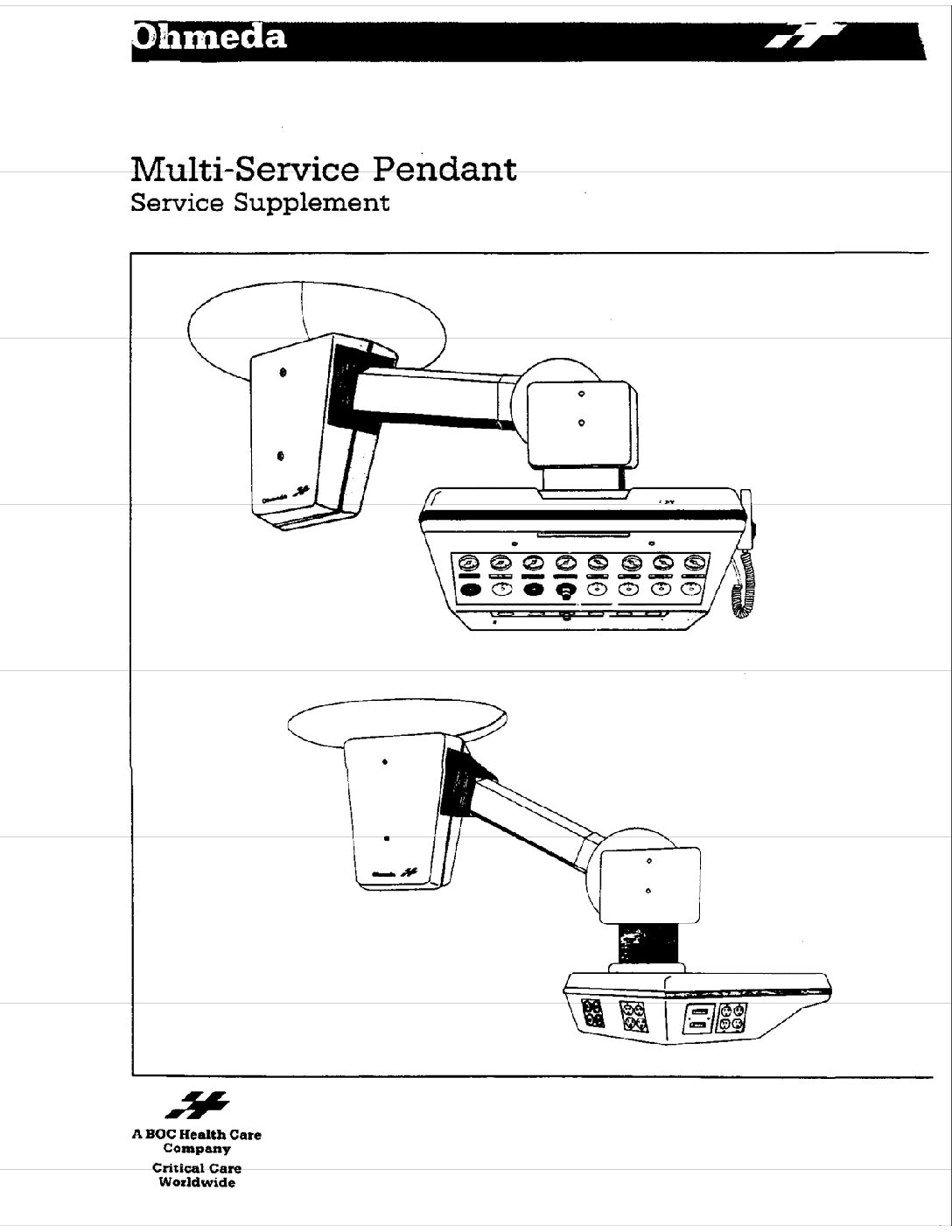

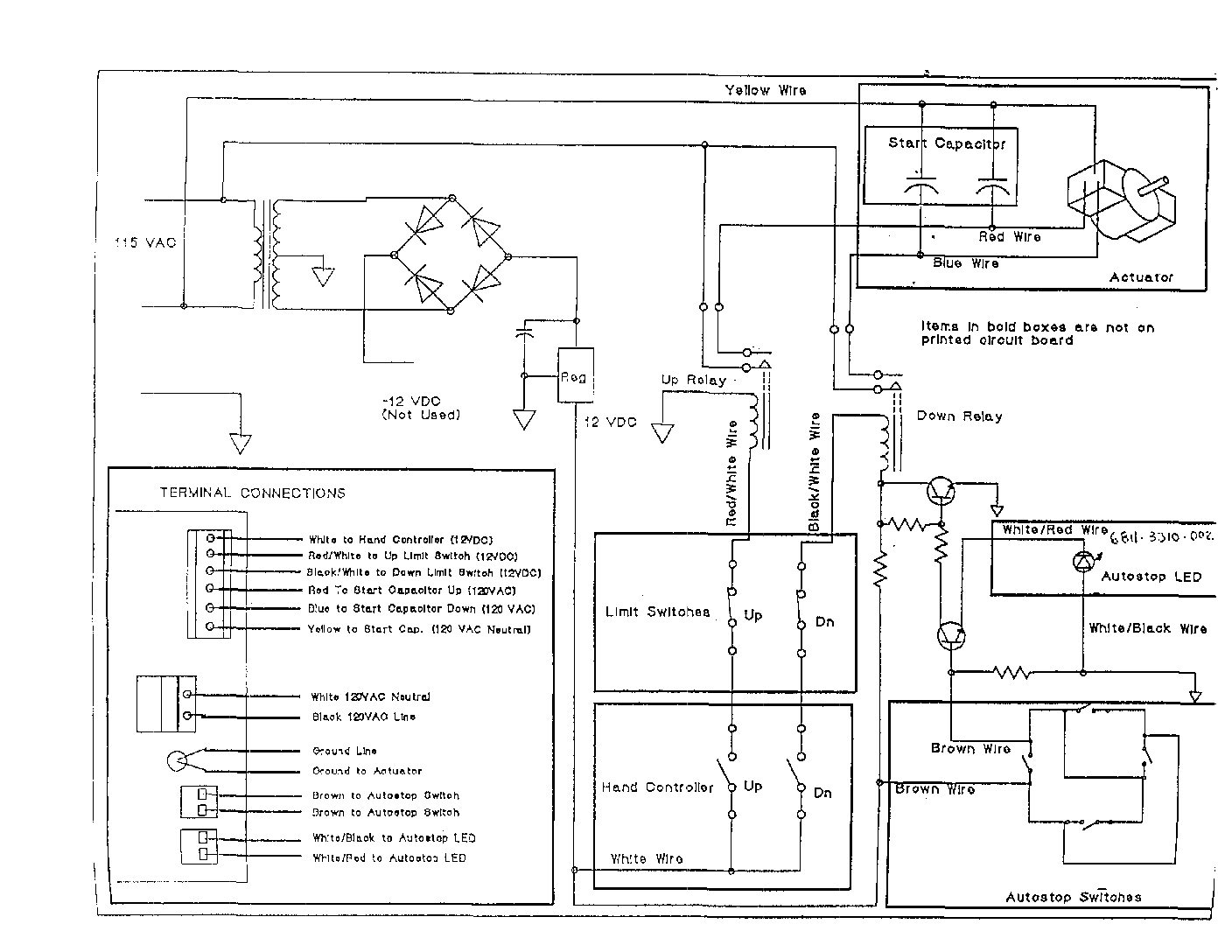

| Service Supplement | Electronic Circuit | ||
| Item # | Beacon P/N | Old P/N | Description | Repair Kits |
| 1 | 4107 6523 06 | 6812-2000-404 | Spirolox Ring, 1.125" | 290802-PG - Pressure Gasesincludes 10 each: #2, #4, #5, #6 |
| 2 | 4107 2097 29 | 0203-3217-870 | Spring, Bronze (pressure gases), Pk of 10 | |
| 4107 2097 30 | 0203-3218-870 | Spring, SS (VAC/WAGD), Pk of 10 | 290803-PG - Pressure Gases includes 10 each: #2, #4, #5, #6 | |
| 3 | 525344-00 | Secondary Check | ||
| 4 | 4107 2097 38 | 0210-0491-870 | O-Ring, Pk of 10 | 290805-PG - O2 includes 10 each: #7, #8 |
| 5 | 622601-PG | Rubber Bushing, Pk of 10 | ||
| 6 | 4107 2097 88 | 6803-2030-001 | Spirolox Ring, 1" | 290806-PG - Pressure but O2 includes 10 each: #7, #8 |
| 7 | 4107 6520 83 | 0221-3950-500 | Piston, all pressure gases but O2 | |
| 4107 6520 84 | 0221-3951-500 | Piston, O2 | 290806-PG - VAC/WAGD includes 10 each: #7, #8 | |
| 4107 6520 85 | 0221-3952-500 | Piston, VAC/WAGD | ||
| 8 | 4107 2097 40 | 0210-0496-870 | O-Ring, O2/VAC/WAGD, Pk of 10 | |
| 4107 2097 37 | 0210-0490-870 | O-Ring, all other gases, Pk of 10 | ||
| 9 | 4107 6520 88 | 0221-3961-535 | Cylinder, O2 | |
| 0221-3962-535 | Cylinder, N2O | |||
| 4107 6520 89 | 0221-3963-535 | Cylinder, VAC | ||
| 4107 6520 90 | 0221-3964-535 | Cylinder, AIR | ||
| n/a | 4107 4007 21 4107 4007 22 | 6812-9020-000 6812-9020-001 | AVSAFE Driver, #6 AVSAFE Driver, #8 |
