Lifeline 2-15 Hp Oil-Less Scroll Medical Air Systems (Pre-Total Alert models)
Manufacturer: BeaconMedaes
Category: Air Compressors (bare compressors)

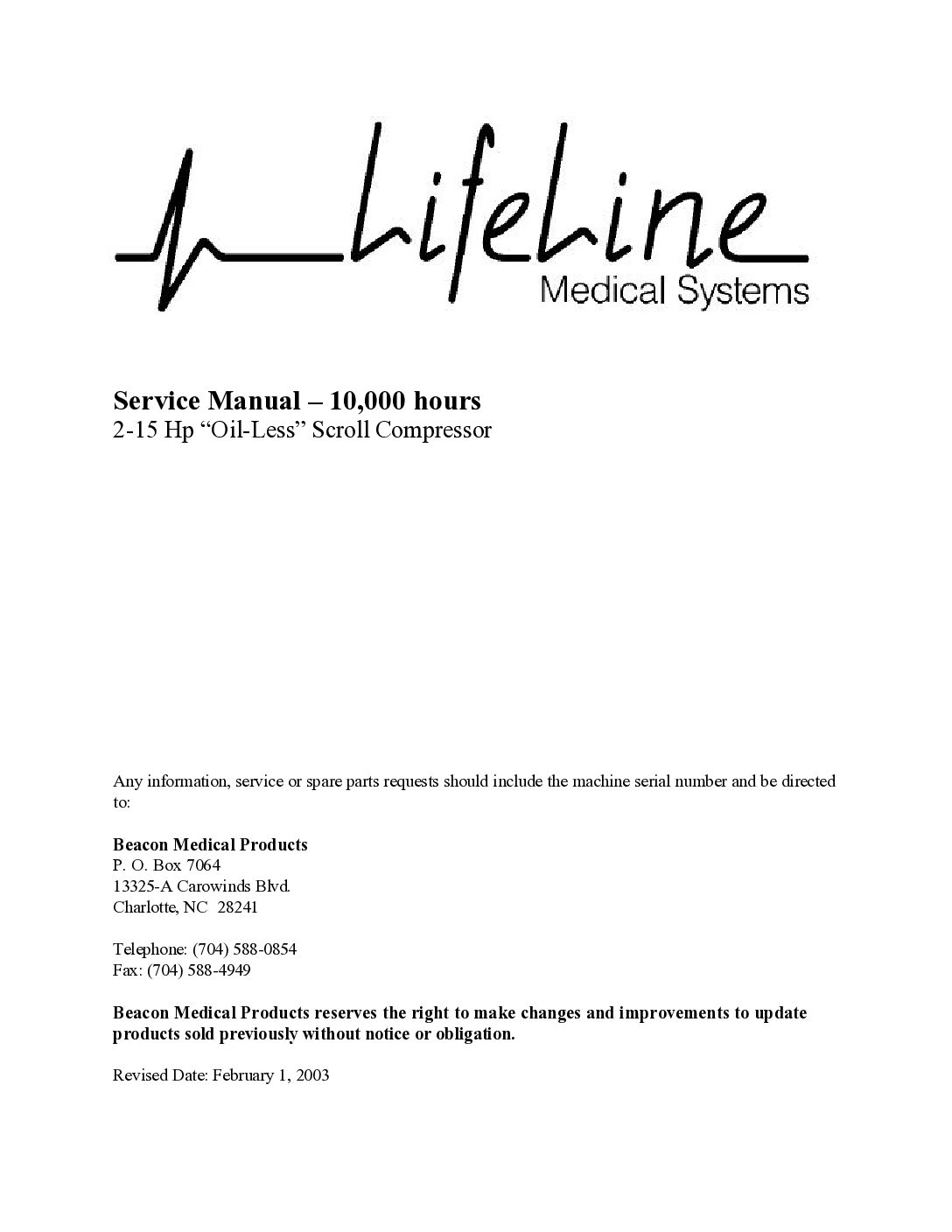

Documents & Manuals: View or Download

Equipment Description

The BeaconMedaes Lifeline 2-15 HP oil-less scroll medical air systems (pre-TotalAlert models) are scroll-type compressors that produce oil-free medical air. These earlier-generation systems preceded the TAE controller platform and are available in 2 through 15 horsepower configurations.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Routine Maintenance Kits
ConfigurationSee Note 1Inlet Filter ElementPre/Aft Filter ElementSee Note 2Inlet Filter ElementPre/Aft Filter Element
Duplex 2 - 7.54107 4000 004107 6524 76 (2)2901 2004 01 (4)KIT22-0124107 6524 76 (2)ELM22-001 (4)
Duplex 10 - 154107 4000 014107 6524 77 (2)2901 2004 02 (4)KIT22-0134107 6524 77 (2)ELM22-002 (4)
Triplex 10 -154107 4000 024107 6524 77 (3)2901 2004 03 (4)KIT22-0144107 6524 77 (3)ELM22-003 (4)
Quadraplex 104107 4000 034107 6524 77 (4)2901 2004 03 (4)KIT22-015A4107 6524 77 (4)ELM22-003 (4)
Quadraplex 154107 4000 044107 6524 77 (4)2901 2004 04 (4)KIT22-0154107 6524 77 (4)ELM22-005 (4)
Note 1: Supplied on units with serial number 188378 and greater.
Note 2: Supplied on units with serial number prior to 188378.
DescriptionLPS 2 HPLPS 3 HPLPS 5 HPLPS 7.5 HPLPS 10 HPLPS 15 HP
Discharge Retrofit4107 4000 054107 4000 05
AftercoolerAFT01-017AFT01-017AFT01-018AFT01-018AFT01-014AFT01-014
Aftercooler FanFAN02-002FAN02-002FAN02-003FAN02-003FAN02-003FAN02-003
Aftercooler Drain Solenoid, 1/4"VAL04-058VAL04-058VAL04-058VAL04-058VAL04-058VAL04-058
CompressorCOM07-003COM07-003COM07-007COM07-007COM07-007COM07-007
Discharge Check ValveVAL01-014VAL01-014VAL01-014VAL01-014VAL01-014VAL01-014
High Temperature Switch
NO Switch, 1/2" NPT, Closes at:
Epoxy Color Coded:		SWT03-014
343F
White		SWT03-015
405F
Orange		SWT03-016
443F
Blue		SWT03-017
495F
Olive Drab		SWT03-016
443F
Blue		SWT03-017
495F
Olive Drab
Inlet Filter AssemblyFLR01-005FLR01-005FLR01-005FLR01-005FLR01-006FLR01-006
Inlet Filter Element4107 6524 764107 6524 764107 6524 764107 6524 764107 6524 774107 6524 77
Motor 208/230/460VMOT03-021MOT04-0274107 6507 784107 6529 614107 6504 734107 6529 68
Relief Valve - Compressor 135#4107 6505 00
4107 6505 00
4107 6505 00
4107 6505 00
4107 6505 00
4107 6505 00
Relief Valve - Tank 125#4107 6510 284107 6510 284107 6510 284107 6510 284107 6510 284107 6510 28
Relief Valve - System 75#4107 6510 264107 6510 264107 6510 264107 6510 264107 6510 26VAL02-029
Electronic Tank Drain ValveVAL04-045VAL04-045VAL04-045VAL04-045VAL04-045VAL04-045
Tank Drain Cord4107 6513 864107 6513 864107 6513 864107 6513 864107 6513 864107 6513 86
Tip Seal Kit609758324609758324609758395609758395609758395609758395
V-Belt (s/n < 188378)BLT01-027 (1)BLT01-024 (1)4107 6512 99 (2)4107 6515 52 (2)4107 6512 99 (4)4107 6515 52 (4)
V-Belt (s/n > 188377)4107 6503 89 (1)4107 6503 90 (1)BLT01-054 (2)4107 6515 52 (2)BLT01-055 (4)4107 6515 52 (4)

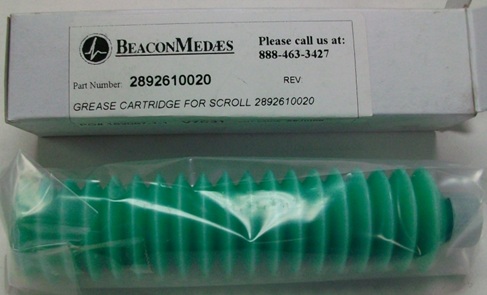

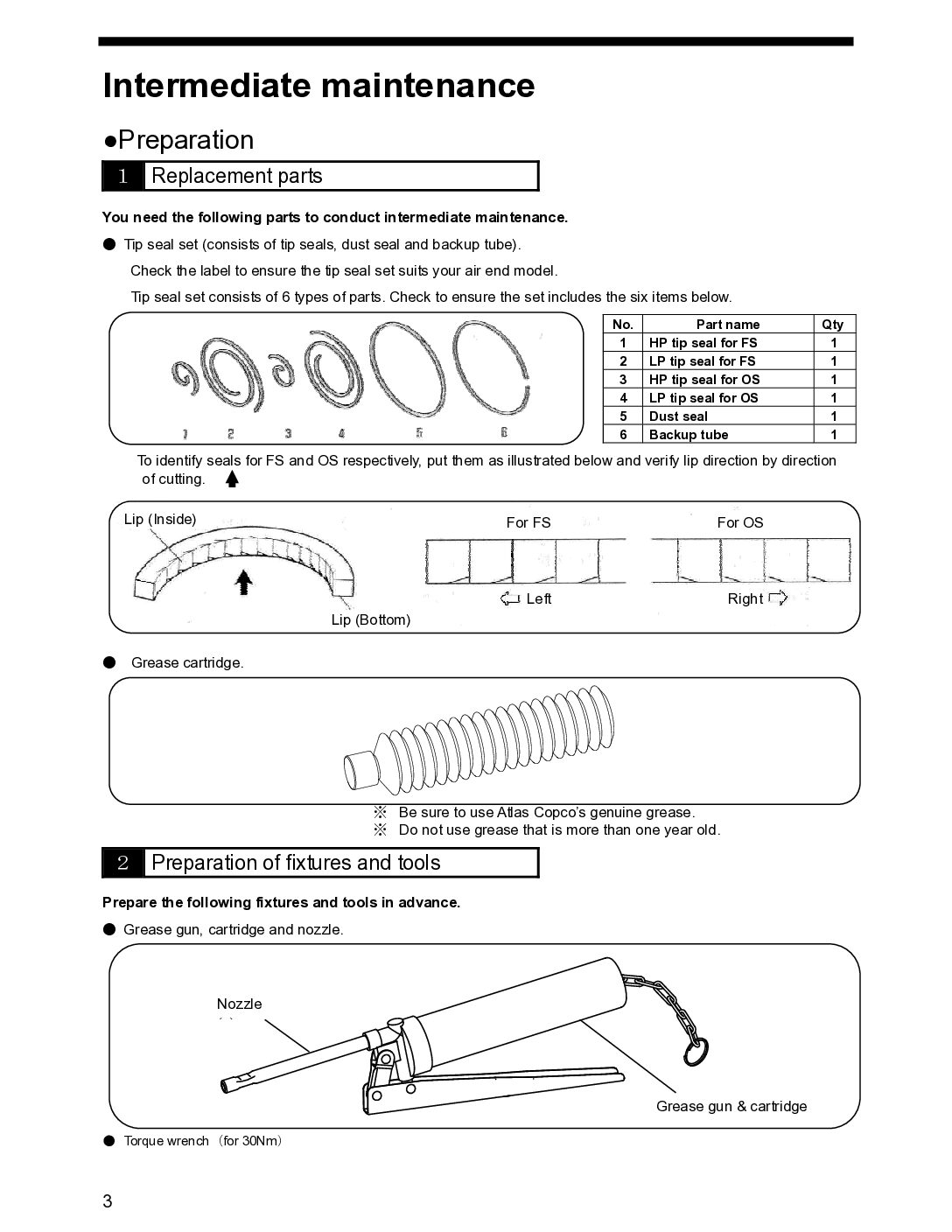

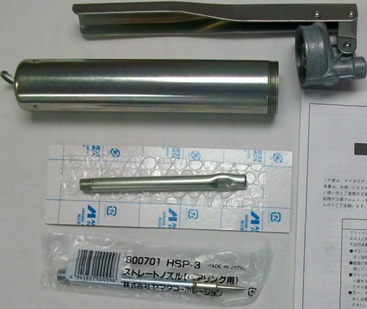

Scroll BearingGrease, Hitachi 500 Gram Tube
Krytox, 2oz Tube		GRS01-009
GRS01-007
Misc. Notes:Standard 15HP Triplex skid weights: 1 Conpressor Module (725lbs), 2 Compressor Module (1,250lbs), Dryer/Cabinet/Receiver (1,650lbs)
Retrofit Packages
Part NumberHPModel NumberVoltagePrintNotes
1316 0045 012LPSM-02S-S086X8 Bar
1316 0045 023LPSM-03S-S086X8 Bar
1316 0045 035LPSM-05S-S086X8 Bar
1316 0045 047.5LPSM-07S-S086X4107 8559 588 Bar
1316 0048 567.5LPSM-07S-S106X10 Bar
4107 4017 9110LPSM-10S-SCY460
41074017 8415LPSM-15S-S08CY460
41074017 8615LPSM-15S-S08CZ460Seismic, ISO
Reference Material
Duplex Systems

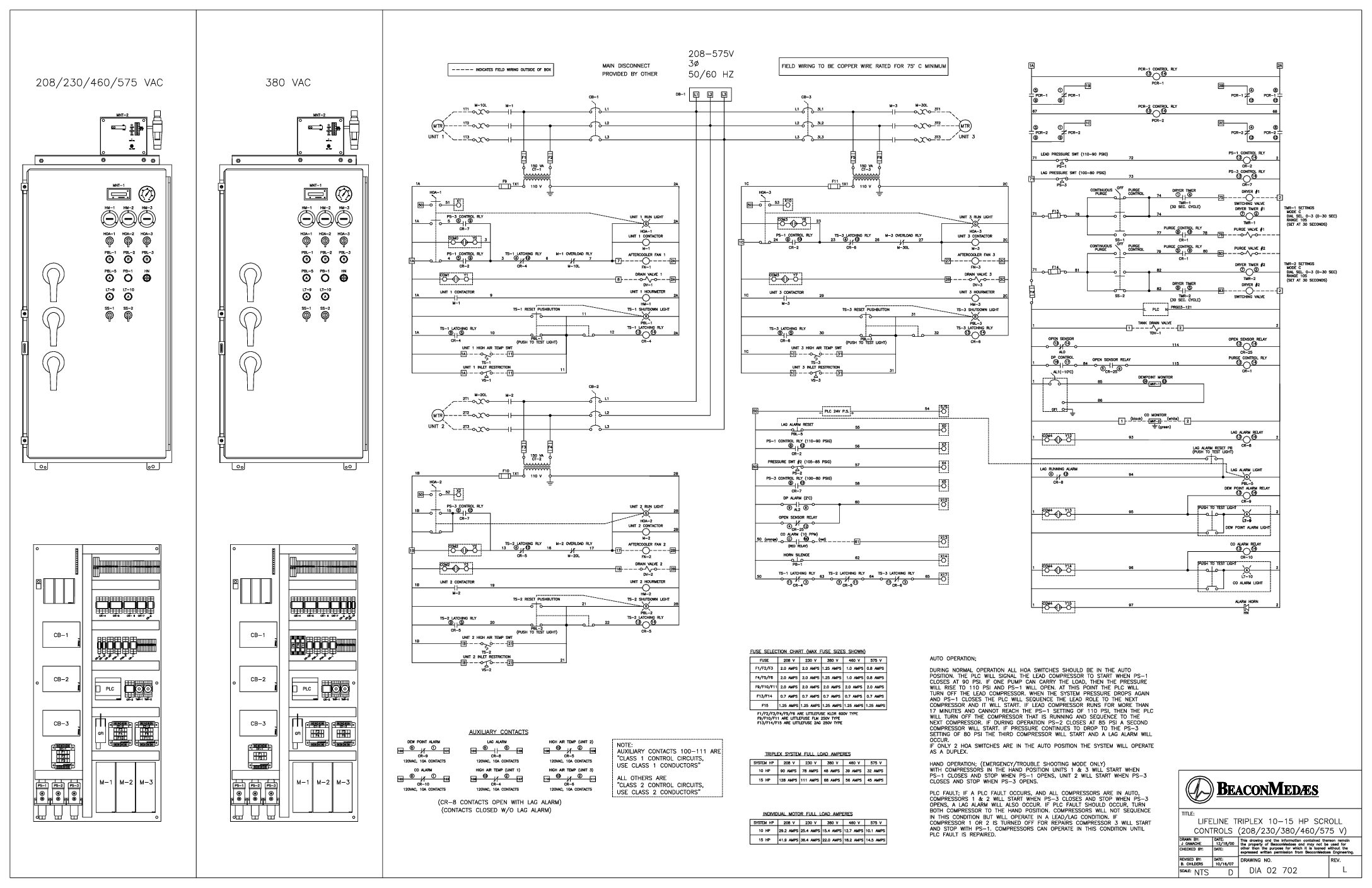

ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-2D-SD80SSB-130-01DIA0-0524107 8506 24DIA02-7004107 8506 25
LPS-3D-SD80SSB-130-01DIA0-0524107 8506 24DIA02-7004107 8506 25
LPS-5D-SD80SSB-130-01DIA0-0524107 8506 24DIA02-7004107 8506 25
LPS-7D-SD80SSB-130-01DIA0-052DIA04-448DIA02-700DIA07-050
LPS-10D-SD120SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
LPS-10D-SD200SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
LPS-10D-SD240SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
LPS-15D-SD120SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
LPS-15D-SD200SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
LPS-15D-SD240SSB-130-02DIA05-055DIA04-449DIA02-700DIA07-051
Duplex - Expandable to Triplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10D-SD200-TSSB-132-03DIA05-056XDIA04-553XDIA02-702DIA07-052X
LPS-10D-SD240-TSSB-132-03DIA05-056XDIA04-553XDIA02-702DIA07-052X
LPS-15D-SD200-TSSB-132-03DIA05-056XDIA04-553XDIA02-702DIA07-052X
LPS-15D-SD240-TSSB-132-03DIA05-056XDIA04-553XDIA02-702DIA07-052X
Triplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10T-SD200SSB-130-03DIA05-056DIA04-553DIA02-702DIA07-052
LPS-10T-SD240SSB-130-03DIA05-056DIA04-553DIA02-702DIA07-052
LPS-15T-SD200SSB-130-03DIA05-056DIA04-553DIA02-702DIA07-052
LPS-15T-SD240SSB-130-03DIA05-056DIA04-553DIA02-702DIA07-052
Triplex - Expandable to Quadruplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10T-SD200-QSSB-132-04DIA05-057XDIA04-554XDIA02-703DIA07-053X
LPS-10T-SD240-QSSB-132-04DIA05-057XDIA04-554XDIA02-703DIA07-053X
LPS-15T-SD200-QSSB-132-04DIA05-057XDIA04-554XDIA02-703DIA07-053X
LPS-15T-SD240-QSSB-132-04DIA05-057XDIA04-554XDIA02-703DIA07-053X
Quadruplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10Q-SD200SSB-130-04DIA05-057DIA04-554DIA02-703DIA07-053
LPS-10Q-SD240SSB-130-04DIA05-057DIA04-554DIA02-703DIA07-053
LPS-15Q-SD200SSB-130-04DIA05-057DIA04-554DIA02-703DIA07-053
LPS-15Q-SD240SSB-130-04DIA05-057DIA04-554DIA02-703DIA07-053
Quadruplex - Expandable to Pentaplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10Q-SD200-PSSB-132-05DIA05-162XDIA04-599XDIA02-719DIA07-075X
LPS-10Q-SD240-PSSB-132-05DIA05-162XDIA04-599XDIA02-719DIA07-075X
LPS-15Q-SD200-PSSB-132-05DIA05-162XDIA04-599XDIA02-719DIA07-075X
LPS-15Q-SD240-PSSB-132-05DIA05-162XDIA04-599XDIA02-719DIA07-075X
Pentaplex Systems
ConfigurationSpec SheetPID DrawingGA DrawingElectrical DrawingInstallation Drawing
LPS-10P-SD200SSB-130-05DIA05-162DIA04-559DIA02-719DIA07-075
LPS-10P-SD240SSB-130-05DIA05-162DIA04-559DIA02-719DIA07-075
LPS-15P-SD200SSB-130-05DIA05-162DIA04-559DIA02-719DIA07-075
LPS-15P-SD240SSB-130-05DIA05-162DIA04-559DIA02-719DIA07-075
