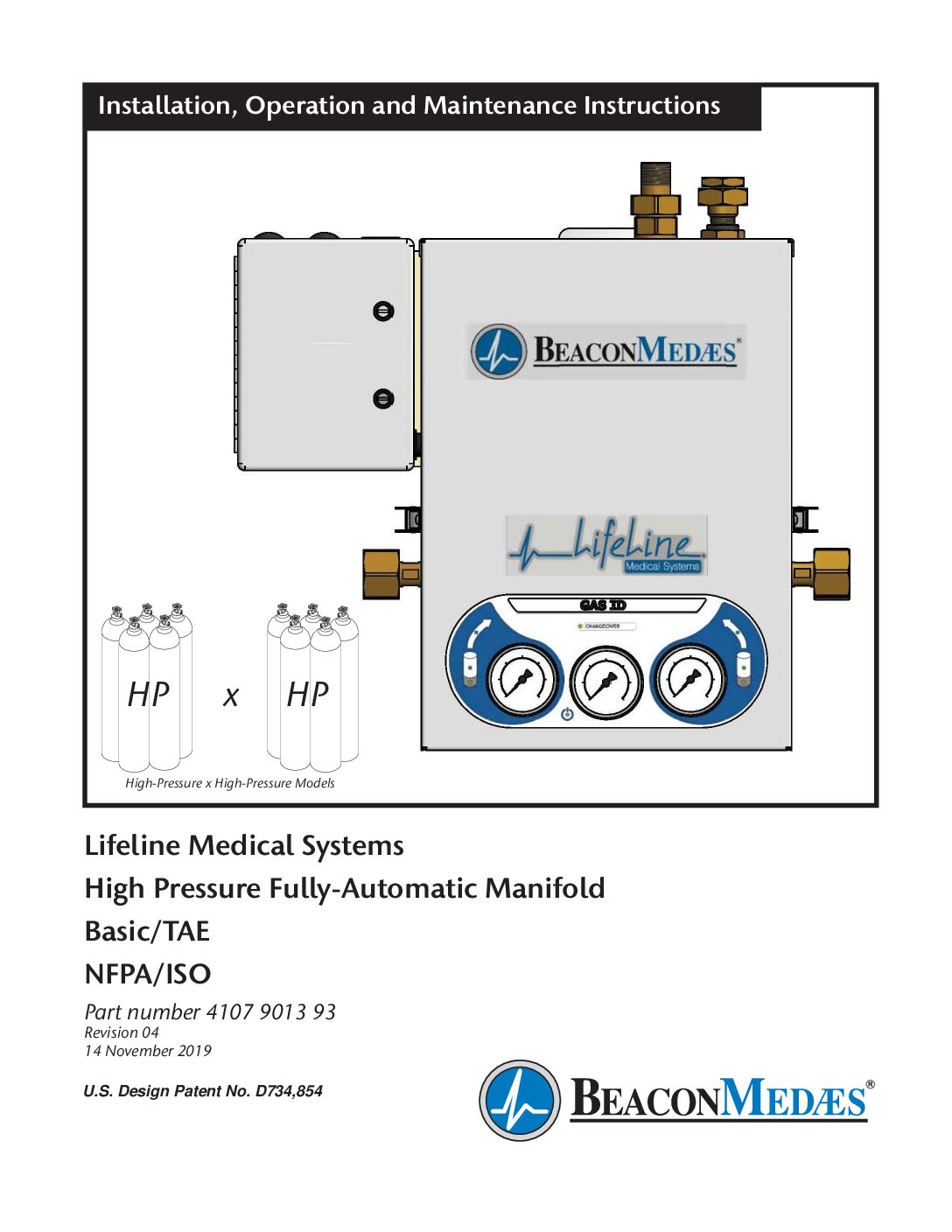

Lifeline HPxHP Manifold

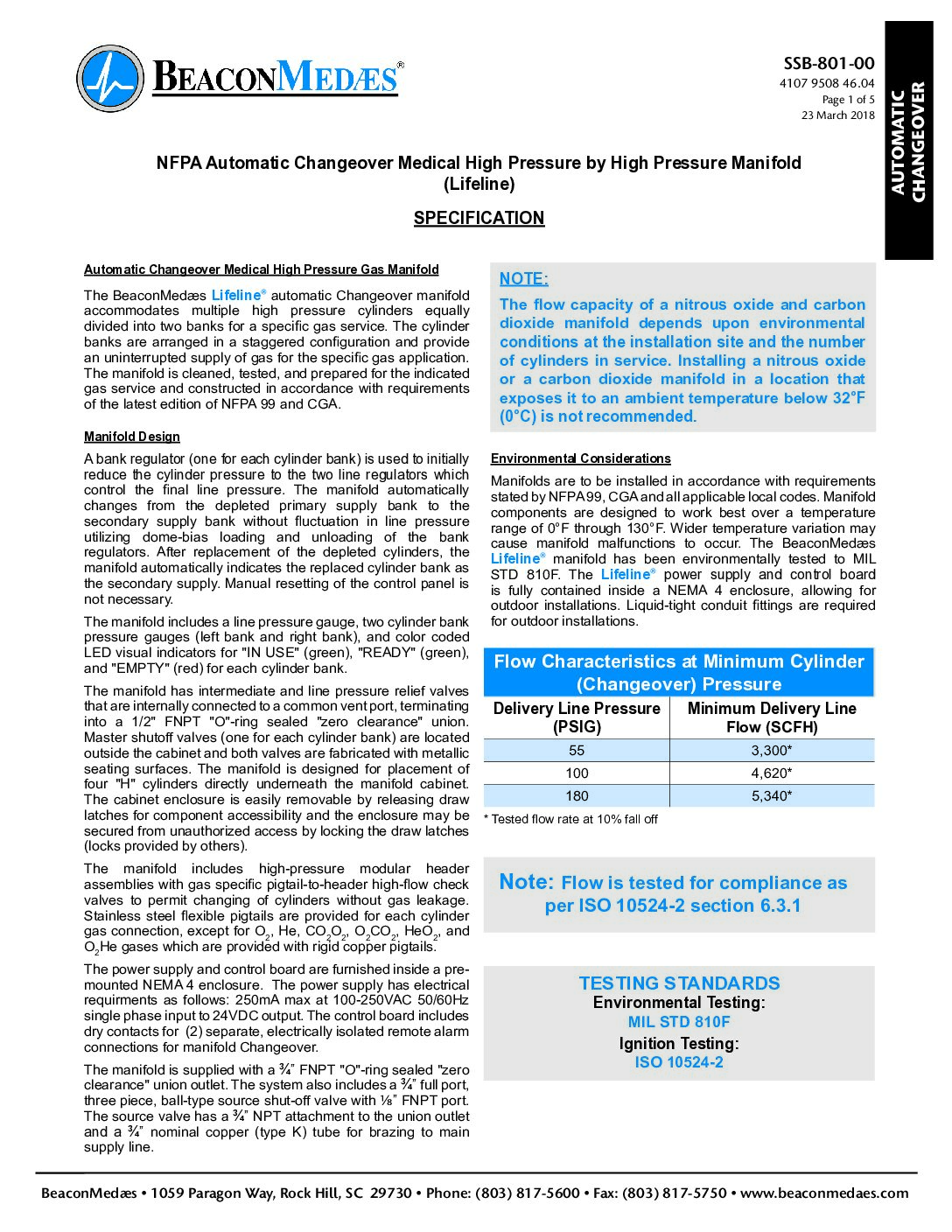

Equipment Description

The Lifeline Automatic Manifold is designed in accordance with NFPA 99 and CSA standards. The design, validated through extensive testing, ensures the manifold maintains its reliability while reducing leak potential and avoiding wasteful gas losses. The NEMA 4 electrical enclosure and environmental testing support outdoor installations.

This library entry covers the High Pressure x High Pressure (HPxHP) automatic changeover configuration for dual-bank medical gas cylinder supply. Official BeaconMedaes documentation also lists Liquid x Liquid, Liquid x High Pressure, and high-pressure reserve assemblies as related Lifeline Automatic Manifold configurations.

The HPxHP manifold uses dome-biased primary regulators to optimize flow without heaters, helping prevent ice formation. An advanced forging design reduces leaks by eliminating N.P.T. connections and consolidating regulators and valves. High-pressure headers are tested for endurance, ignition, and flow, and are specified without fluoropolymers.

Key Features

• NFPA 99 and CSA design; NEMA 4 enclosure for outdoor installation.
• HPxHP automatic changeover for continuous dual-bank cylinder supply.
• Delivery pressure options of 50, 100, and 180 psig across the Lifeline family.
• Standard or TotalAlert Embedded electronics with bank and delivery pressure transducers.
• Ethernet remote monitoring with email notifications for alarm and pressure warnings.
• Color-coded LED bank status: In Use (green), Ready (green), Empty (red), and yellow changeover indication.

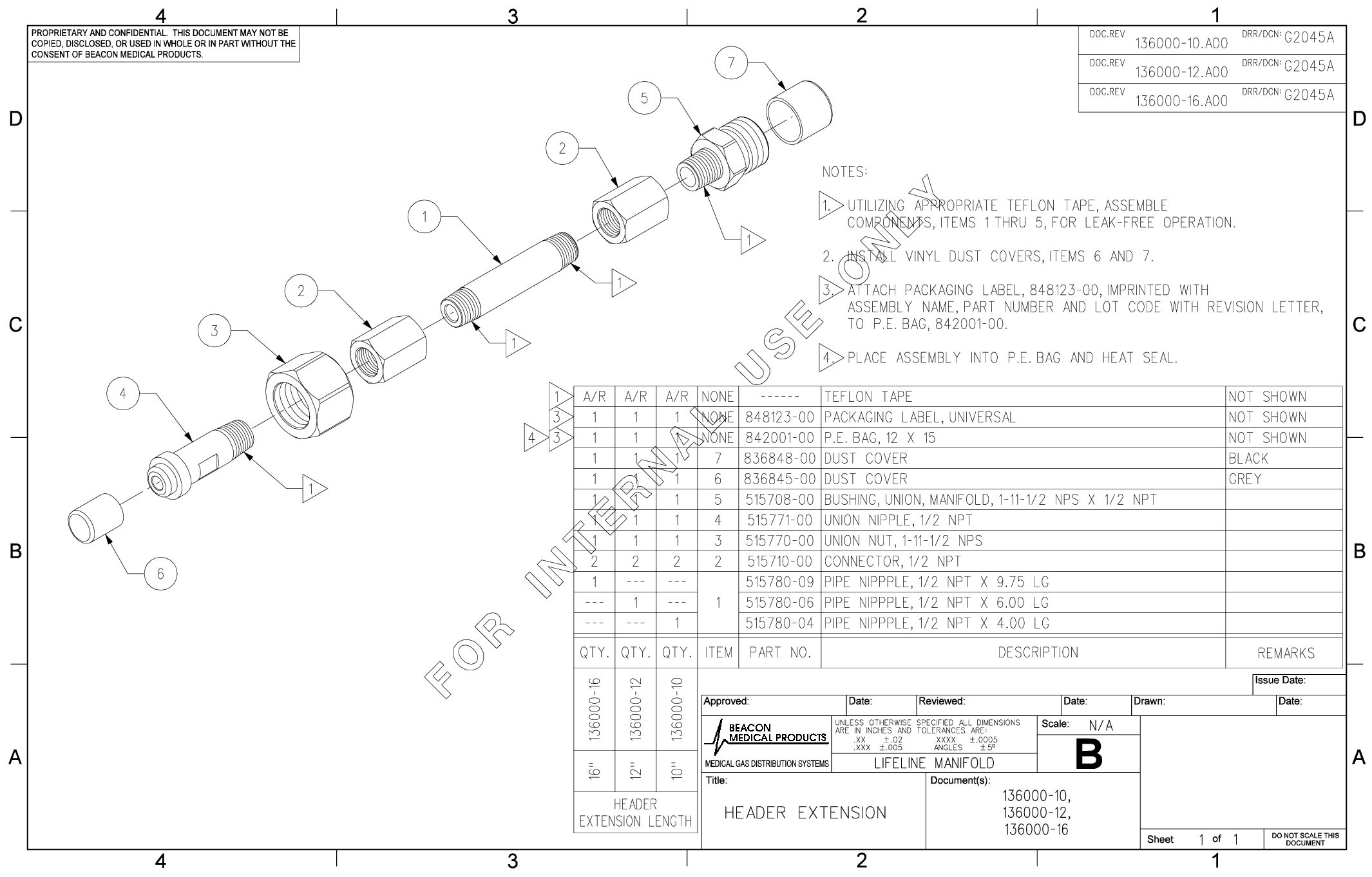

• Bracket-mount installation with source valve and gas-tight unions for system and vent piping.
• Compatible tailpipes and pigtails for oxygen, nitrogen, nitrous oxide, and other medical gas services.
