BeaconMedaes Gemini Outlet Finish Assembly
Documents & Manuals: View or Download
84770600.B00 (MAN01-049) Gemini, Diamond II and III Medical Gas Outlets
View or Download
CW Gemini DISS Parts View
View or Download

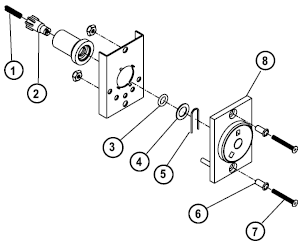

Console Gemini FA Parts View
View or Download
Console Gemini RI Parts View
View or Download
Console QC Image
View or Download
Gemini Image
View or Download

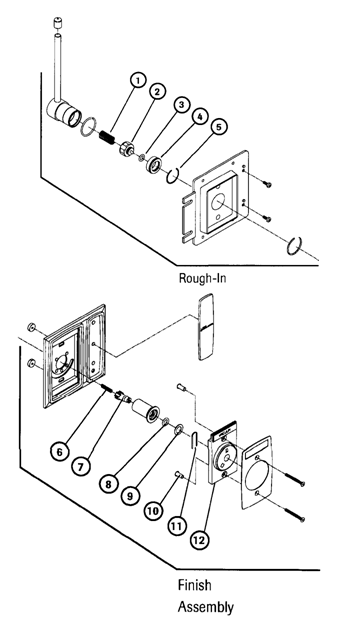

Gemini QC Concealed Parts View
View or Download

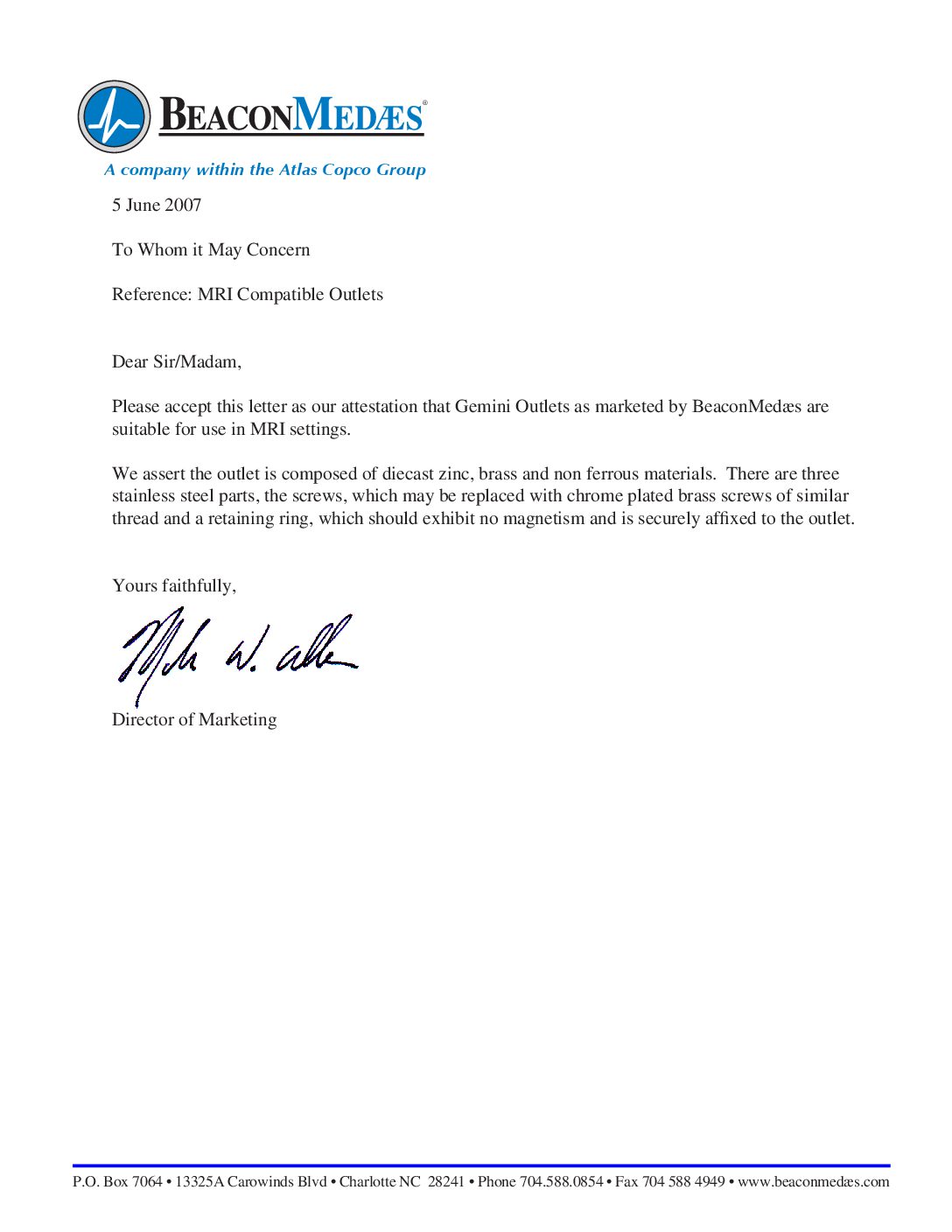

MRI
View or Download
Wall DISS Image
View or Download
SSB-840-12 Gemini Quick-Connect and DISS Outlets Datasheet
Official BeaconMedaes specification sheet for Gemini wall/ceiling and console quick-connect and DISS outlets, including finish and rough-in part numbers.
View or Download

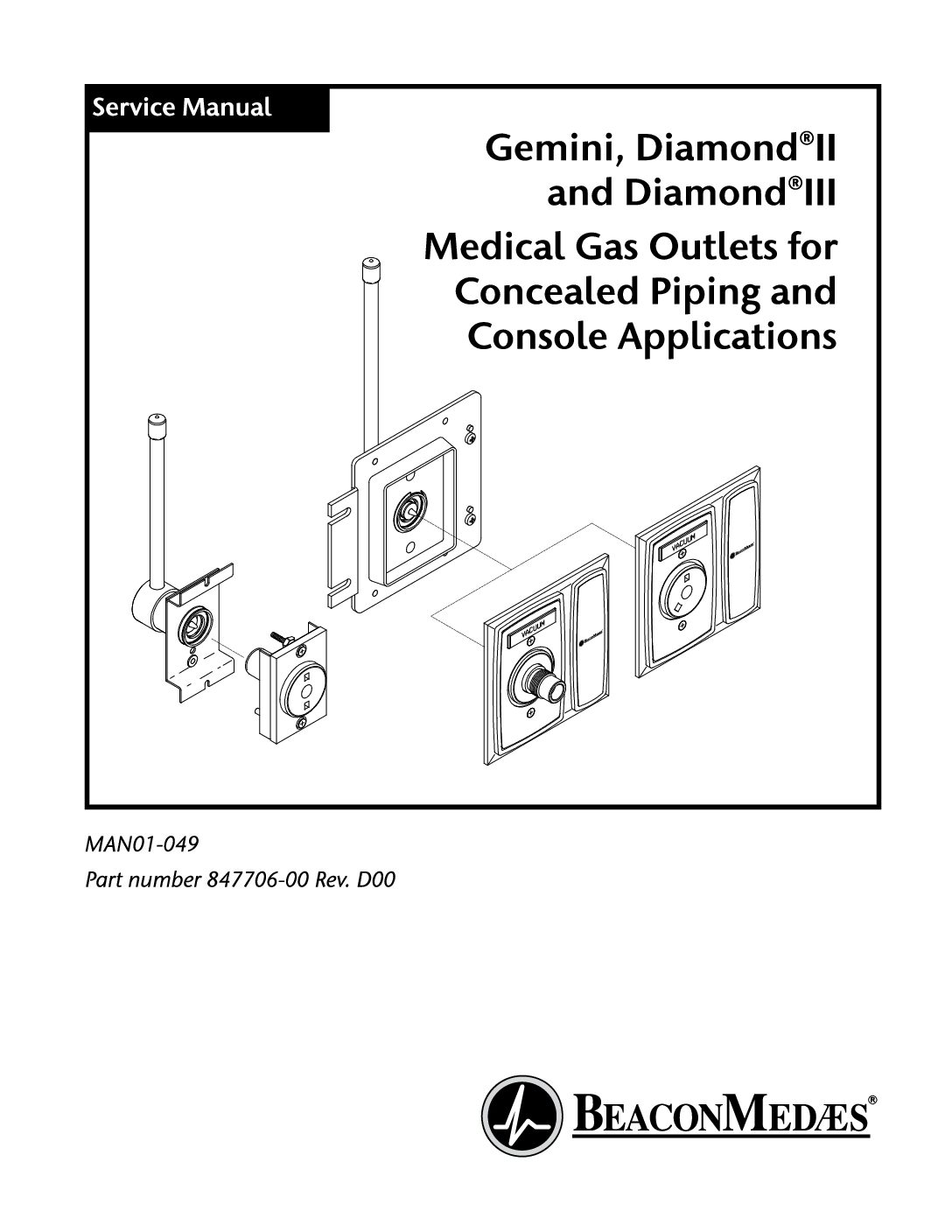

Gemini / Diamond II / Diamond III Outlets NFPA Instruction Book
Official BeaconMedaes installation and maintenance instruction book for Gemini, Diamond II, and Diamond III concealed piping and console outlets.
View or DownloadEquipment Description
Gemini Medical Gas Outlets, part of the Diamond Series, are designed to be interchangeable with Ohio/Ohmeda/Medaes Diamond II and Diamond III medical gas outlets and accept only Diamond style pin-indexed adapters. A complete outlet consists of a rough-in permanently installed in the wall, ceiling, or manufactured assembly and a matching gas-specific finish assembly.
Outlet finish assemblies are a single unit keyed for gas specificity with a non-removable pin that aligns to a corresponding hole in the rough-in. Gas identification uses a color-coded circular keying disk and a color-coded latch label marked with the gas name in a contrasting color per NFPA 99 or ISO 7396. Wall and ceiling dress plates are integral to the finish assembly. Console-style outlets do not include a dress plate.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
Key Features
- NFPA 99 compliant, UL listed, and 100% leak tested; cleaned for oxygen service.
- Fully interchangeable with Diamond III outlets manufactured before 2001.
- Diamond II outlets can be upgraded to Diamond III or Gemini with a small modification.
- Gas-specific latch geometry; finish assemblies are not interchangeable across gas services.
Finish Assembly Part Numbers
Part numbers below are from BeaconMedaes specification sheet SSB-840-12 (4107 9511 58).
| Gas Service | Color Code | Wall/Ceiling Quick Connect | Console Quick-Connect | Wall/Ceiling DISS |
|---|---|---|---|---|
| Oxygen | Green | 234610-00 | 234810-00 | 234710-00 |
| Nitrous Oxide | Blue | 234611-00 | 234811-00 | 234711-00 |
| Medical Air | Yellow | 234612-00 | 234812-00 | 234712-00 |
| Vacuum | White | 234613-00 | 234813-00 | 234713-00 |
| WAGD | Purple | 234619-00 | 234819-00 | 234719-00 |
| Nitrogen | Black | — | — | 234714-00 |
| Carbon Dioxide | Gray | — | — | 234720-00 |
Accessories
| Accessory | Finish Assembly |
|---|---|
| Vacuum Slide | 234600-00 |
| Blank Outlet | 234601-00 |
