BeaconMedaes TotalAlert Infinity Alarm

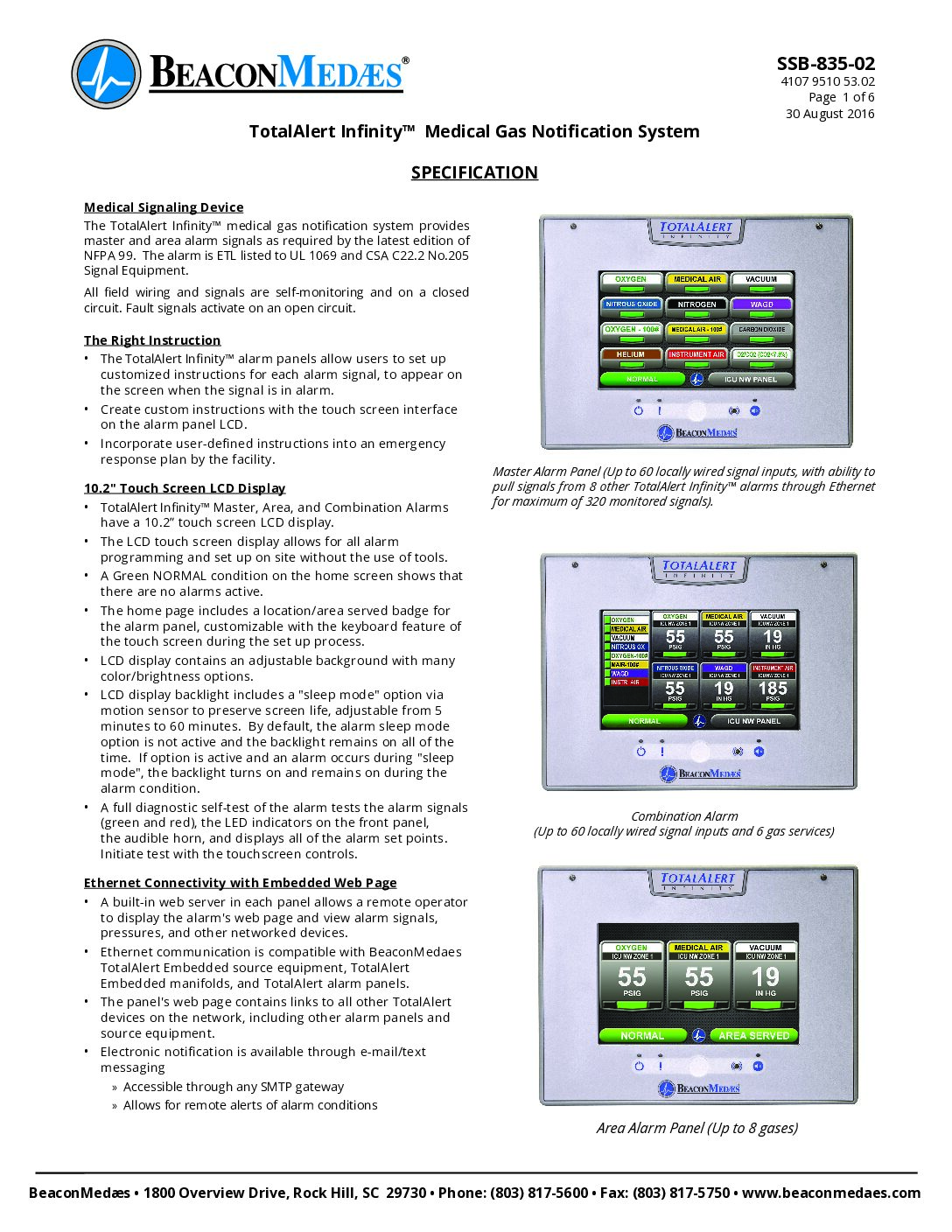

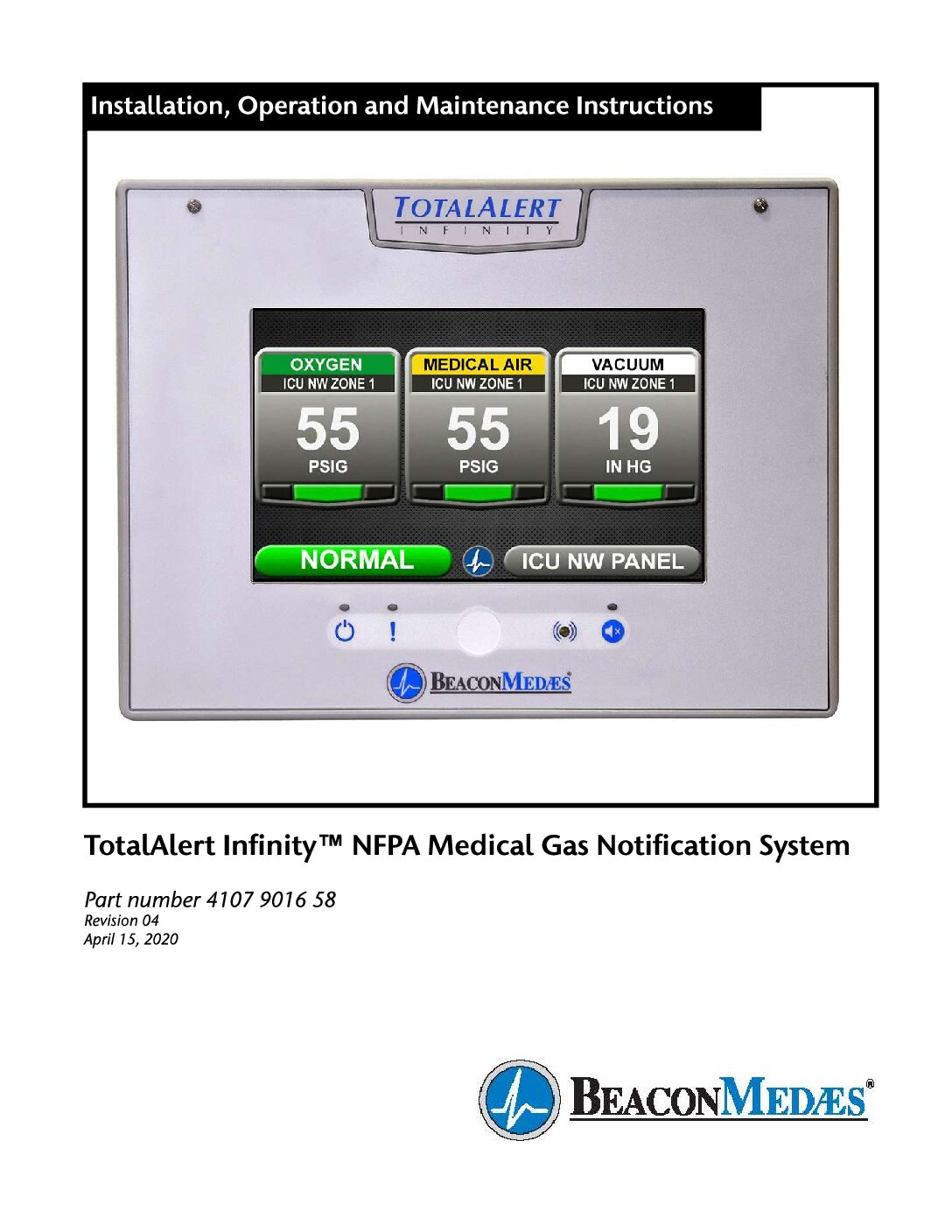

Documents & Manuals: View or Download
Equipment Description

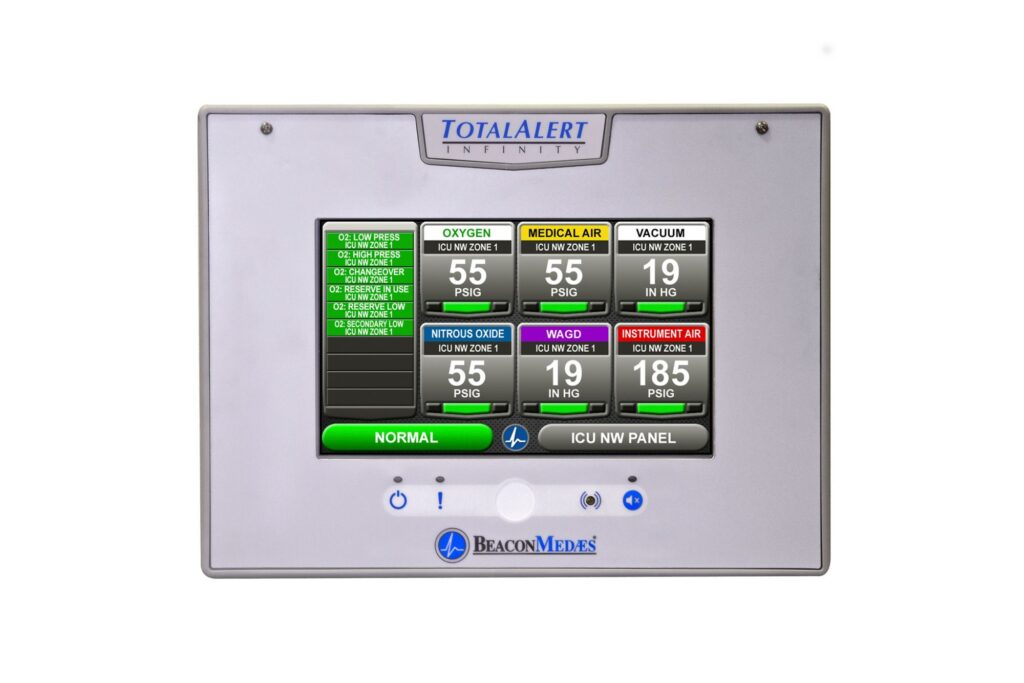

The TotalAlert Infinity Notification System is engineered for medical gas monitoring with customized emergency instructions on a 10.2” LCD touch display. Ethernet panel mirroring supports 24/7 monitoring from a central location, and the embedded network can send alarm notifications to smartphones.
The system monitors up to 320 signals in master, area, and combination configurations. Gas-specific sensors packaged with the alarm rough-in box include gas-type verification and heartbeat diagnostics. An on-board history log records alarm events for download and print during accreditation reviews. Retrofit kits are available for older BeaconMedaes TotalAlert 2 and MEGA2 panels and most competitor panels.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
Key Features
- 10.2" color LCD touchscreen for custom emergency instructions, brightness, and gas badge colors
- Ethernet mirroring of alarm panels for centralized 24/7 monitoring
- Smartphone alarm notifications via the embedded network
- Up to 320 signals with master, area, and combination configurations
- Sensor expansion kits for additional gases
- 4-20 mA device monitoring for flow, level, concentration, and humidity readings
- On-board event history log to support accreditation documentation
- Retrofit path for TotalAlert 2, MEGA2, and most existing competitor panels
Specifications
| Item | Value |
|---|---|
| Display | 10.2" color LCD touchscreen |
| Signal capacity | Up to 320 signals |
| Configurations | Master, area, and combination |
| Network | Ethernet panel mirroring and smartphone notifications |
| Analog inputs | 4-20 mA device monitoring (devices not included with the alarm) |
| Upgrade path | Retrofit kits for TotalAlert 2, MEGA2, and most competitor panels |
