BeaconMedaes Mega 3 Alarm
Manufacturer: BeaconMedaes
Category: Alarms
Model Number: MEGA3
Source: BeaconMedaes MEGA3 Medical Gas Alarm

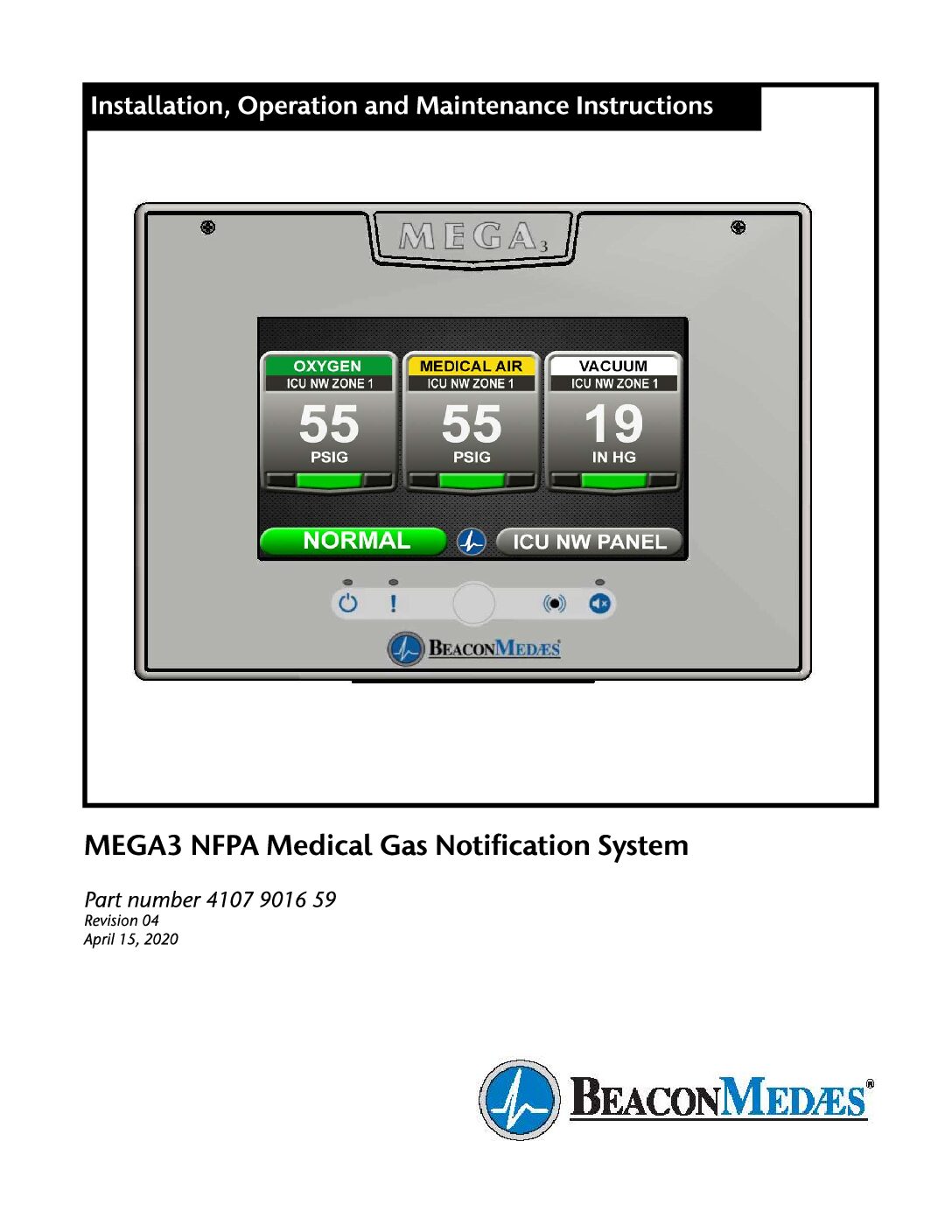

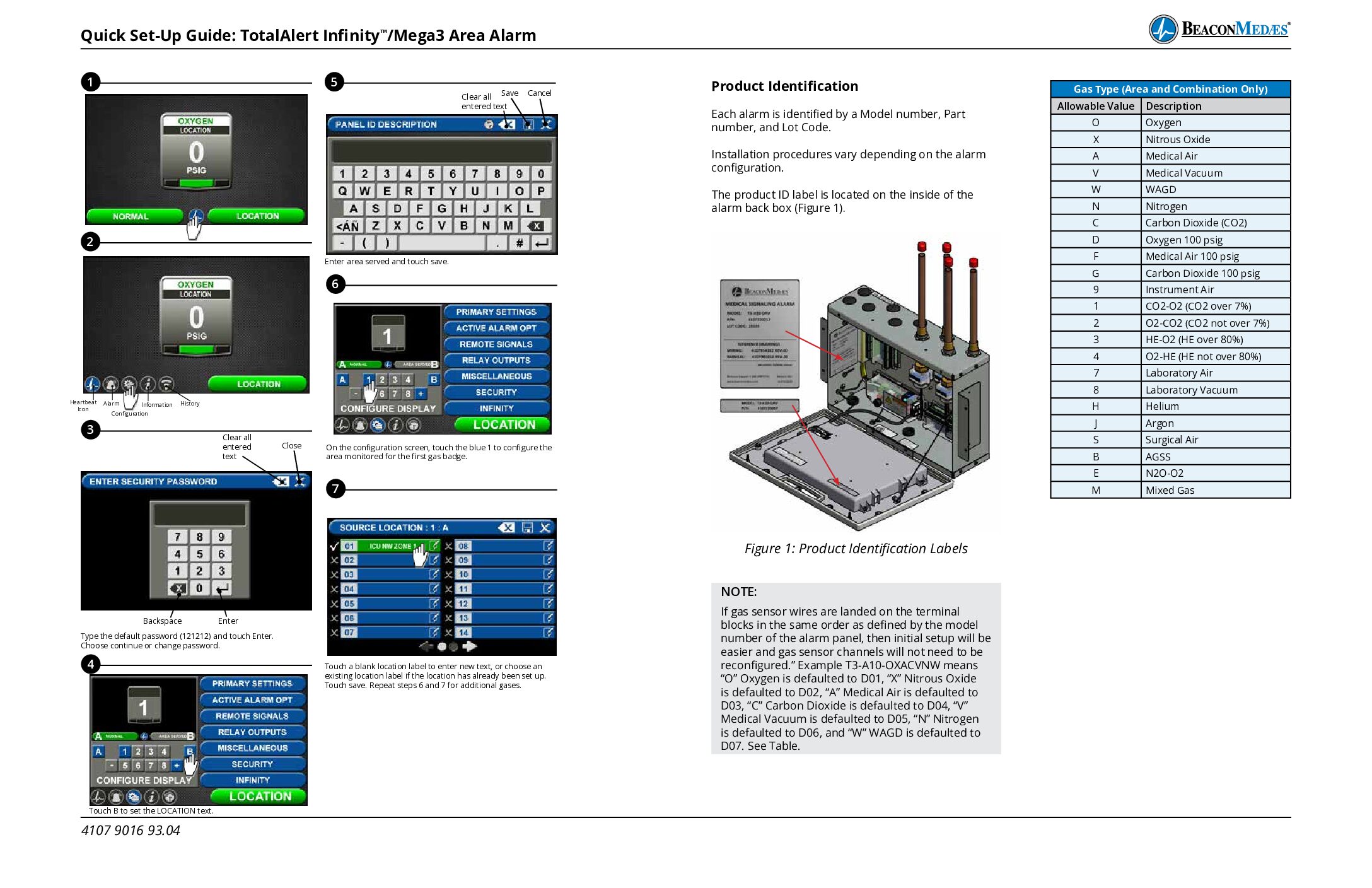

Documents & Manuals: View or Download

Equipment Description

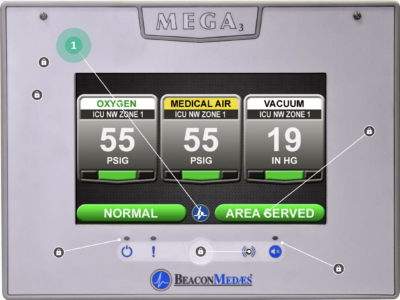

The MEGA3 medical gas notification alarms are robust, simple and compact, providing master and area alarm signals. The MEGA3 alarms feature a colorful 10.2” LCD touch screen display, allowing users to do all set up and programming through the display screen, with the additional ability to adjust screen brightness and gas badge colors.

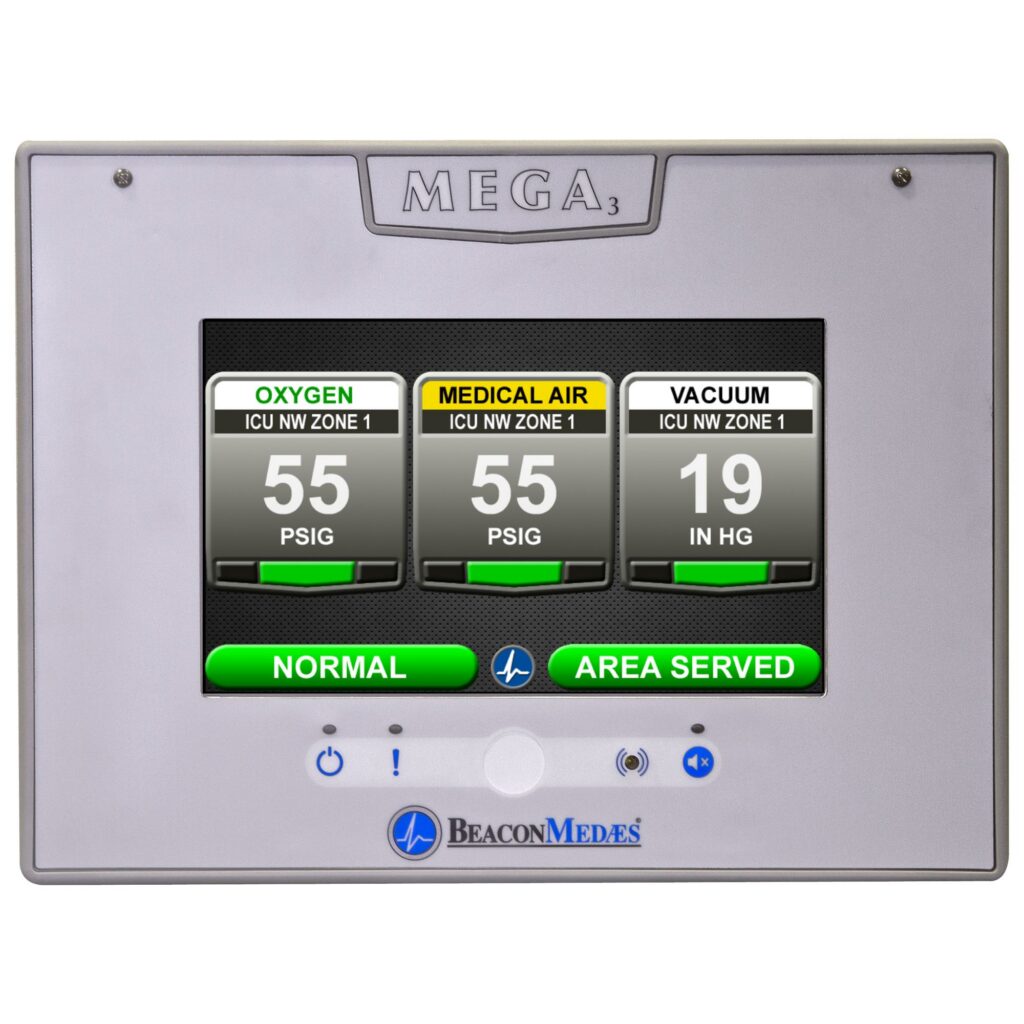

The MEGA3 master alarm monitors 40 signals, displaying equipment details and status in Red (alarm) or Green (normal). The area alarm tracks 8 gases, showing usage, pressure, and status. Gas-specific digital sensors include a transducer for calibrated signals plus heartbeat diagnostics, and can be mounted locally or remotely.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Key Features

  • 10.2" color LCD touchscreen for setup, programming, brightness, and gas badge colors
  • Master configuration monitors 40 signals with red alarm and green normal status
  • Area configuration tracks up to 8 gases with usage, pressure, and status
  • Gas-specific digital sensors with heartbeat diagnostics; local or remote mount
  • Monitors 4-20 mA device outputs with customizable on-screen badges
  • Home-screen Location/Area Served badge and full diagnostic self-test of LEDs, horn, and set points
  • Compliant with NFPA 99 and CSA C22.2 No. 205; ETL listed to UL 1069

Specifications

Item Value
Display10.2" color LCD touchscreen
Master capacity40 signals
Area capacity8 gases
Analog inputs4-20 mA device monitoring
ComplianceNFPA 99, CSA C22.2 No. 205, ETL listed to UL 1069
