The Gemini rough-in is the permanently installed wall, ceiling, or console base for Gemini medical gas outlets. A complete outlet pairs this rough-in with a matching gas-specific finish assembly. Gemini outlets are designed to be interchangeable with Ohio/Ohmeda/Medaes Diamond II and Diamond III outlets and accept only Diamond style pin-indexed adapters.

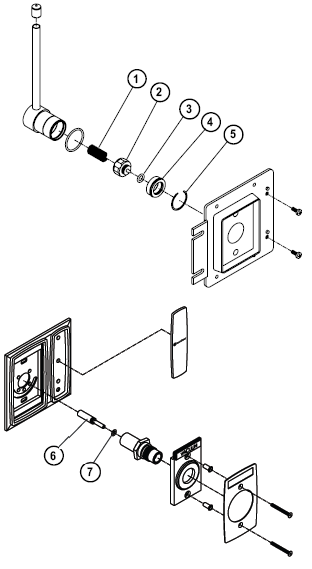

The rough-in uses a die-cast mounting plate with interlocking flanges on all four sides, attached with 10-24 hex-head screws to form a single installation unit. A 1/2" (13 mm) raised plaster flange is provided. A brass secondary check mounts to the plate and uses a single integral neoprene seal that is serviceable from the front, with a brass valve body and an internal stainless steel (vacuum) or phosphor bronze (pressure gases) spring.
A 7" (178 mm) inlet tube is silver-brazed to the brass check body and rotates 360° with or without the finish installed to simplify piping. Free rotation can be restrained for positioning during installation.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
Key Features
- NFPA 99 compliant, UL listed, and 100% leak tested; cleaned for oxygen service.
- Interlocking four-side mounting flanges for ganged outlet banks.
- Front-serviceable secondary check; 360° swivel inlet tube.
- Fully interchangeable with Diamond III rough-ins manufactured before 2001.
Rough-In Part Numbers
Part numbers below are from BeaconMedaes specification sheet SSB-840-12 (4107 9511 58). Wall/ceiling DISS shares the same rough-in part numbers as wall/ceiling quick-connect for the common gas services.
| Gas Service | Color Code | Wall/Ceiling (QC and DISS) | Console Quick-Connect |
|---|---|---|---|
| Oxygen | Green | 234510-00 | 234410-00 |
| Nitrous Oxide | Blue | 234511-00 | 234411-00 |
| Medical Air | Yellow | 234512-00 | 234412-00 |
| Vacuum | White | 234513-00 | 234413-00 |
| WAGD | Purple | 234519-00 | 234419-00 |
| Nitrogen (DISS only) | Black | 234514-00 | — |
| Carbon Dioxide (DISS only) | Gray | 234520-00 | — |
Accessories
| Accessory | Rough-In Assembly |
|---|---|
| Vacuum Slide | 234500-00 |
| Blank Outlet | 234500-00 |
Installation Dimensions
Outlet center-to-center spacing is 4-1/2" (114 mm). Depth in wall from the back of the plaster is approximately 1-3/4" (45 mm).
| Number of Outlets | Rough-In Overall Length | Plaster Opening | Finish Overall Length |
|---|---|---|---|
| 1 | 5-1/4" | 3-1/2" H × 2-1/2" W | 4-1/2" |
| 2 | 9-3/4" | 3-1/2" H × 7" W | 9" |
| 3 | 14-1/4" | 3-1/2" H × 11-1/2" W | 13-1/2" |
| 4 | 18-3/4" | 3-1/2" H × 16-3/4" W | 18" |
