BeaconMedaes DiamondCare Outlet Finish Assembly

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.

Manufacturer notes

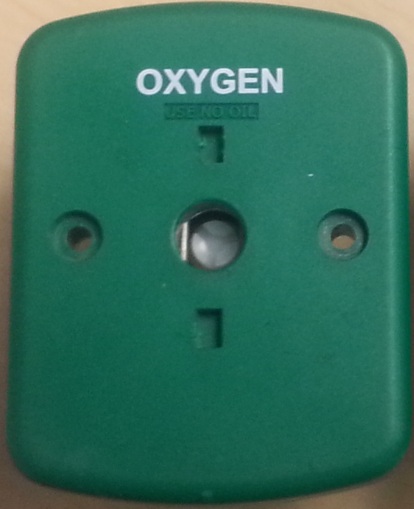

BeaconMedaes DiamondCare medical gas outlets pair a gas-specific finish assembly with a matching rough-in. The finish assembly is the keyed front body technicians replace in the field: color-coded keying disk, twist-lock barrel cartridge, and a flush interlocking flange with a transparent dust shield.

Key features

• Twist-lock barrel cartridge allows tool-free replacement of the primary check valve.
• Keying disks are UV-stable, resistant to quaternary cleaners, and include Biomaster antimicrobial protection.
• Available in D.I.S.S., Geometric Index, Latch Index, and Pin Index styles, wall and console.
• Listed by UL and CSA and manufactured to applicable NFPA 99, CGA, and CSA standards. Cleaned for oxygen service, pressure tested, capped, and bagged before shipment.

Finish assembly (latch valve)

A complete DiamondCare medical gas outlet is a gas-specific rough-in plus a matching latch valve assembly and trim plate installed after the wall finish. The finish assembly is the keyed front body technicians replace in the field: color-coded keying disk, detachable or twist-lock barrel, and trim plate. Order it as a complete assembly or as a finish-only kit.

The keying disk is a UV-stable polymer that resists quaternary cleaners and includes Biomaster antimicrobial protection. Pressure-gas rough-ins keep a front-serviceable secondary check so gas does not flow when the finish assembly is removed. Vacuum and WAGD have no secondary check, per NFPA 99.

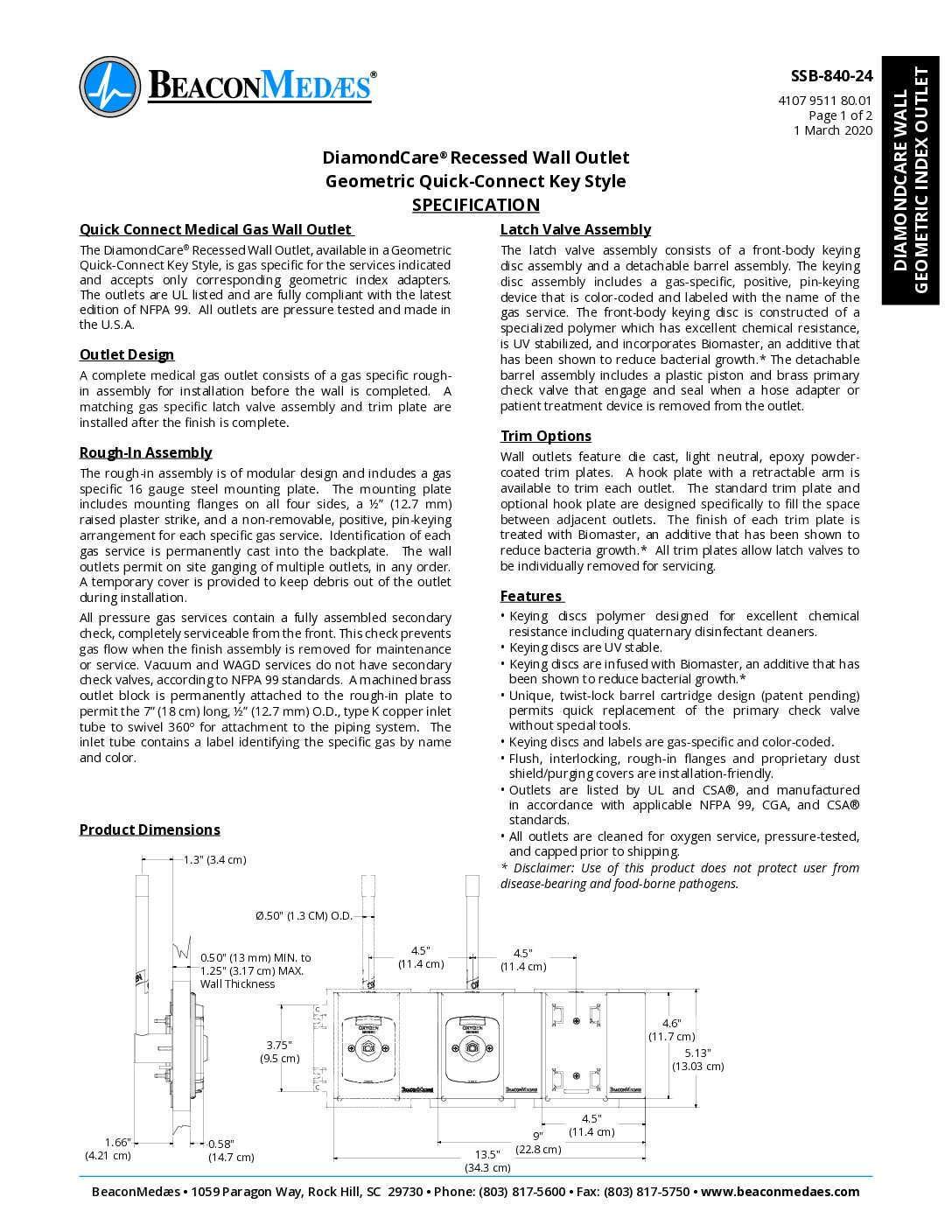

Geometric Index finish assemblies (SSB-840-24)

Part numbers from the official BeaconMedaes Geometric Quick-Connect recessed-outlet datasheet. Finish assembly includes the latch valve with a standard trim plate. Hook-plate columns are latch-valve only (no trim plate).

Pin-Index (Diamond) finish assemblies (SSB-840-22)

CO2, nitrogen, instrument air, and O2/CO2 finishes are offered in DISS key style. ISO-labeled confirmations are also available. Pair every finish assembly with the matching gas-specific rough-in; the latch valve is pin-indexed to that rough-in to prevent cross-connection.
