Amico Digital Alert 2 Manifold

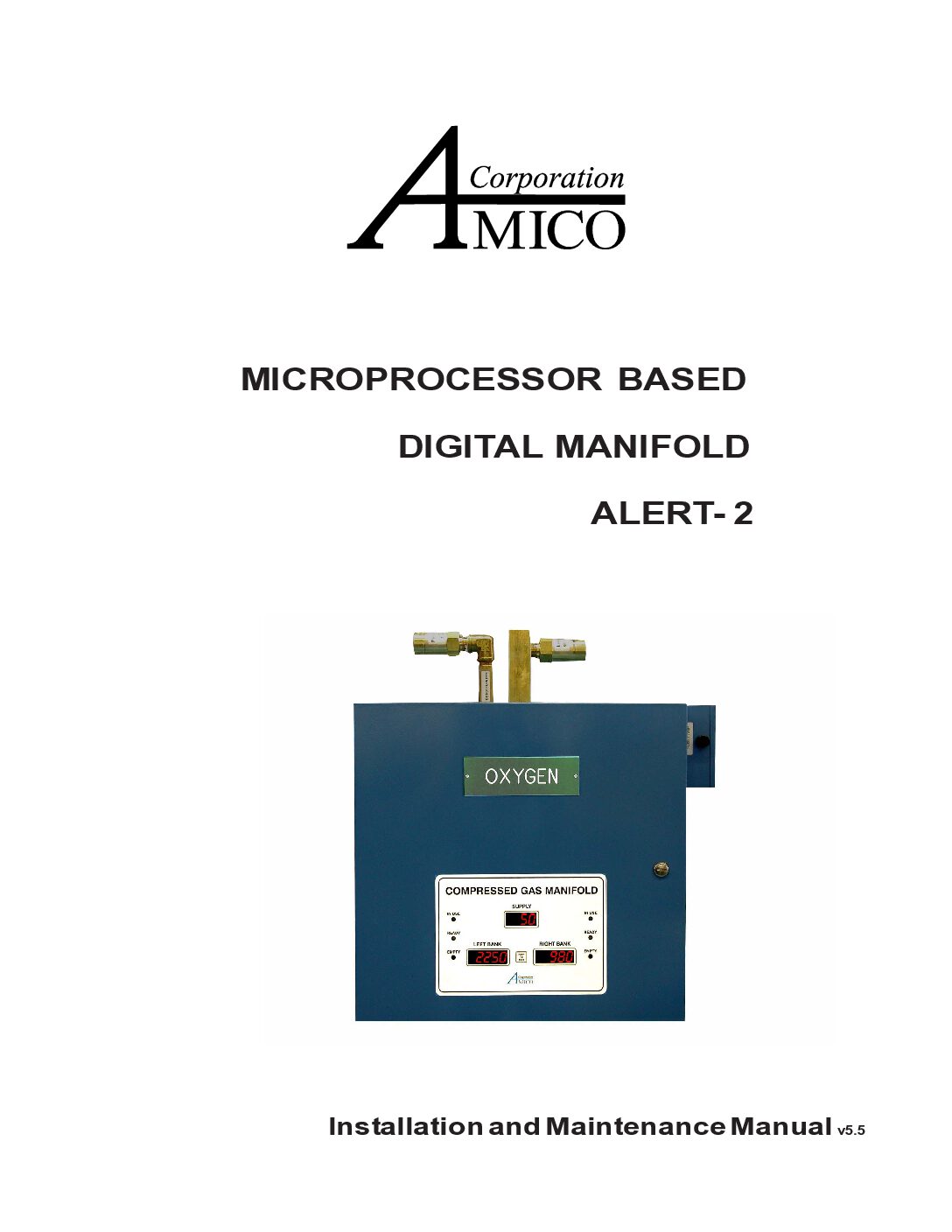

Documents & Manuals: View or Download
Equipment Description
The Amico Digital Alert 2 Manifold is a medical gas cylinder manifold with an integrated digital alarm panel. It provides automatic changeover between cylinder banks and monitors supply pressure with digital readout and configurable alarm setpoints.
Technical Reference
Parts, service kits, and configuration data from the manufacturer's documentation.
| Item | Part Number | Amico P/N | Description |
| 1 | V-M2-SHUTV-L-P V-M2-X-LPV-RK not assigned V-M2-X-HPV-RK | M2-SHUTV-LP M2-X-LPV-RK M2-SHUTV-HP M2-X-HPV-RK | Shuttle Valve Assembly, Low Pressure (all gases except N2) Shuttle Valve Repair Kit, O2, AIR, N2O, CO2 Shuttle Valve Assembly, N2 Shuttle Valve Repair Kit, N2, LQxLQ, LQxHP |
| 2 | V-MXMAN72W300 V-MXMAN72W200 | M-X-MAN-72W-300 M-X-MAN-72W-200 | Operating Pressure Relief Valve, N2 Operating Pressure Relief Valve, O2, N2O, AIR, CO2 |
| 3 | V-MXMAN72W200 V-MXMAN72W075 | M-X-MAN-72W-200 M-X-MAN-72W-075 | Line Pressure Relief Valve, N2 Line Pressure Relief Valve, O2, N2O, AIR, CO2 |
| 4 | 1316 0034 43 V-M2XMAN42ELN 1316 0032 66 | M2-X-MAN-42E-L M2-X-MAN-42E-LN M2-REG700-RK | Line Pressure Regulator Assembly, All Gases Except N2, Left Side Line Pressure Regulator Assembly, N2, Left Side Repair Kit |
| 5 | not assigned 1316 0024 99 1316 0032 66 | M2-X-MAN-42E-R M2-X-MAN-42E-RN M2-REG700-RK | Line Pressure Regulator Assembly, All Gases Except N2, Right Side Line Pressure Regulator Assembly, N2, Right Side Repair Kit |
| 4/5 | 1316 0024 97 | M2-X-MAN-42E | Line Regulator, Left or Right |
| 6 | V-M2-X-MAN-07B V-M2-X-MAN-07C | M2-X-MAN-07B M2-X-MAN-07C | Pressure Transducer, O2, N2O, AIR, CO2, N2 Pressure Transducer, Liquid Manifolds |
| 7 | V-M2-X-MAN-18L V-M2-X-MAN-18R 1316 0024 78 V-M2XMAN18N2L V-M2XMAN18N2R not assigned | M2-X-MAN-18L M2-X-MAN-18R M2-REG250-RK-LP M2-X-MAN-18-N2L M2-X-MAN-18-N2R M2-REG250-RK-HP | Operating Pressure Regulator, All Gases Except N2, Left Side Operating Pressure Regualtor, All Gases Except N2, Right Side Repair Kit, Regulator, All Gases Except N2 Operating Pressure Regulator, N2, Left Side Operating Pressure Regulator, N2, Right Side Repair Kit, Regulator, N2 |
| n/a | V-M-X-MAN-33B | M-X-MAN-33B | Intermediate Check Valve, All Gases |
| n/a | V-M3-LED-CB | M3-LED-CB | Alert-2 LED Circuit Board Assembly |
| n/a | V-M2-X-POWER | M2-X-POWER | Manifold Power Supply |
