O2 Depletion Monitors

O2 Depletion Monitors
Manufacturer: Analox
Category: Alarms

Documents & Manuals: View or Download

Equipment Description

Analox O2 depletion monitors are oxygen-level monitoring devices designed for areas where medical gas cylinders are stored or where gas leaks could displace ambient oxygen. They continuously sample the room atmosphere and trigger audible and visual alarms when O2 levels fall below safe thresholds.

Technical Reference

Parts, service kits, and configuration data from the manufacturer's documentation.


Note: The current monitor comes standard with the digital reading (reference the image on the right).
Misc Parts / Information
ImagePart NumberAnalox P/NDescription
1316 0038 14SA7FLOWINFine Control Valve, 20 liter flow indicator for 12 and 20 liter gas cans
1316 0017 73n/aCO Regulator for GFG Calibration Kit
2205 6035 19SA7FLOWIN17LBrass Regulator w/Fine Control Valve, 17 liter flow indicator for 17 liter gas bottles
*** 1316 0017 73 ***
1316 0035 198000-0069AFlow Adapter, 2-Year Sensor (old style)
2205 6035 158000-0910AFlow Adapter for A50 Fitting
2205 6035 16PO120-651KFlow Adapter, For O2
SA7FLOWINTUBINGTubing
2205 6035 20SA7L170317L-121% O2 in +/- 5% Zero Air
1316 0035 21SA7L17OXCALUSTest Gas Cylinder Kit (includes SA7FLOWIN & SA7201150)
1316 0038 13SA7L171150Calibration Gas, 20 Liter Gas Cylinder, 24% O2
1316 0044 85SA7L1701Calibration Gas, 17 Liter Gas Cylinder, 100% N2
4107 6525 13n/aZero Gas used on existing CO calibration, 20.9% O2, Balance Nitrogen
1316 0041 54SA7L1703*** Replaced with 4107 6525 13 ***
Calibration Gas, 17 Liter Gas Cylinder, 21% O2, Remainder N2
2205 6035 17SA7L17113Test Gas Kit, 1.7% CO2 in N2
2205 6035 18SA7L17114Test Gas Kit, 3.2% CO2 in N2
Ax60 +

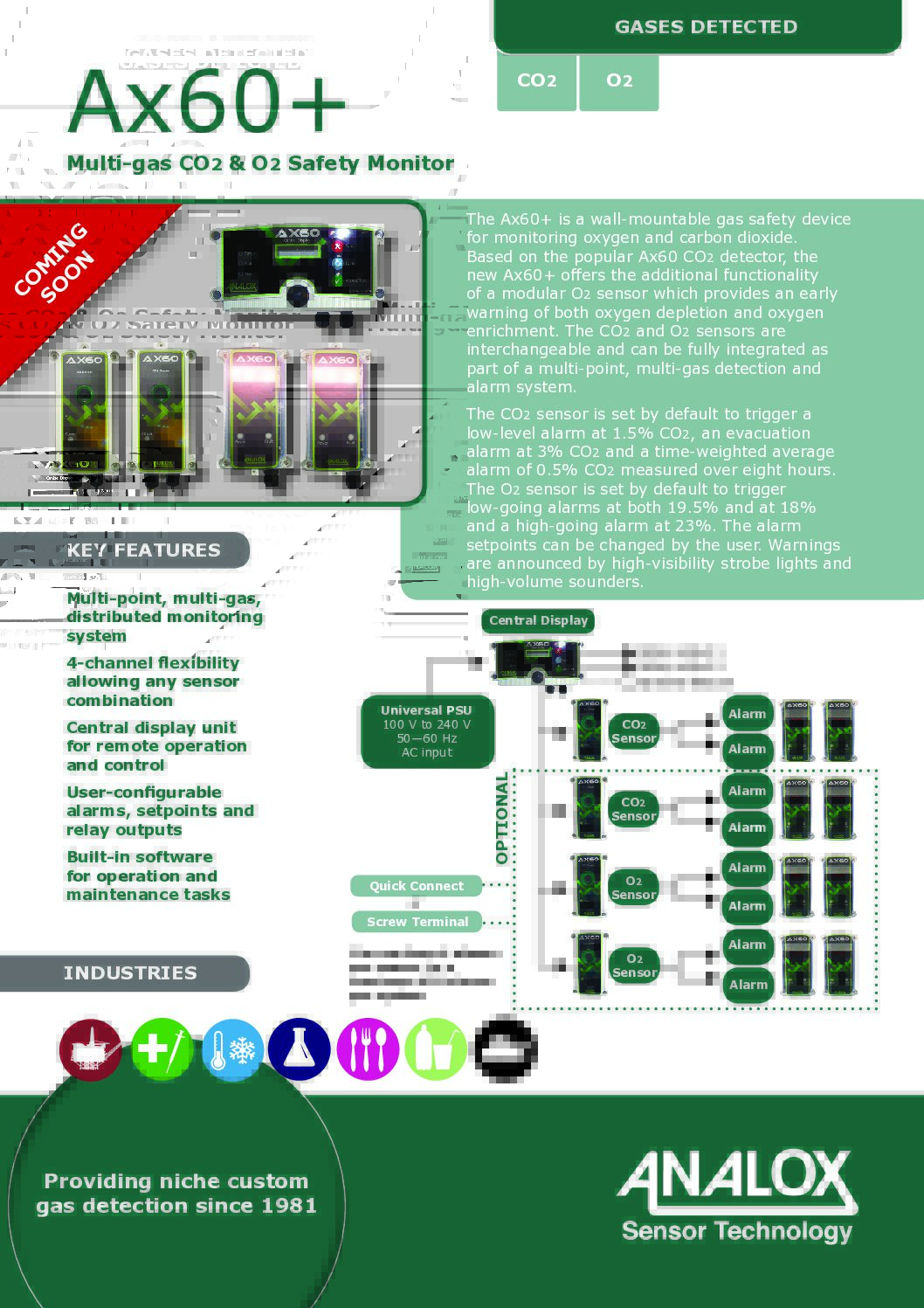

n/aAx60+ Datasheet

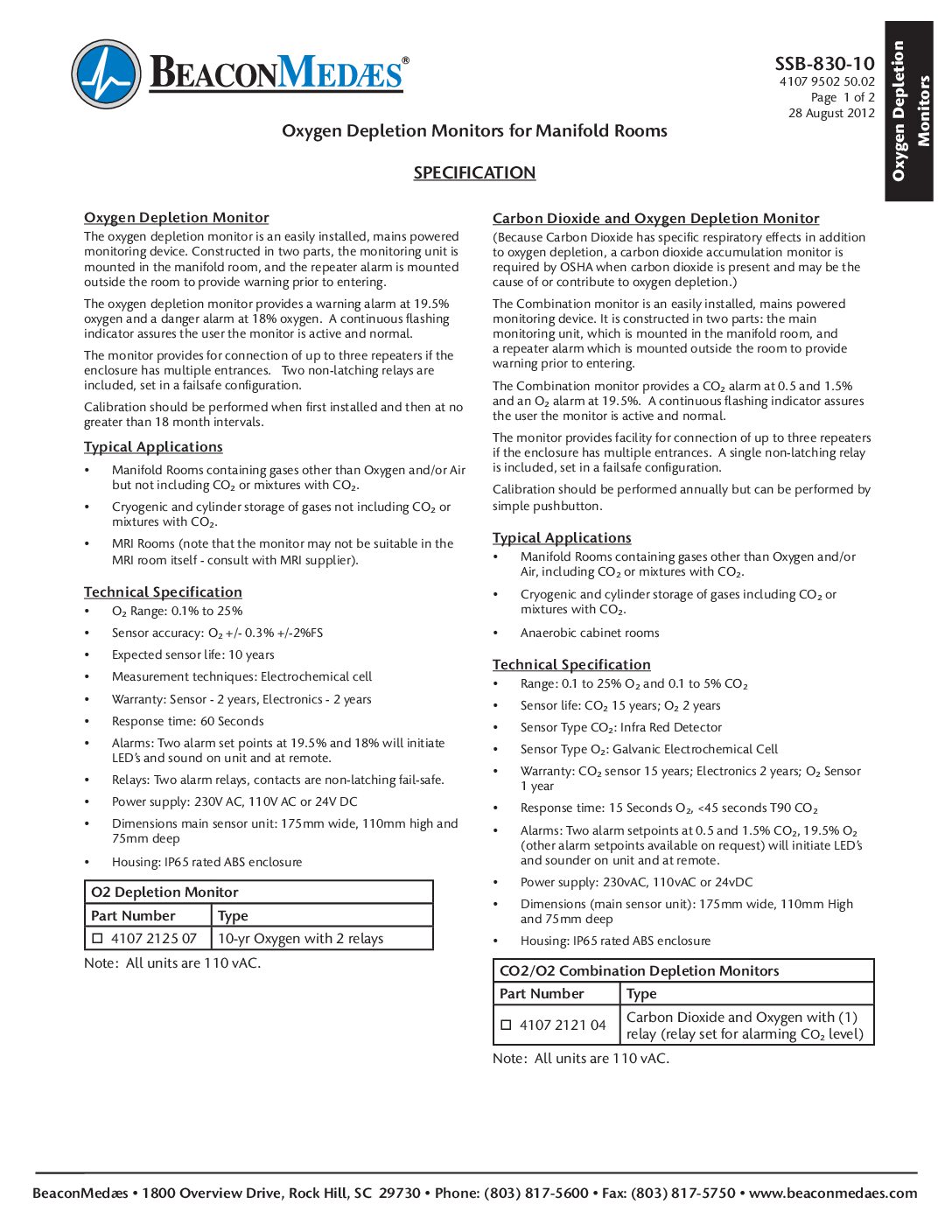

4107 2125 07AX1BK10X56Q2Y16O2NE 10 Year O2 Depletion Monitor, 2 Relay. 110VAC
Built between 08/09/2012 and 03/04/2014
Sensor = 9100-2601/T
Built between 03/04/2014 and 08/09/2016
Sensor = 9100-2601/T
Built between 08/09/2016 and Present
9100-2650/T

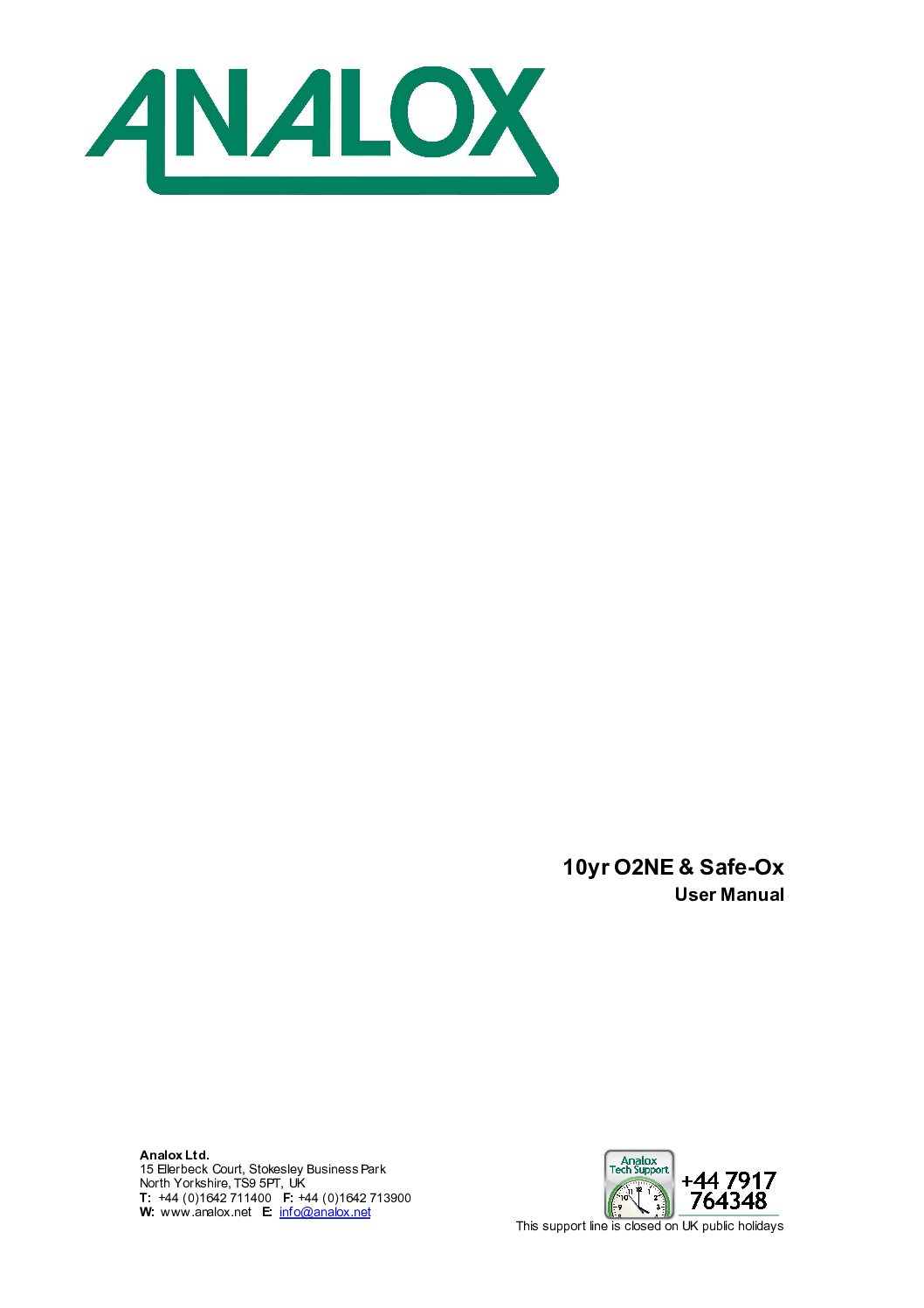

n/aPO120-820-05O2Ne 10 Year O2 Depletion Monitor - User Manual
n/a*Replace Equipment*O2 Sensor - 10 Year
2205 6035 16PO120-651KFlow Adapter, For O2
08/09/2012 through 03/04/2014
1316 0035 198000-0069AFlow Adapter, For O2
03/04/2014 through Present
1316 0017 73n/aCO Regulator for GFG Calibration Kit
4107 6525 13n/aZero Gas for O2NE+ Monitors (4/3/2014 - Present), 20.9% O2, Balance Nitrogen
1316 0038 13SA7L171150Zero Gas for O2NE Monitors (8/9/2012 - 4/3/2014), 24% O2
1316 0044 85SA7L1701Calibration Gas, 17 Liter Gas Cylinder, 100% N2

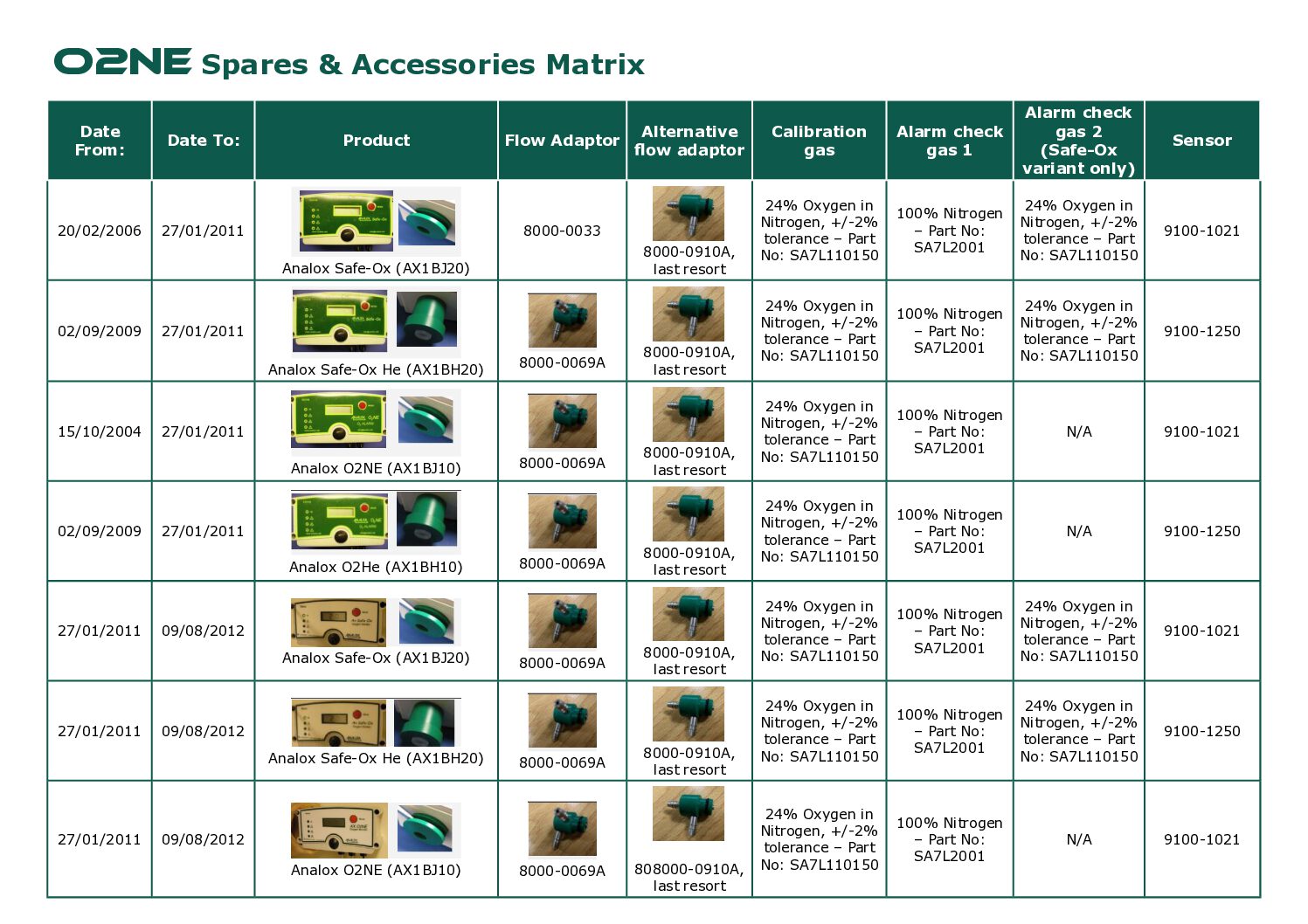

4107 2107 26AX1BJ10X56QXY16O2NE Depletion Monitor, 110VAC (2-year sensor)
Built between 10/15/2004 and 01/27/2011
Built between 01/27/2011 and 09/08/2012

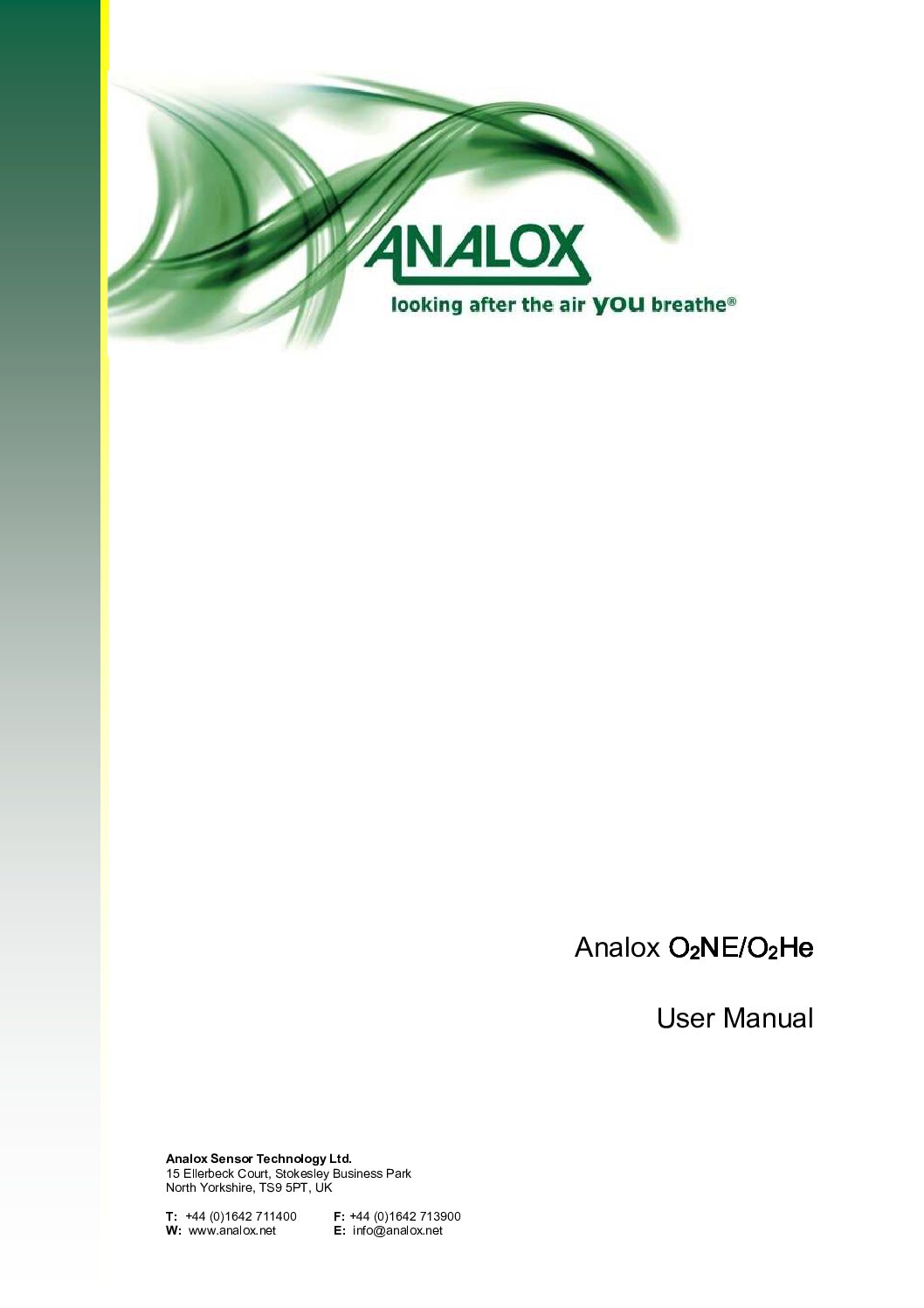

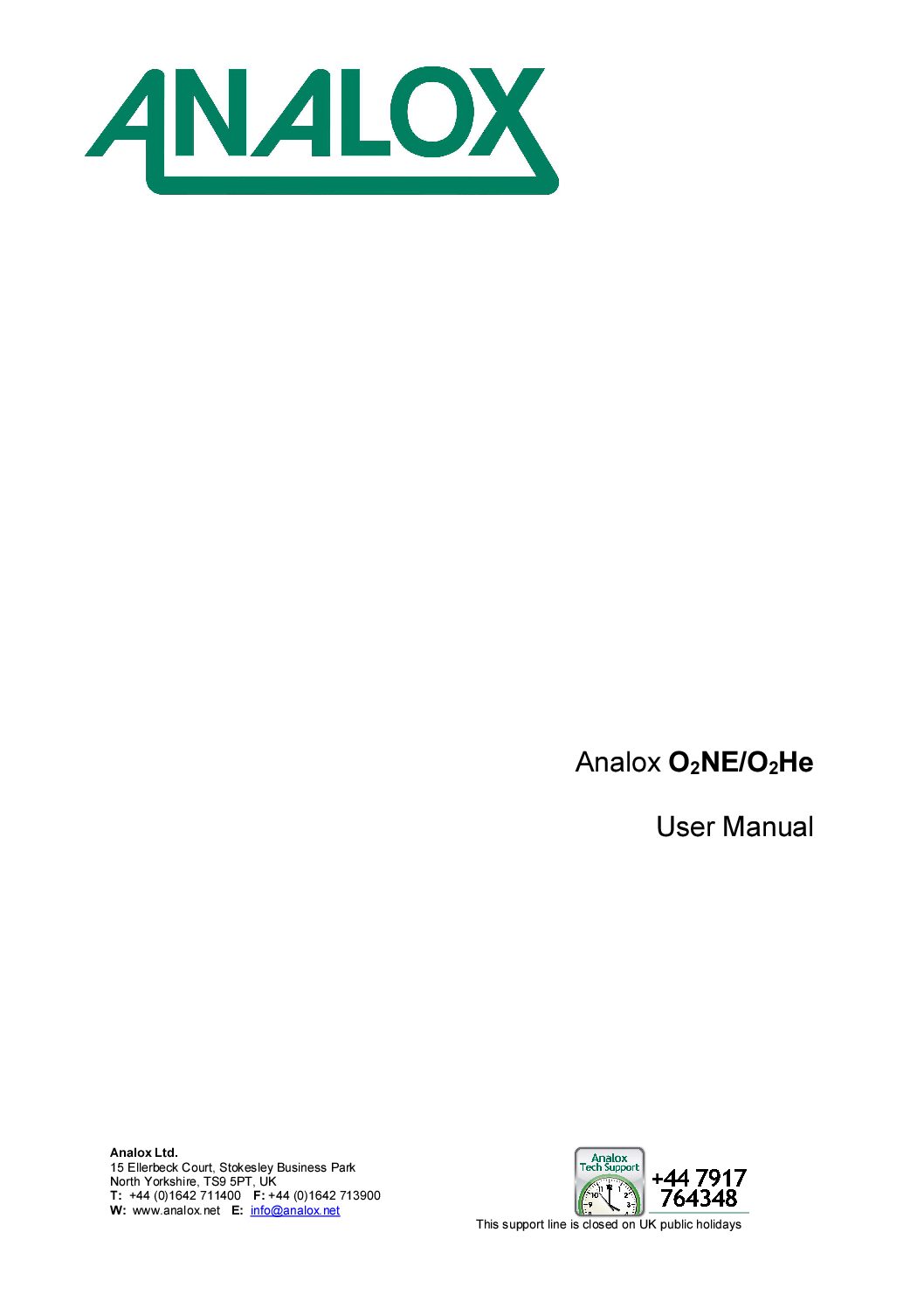

n/aAA1-810-19O2NE/O2He Depletion Monitor - User Manual

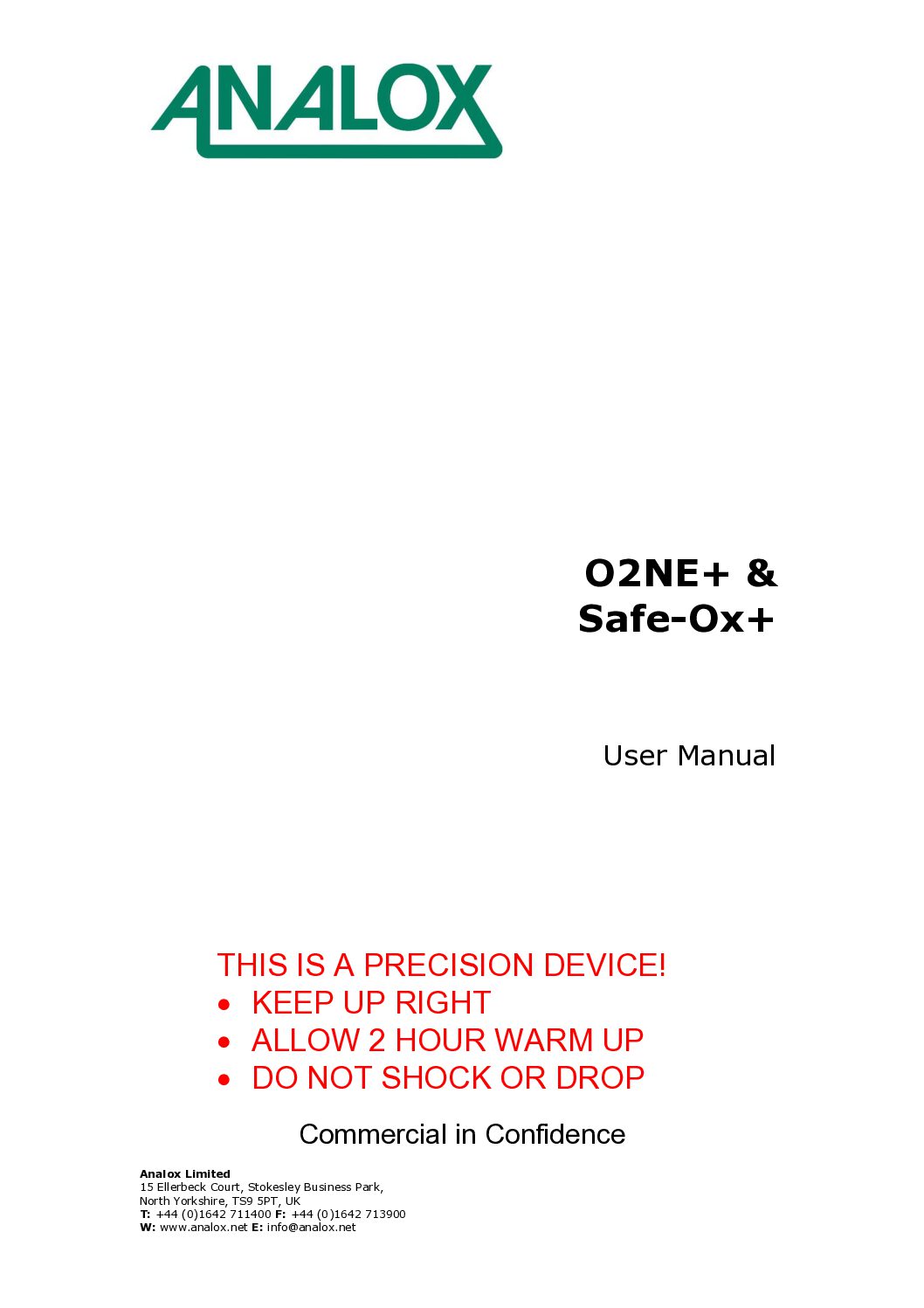

n/aPO120-820-11O2NE+ Depletion Monitor - User Manaul
1316 0035 919100-1021O2 Sensor - 2 Year
1316 0035 198000-0069AFlow Adapter, 2-Year Sensor (old style)
2205 6035 16PO120-651KFlow Adapter, For O2
1316 0017 73n/aCO Regulator for GFG Calibration Kit
1316 0038 13SA7L171150Zero Gas used on existing CO calibration, 24% O2
2205 6026 741316-REP1CXX01Daisychain Repeater, O2NE QC
4107 2121 09AX1BH10X56Q2Y16O2HE Depletion Monitor w/2-Relays, 110VAC
Built between 08/02/2009 and 01/27/2011
Built between 01/27/2011 and 08/09/2012
n/aAA1-810-19O2NE/O2He Depletion Monitor - User Manual
1316 0035 929100-1250O2 Sensor - Year
1316 0035 198000-0069AFlow Adapter, For O2
1316 0017 73n/aCO Regulator for GFG Calibration Kit
4107 6525 13n/aZero Gas used on existing CO calibration, 20.9% O2, Balance Nitrogen
4107 2121 04A50BC07X56QY1X150M Combo CO2 & O2 Depletion Monitor w/1 Relay, 110VAC
4107 2107 27A50BC07X56QYXX150M Combo CO2 & O2 Depletion Monitor, 110VAC
n/an/aA50 O2/CO2 Monitor - Specification Data

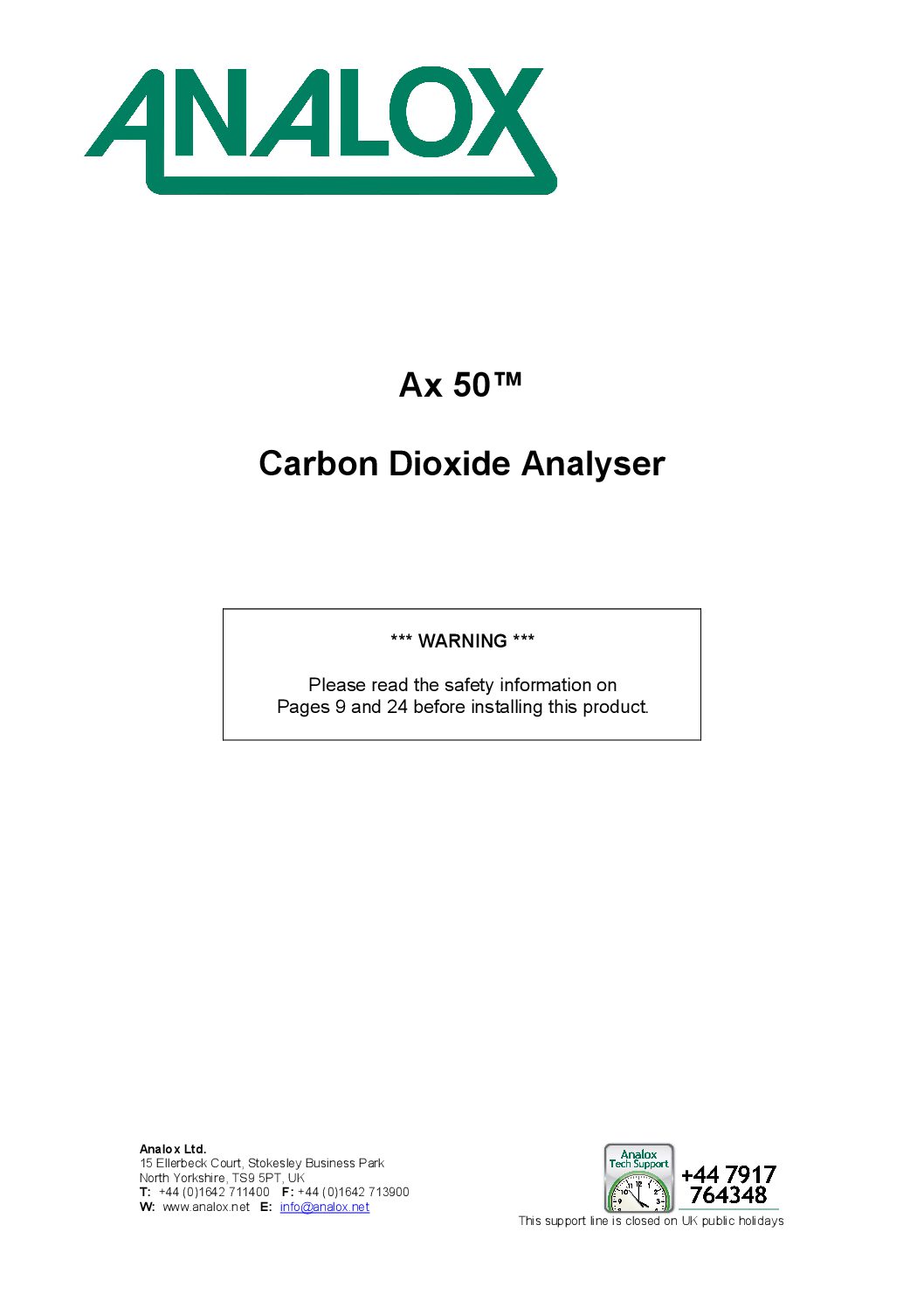

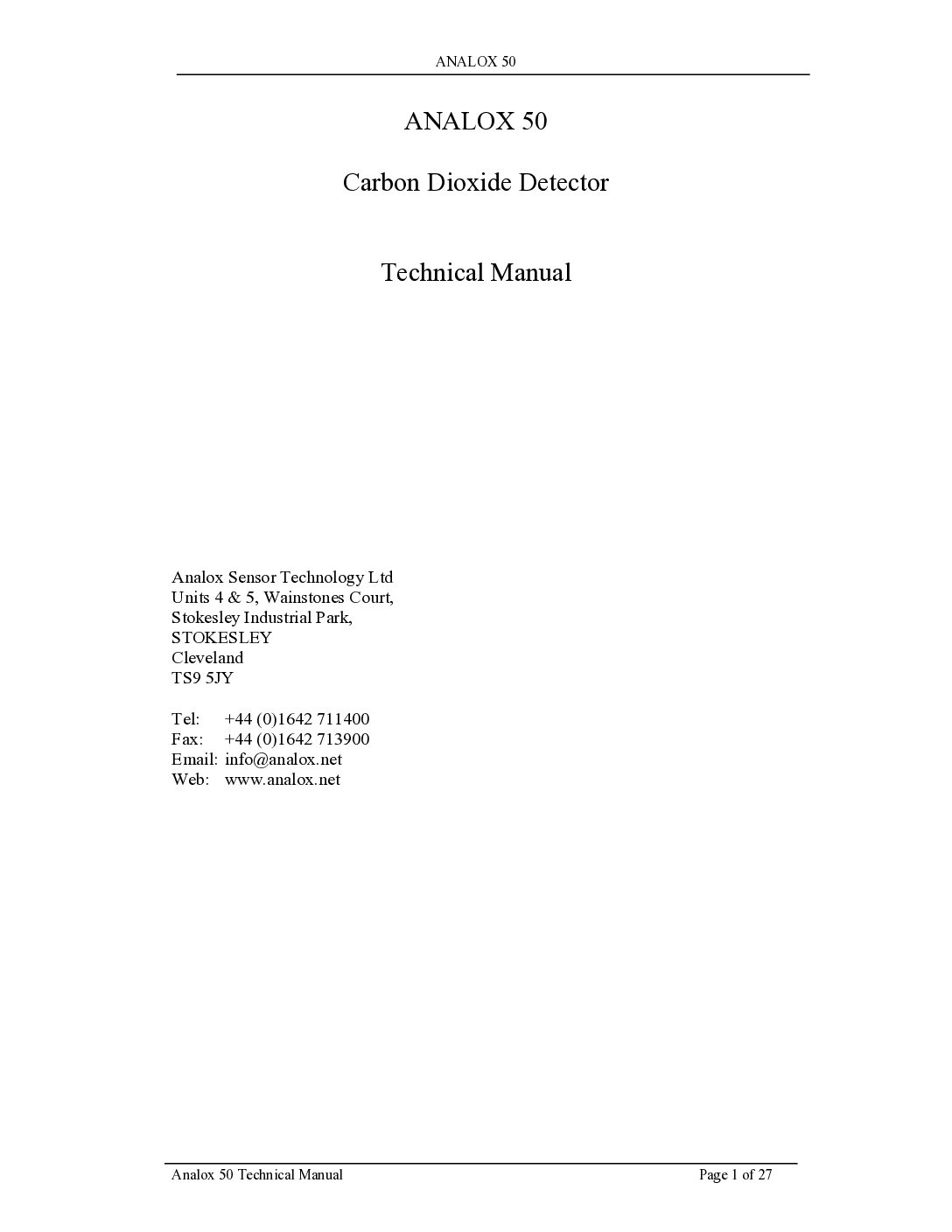

n/an/aA50 O2/CO2 Monitor - Technical/Calibration Manual
n/an/aA50 O2/CO2 Monitor - User/Installation Manual

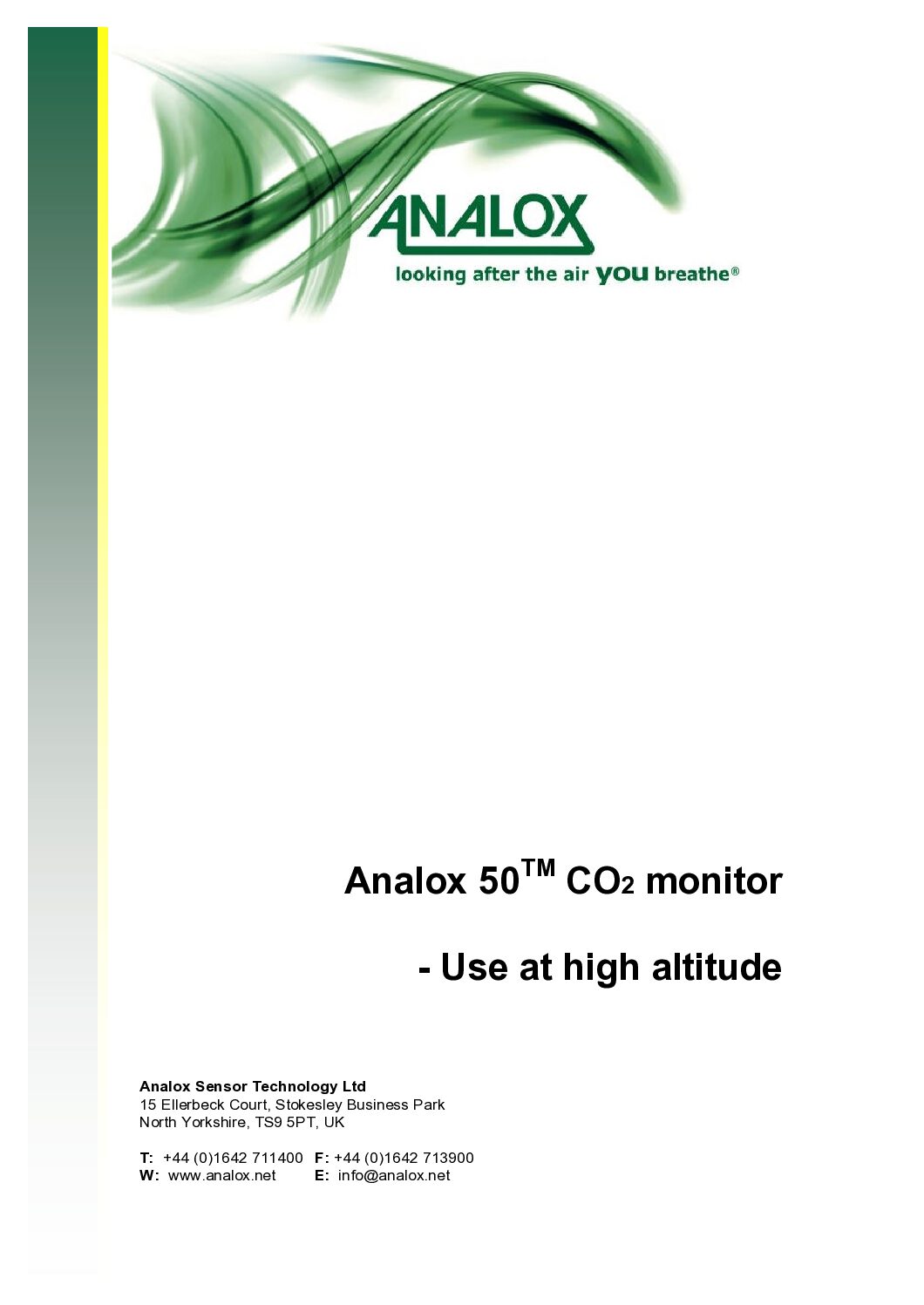

n/an/aA50 O2/CO2 Monitor - Calibration for High Altitude
1316 0035 919100-1021O2 Sensor - 2 Year
2205 6035 158000-0910AFlow Adapter for A50 Fitting, 2 Required for Calibration (plumb in series)
1316 0017 73n/aCO Regulator for GFG Calibration Kit
4107 6525 13n/aZero Gas used on existing CO calibration, 20.9% O2, Balance Nitrogen
n/a*Replace Equipment*CO2 Sensor - 15 Year
1316 0045 57REP50CYX01Daisychain Repeater, A50 CO2/O2 Combo
